ABB Ability™ Symphony® Plus MR Series (Melody Rack)

Traditionally, production facilities maintained

many controller subsystems, each of which

had to meet specific plant needs. However,

as business goals have changed, using a scalable

controller platform that possesses multi functional capabilities, adapts to changing

requirements, and maximizes openness and

availability, is paramount to success.

ABB Ability Symphony Plus MR Series (Melody

Rack) controllers, communication interfaces

and I/O modules meet the most challenging

requirements in each of these areas.

Thanks to their modular design, MR Series

controllers can be adapted to a wide variety

of plant types and sizes. Supported by an

efficient engineering workbench, MR Series

control based solutions contribute to a higher

return on assets by improving overall production

control, maximizing process availability, and

minimizing maintenance.

Features and benefits

Flexible, cost-effective assembly

Decentralized, DIN rail-mounted controller

assembly can be combined with local or

remote I/Os.

Comprehensive I/O system

A wide range of local and remote I/O is available

with integrated intrinsic safety design and

transmitter power supply options. Features

such as sequence of events (SOE) time stamping

(1 ms resolution), monitoring, filtering, as well

as HART, PROFIBUS, Modbus RTU and TCP

communication are supported with a wide range

of I/Os such as Melody Rack local I/O, ABB’s S800

and S900, and other remote PROFIBUS I/Os.

Distributed capability

ABB’s S800 and S900 remote I/O and Melody

Rack local I/O are connected via high-speed serial

communication buses. Local I/O offers a high

packing density to reduce mounting space to

a minimum, whereas remote I/O fully supports

distributed system configurations.

Efficient field device integration

Standardized field device tool/device type

manager (FDT/DTM) interfaces enable plug and-play integration of field devices.

Easy to configure

Module configuration and service is executed

using S+ Engineering for Melody and its unrivaled

library of fully tested and field-proven powerful

function blocks.

Inherent redundancy design

System-integrated redundancy options for power

supply, hardware and communication networks

provide the highest level of availability.

High performance modular network

Symphony Plus MR Series based control systems

uses a redundant, high-speed serial communi cation network with inherent capability for

remote communication. The network is

easy to expand without requiring routing

configuration.

Overview

The MR Series includes a series of compact DIN

rail mounted controllers, a wide range of I/O

modules and modern, standardized fieldbus

interfaces. These modules offer all the

functions required for data acquisition and signal

conditioning, as well as powerful open loop

and closed loop control, sequence control and

monitoring. All process management

tasks are executed on the basis of integrated

complex control strategies. Without the need

for configuration, The MR Series inherent

redundancy design – including integrated

redundancy concepts for power supply,

communication and I/O – provides the highest

level of availability.

Key features include:

• A wide range of I/O interfaces with optionally

integrated intrinsic safety (Ex i) design and

transmitter power supply. Features such as

time stamping with a 1 ms resolution,

monitoring, filtering and HART communication

are implemented directly in the I/O modules

• PROFIBUS interfaces provide connections to

ABB’s S800 and S900 remote I/O stations in

Ex and non-Ex versions, as well as other

PROFIBUS devices

• IEC 61850 interface to intelligent electronic

devices (IEDs) for the integration of electrical

subsystems

• Modbus RTU and TCP interfaces provide

connections to 3rd party devices

—

02 Functional overview of MR Series capabilities

• The MR Series control network uses a

redundant, high-speed serial communication

network with inherent capability for remote

communication. The network is easy to handle,

without requiring routing configuration

• Flexible mounting alternatives such as cabinet,

DIN rail or 19” rack mounting. All three can be

combined in one project. This allows optimal

adaptation to all plant structures and supports

flexible upgrades of existing installations

• An unrivaled high packing density in the

system cabinets saves installation space

• Controller time synchronization based on

a time precision of 0.5 msec

• Sequence of events (SOE) time stamping

with a resolution of 1 ms is implemented

in the controller and local I/O module level

The control subsystem includes flexible

communication options to I/O and intelligent

field devices via system buses. HART as well as

PROFIBUS information, including configuration

and diagnostic information, is communicated

via the control network. This information is

available to system controllers and system

level applications such as asset optimization

and device management. The comprehensive

bus concept of the system controller allows

for the easy integration of HART, PROFIBUS,

Modbus RTU and TCP field devices as well as

of PROFIBUS and IEC 61850 electrical assets.

The MR Series functional capabilities are

summarized in figure 2.

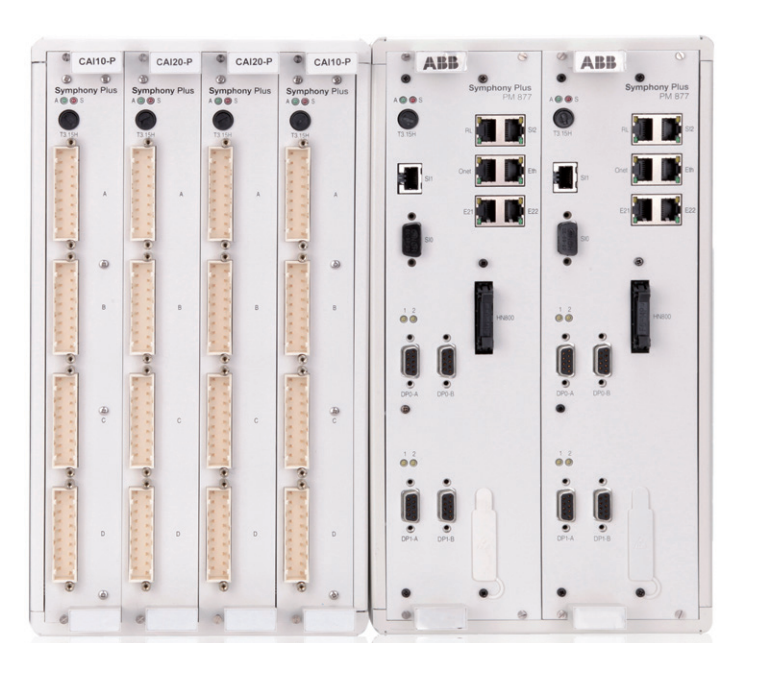

Scalable control stations

MR Series control stations are conveniently

set up according to project needs and are made

up of modular controllers and I/Os. Depending on

the scope of the automation task, the controller

is extended with I/O modules or communication

interfaces.

The controllers are connected via the control

network to ensure reliable, high speed and

system wide real-time signal exchange with

other control stations, with S+ Operations,

with system level applications and with

S+ Engineering for Melody.

Each node on the control network operates

autonomously. Acting as its own communication

manager, the system requires no traffic directors.

The controller’s associated I/O modules are

connected using the high-speed redundant serial

field network or PROFIBUS DP (DPV1 as well as

DPV2).

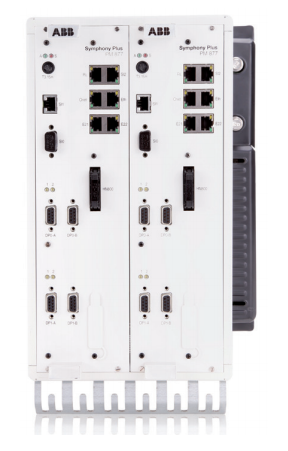

MR Series controllers

Melody controllers are designed for maximum

computing power and modular scalability.

Each controller can handle up to 2,000 analog

and/or digital I/O points from the local I/O, and

additionally 6,000 analog and/or digital I/O

points connected via PROFIBUS DP. In addition

to the standard tasks such as signal processing,

loop and logic control, the MR Series controller

also performs complex computations such as

sequential, batch and advanced controls.

Diagnostic routines periodically check the

hardware and firmware integrity. Any abnormal

conditions are automatically routed to the HMI

or other alarm or message collecting software.

The redundant design provides an automatic

one- to-one backup, thus ensuring high system

availability. If the primary controller is faulty, the

hot standby controller, executing the same

control strategy and process data, immediately

takes over control.

MR Series controller key features include:

• Large variety of powerful functions available

in tested libraries

• Easy configuration, service and commissioning

with S+ Engineering

• Inherent redundancy without configuration/

wiring costs

• Real-time multitasking operating system

• Up to 16 different cycle times

• Comprehensive monitoring and diagnostic

functions

• Interface for radio clock connection

• Bumpless downloadable firmware and

application programs (no EPROMs)

• Cyber security proven

• PM 877 without battery

The range of available function blocks extends

from simple control and individual drive functions

to complex recipes based on S88 and NAMUR

using sequential function charts based on IEC

61131-3.

Function blocks may also be used to set up

customer-specific libraries in S+ Engineering

for Melody

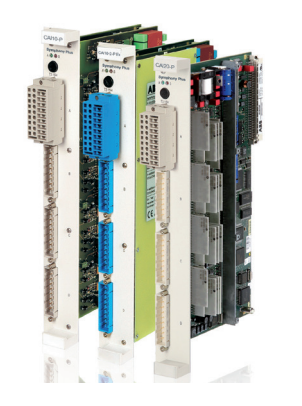

MR Series process interface

modules

The controller sets new standards for user

convenience with industrial process interface

modules. A large variety of I/O modules can

be combined to form an optimal automation

solution.

Main components of the MR Series control

station are the I/O modules and a high-speed,

redundant serial field network. Together they

operate as a subsystem dedicated to the

controller.

Local I/O types

The following local I/O types are available:

• Analog input (CAI) Ex and non-Ex

• Temperature input (CTI)

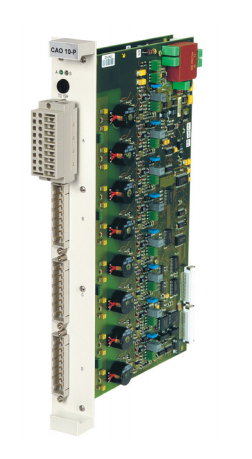

• Analog output (CAO) Ex and non-Ex

• Digital input (CBI) Ex and non-Ex

• Digital output (CBO)

• Control modules (CAC/CBC)

• Frequency input (CFI)

• Serial communication interfaces (CCF)

Redundant modular power supply is an option.

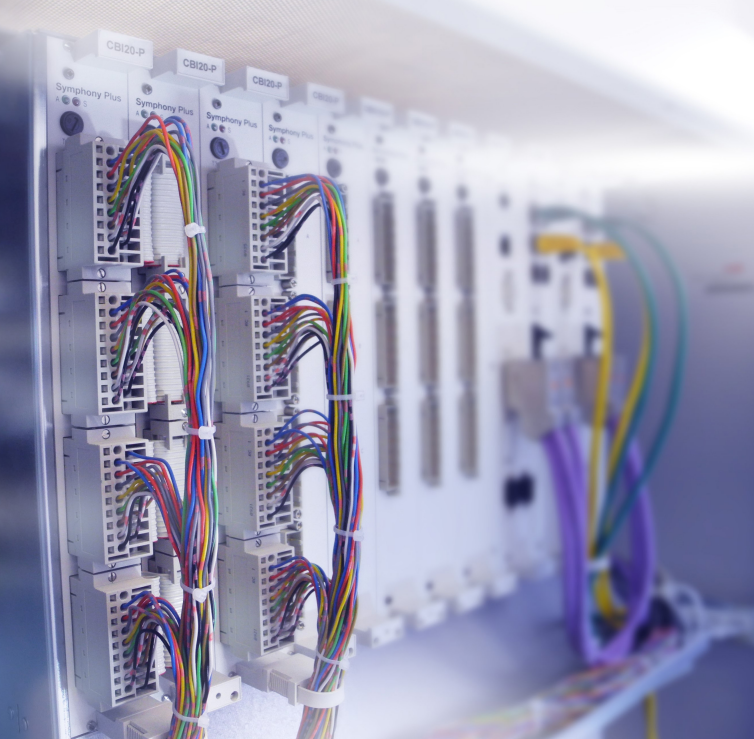

All process signals are accessible from the front

panel. The field cables are connected to cable

termination units. For I/O redundancy, associated

termination units are used. With these

termination units, it is possible to replace

defective modules without disconnecting the

field cable and without field interruption, thus

providing maximum availability.

Local I/O features

• A processor in each I/O module provides

advanced functions such as event detection

and alarm generation, time stamping with 1 ms

resolution and system diagnostics

• Downloadable firmware

• Local I/O modules provide integrated

transmitter power supply, integrated intrinsic

safety and HART communication

• HART variables can be used like the analog

values within function plans

• Distribution of I/O modules reduces cable

and installation costs. A high-speed serial

communication bus (Fnet) that is designed

for long distances combined with flexible

cabinet mounting options enables both

centralized and remote I/O locations

• Simplified user configuration eliminates

the need for calibration or onboard jumper

settings

• Maximum availability through inherent

redundancy design including redundant

communications via Fnet and optionally

redundant I/O modules

• All local I/O can be reconfigured and extended

online with new I/O module while in full normal

operation

• Each input or output can go to a pre-defined

value in case of disturbed values or

communication loss

Control modules

The following control I/O modules are used for

closed loop and open loop control especially in

the power generation industry.

The drive control (CBC 11-P) modules are used for:

• On/off actuators

• Motor drives

• Solenoid valves

• Hardwired individual control stations

The closed loop output (CAC 10-P) is used for:

• Continuous controller

• PI step controller

• Current signal output to I/P converter for

pneumatic actuators

• Three-position step controller with PI behavior

• Three-point switch as positioning circuit, or

• Hardwired individual control station

Both modules operate independently of the

controller.

PROFIBUS interface

The MR Series controller integrates PROFIBUS-DP

communication, thus enabling system level

engineering of devices and device communications. In addition to communication with the

system engineering environment, fault and

diagnostic messages are displayed at the

S+ Operations workplace or other ABB operator

console.

Features include:

• PROFIBUS-DP (DPV0, DPV1 and DPV2)

• Two PROFIBUS lines per controller

• Redundancy of each PROFIBUS line

• Transfer rate adjustable in steps from

9.6 kbit/s to 12 Mbit/s

• PROFIBUS-DP/PA converter

Modbus RTU and TCP interface

A local interface card provides Modbus RTU

where the MR Series controller provides Modbus

TCP on board.

Features of Modbus TCP:

• 128 Modbus TCP server per controller

• 16 Mobus TCP slaves per controller

上一篇： ABB Advant......

下一篇： ABB Data S......

ADLINK HPCI-14S12U - Industrial Control Backplane 12PCI Backplane PCI-14S Passive Backplane
ADLINK PCIe-GIE74C - image acquisition card 4-CH GigE Vision PoE+ Frame Grabber
ADLINK PCI-8164 - control card 4-Axis Advanced Motion Controller Board
ADLINK PCIe-U304 - 4 Port USB3 PCIe Frame Grabbers USB Screw Hole Card
ADLINK PCI-9112 - Multi-Function Data Acquisition Card DAQ Card
ADLINK PCI-7432 - 51-12013-0A50 4-CH Isolated Numérique I/O PCI Cartes Digital I/O Card
ADLINK PCA-6106P3-0C1 REV.C1 - backplane 6-Slot Passive Backplane Board
ADLINK PCI-7224 - 24-CH Opto-Isolated Digital I/O PCI Board
ADLINK CPCI-7433R(G) - Digital Input Board Rear I/O CompactPCI Card
ADLINK EBP-13E4 - 51-46703-0A30 Industrial PC Backplane Passive Backplane
ADLINK PCIE-HDV62 - Image acquisition card High Definition Video Frame Grabber
ADLINK EBP-13E4 - 51-46703-0A30 Industrial Backplane Board Passive Backplane
ADLINK 90111-B1 / CPCI-6770 - PCB CPU MODULE CompactPCI Single Board Computer
ADLINK PCI-7248 - DATA ACQUISITION PCI CARD 48-CH Parallel Digital I/O Board
ADLINK PCI-7230 - 51-12003-0a50 board PCI7230 32-CH Isolated Digital I/O Card
ADLINK PCI2A000CB - 51-20000-0B30 Multi-Function DAQ Card Baseboard
ADLINK PCI-8134-005 - 4-Axis Motion Controller Card
ADLINK PCI-7224 - 24-CH Opto-Isolated Digital I/O PCI Card
ADLINK PCI-7434 - 64-CH Isolated Digital Output Card
ADLINK PCI-8132 - motion control card 2-Axis Servo & Stepper Controller
ADLINK PCI-8134 - Motion Controller PCI Card 4-Axis Controller Board
ADLINK PCI-8164 - Motion Control Card 51-12406-0A40 4-Axis Controller
ADLINK 51-12001-0C20 - Circuit Board Data Acquisition Interface Module Hardware
ADLINK NuPR0-840 - industrial control motherboard Full-Size PICMG CPU Board
ADLINK PCI-7444 - 51-12023-0A10 card 128-CH Isolated Digital Output Board
ADLINK PCI-1612B - data acquisition card 4-Port RS-232/422/485 Serial Communication Card
ADLINK PCI-6208V 009 - 8/16-CH 16-Bit Analog Output Cards PCB-I-E-482=6BX3
ADLINK NUPRO-935A/LV - industrial control motherboard Full-Size PICMG SBC Board
ADLINK PCI-9114DG - Multi-Function DAQ Card Data Acquisition PCI Card
ADLINK ACL-7130 - Data acquisition card Isolated Digital I/O Board
ADLINK ABX-6300D-4E1-BP - board ABX6300D4E1BP Video Interface Expansion Card
ADLINK CPCI-6940 - CPCI-6940/D1539/M16-0(EA)-000E 6U CompactPCI Processor Board
ADLINK NuPRO-760 - industrial control motherboard Half-Size PICMG SBC CPU Board
ADLINK IMB-M42H (G)-0020 - industrial control motherboard LGA1155 Micro-ATX Mainboard
ADLINK RTV-24 / PCI-MP4S - 51-12519-1C30 4-Channel Real Time Video Capture Board
ADLINK PCI-8134 - 4-Axis Servo & Stepper Motion Controller Card
ADLINK MXC-6101D - V.PC000.002.ST.00 Box PC Configurable Embedded Computer
ADLINK PCI-8134A - 51-12421-0A10 Motion Control Card 4-Axis Controller Card
ADLINK DIN-100S / DIN-100SA1 - Technology SCSI-II TB 100-PIN Terminal Block Board
ADLINK DIN-812M001 / DIN812M001 - 51-14034-0A1 51140340A1 Terminal Module Breakout Interface
ADLINK PCI-8164 - Servo motion control 4-Axis Advanced Controller Card
ADLINK PCIe-GIE64 - Acquisition card GigE Vision PoE+ Frame Grabber
ADLINK M-302 - Industrial control motherboard ATX PC Board Mainboard
ADLINK PCI-8134 - Motion Controller PCI Card 4-Axis Controller Board
ADLINK PCI-RTV24 - Image capture card Analog Video Frame Grabber
ADLINK PCI-8102 - Motion control card 2-Axis Servo & Stepper Controller Board
ADLINK PCI-9112 REV.B1 - Card Multi-Function Data Acquisition Card
ADLINK HSI-DI32-M-N / HSL-TB32-M-DIN - Discrete I/O MODULE Distributed Automation Module System
ADLINK PCI-7296 - IO card REV.A3 96-CH Parallel Digital I/O Card
ADLINK DIN-814P-A4 / 814Y - terminal board Motion Control Interface Block
ADLINK DIN-814P-A4 - 51-14056-0A10 PCB-I-E-2736=ZA01 Screw Terminal Board Breakout
ADLINK M-322 - motherboard Industrial Control Computer Mainboard
ADLINK NUPRO-406 REV:B1 - industrial control motherboard Full-Size PICMG CPU Board
ADLINK AMP-204C - card DSP-Based 4-Axis Advanced Pulse-Train Controller
ADLINK HPCI14S REV.B1 - industrial computer baseboard 14-Slot Passive Backplane
ADLINK PCI-7250 - 8-CH Relay Output & 8-CH Isolated DI PCI Card
ADLINK EBP-13E2 - baseplate Passive Backplane Industrial Computer Chassis Board
ADLINK LPCI-3488A - PCI-GPIB card 51-12801-0A30 acquisition card IEEE-488 Interface Board
ADLINK PCI-6216V-GL - 51-12201-0C30 16-CH 16-Bit Voltage Analog Output Card
ADLINK ACL-8454 - 16-CH Isolated Digital I/O & 4-CH Counter Card
ADLINK HPCI-9S7U - backplane Passive Backplane Compatible with NuPRO-A301 852 841 842
ADLINK DAQ-2010-007 - Simultaneous-Sampling Multi-Function Data Acquisition Card
ADLINK MP-C154 - 51-64205-0A10 Motion Control Card 4-Axis Controller Board
ADLINK MXE-202/mSSD16B/WiFi-BT - Matrix Rugged I/O Platform Embedded Fanless Computer
ADLINK CM-920-R-17 - PC/104-Plus Single Board Computer Module Intel Celeron M
ADLINK PCI-7250 NSMP - 8-CH Relay Output & 8-CH Isolated DI Card
ADLINK PCI-8164 - 4-Axis Motion Controller PCI Card W/ Cable and Breakout Box
ADLINK EMX-100 - Ethernet-based 4-axis Motion Controllers Distributed Motion Module
ADLINK PCI-8134A - Press control card 4-Axis Motion Controller Board
ADLINK M-845EG REV:3.2 - industrial motherboard Pentium 4 Socket 478 Micro-ATX
ADLINK PCI-9114A Rev A2 DG - card High-Resolution Multi-Function Data Acquisition Board
ADLINK IEC-915GV - REV 1.1 Industrial motherboard Socket 478 CPU Board
ADLINK PCI-9111DG(G) - Data Acquisition Card Multi-Function DAQ Card
ADLINK HPCI-15S10 REV:B2 - Industrial computer base plate Passive Backplane Board
ADLINK NuPR0-840 / NuPR0-840DV - industrial control motherboard Full-size PICMG CPU Board
ADLINK RTV-24 / PCI-MP4S - 51-12519-1C30 4-Channel Real Time Video Capture Board
ADLINK NUPRO-780 - industrial control motherboard Pentium III Single Board Computer
ADLINK PCI-7296 - 0050 card 96-CH Opto-Isolated Parallel DIO Card Set
ADLINK NUPRO-780 - industrial control motherboard PICMG Full-Size SBC
ADLINK PCI-7248 - 51-12006-0A3 002 Pci 7248 48-CH Parallel Digital I/O Card
ADLINK PCI-7230 - 32-CH Isolated Digital I/O Card
ADLINK AMP-204C - motion control card 4-Axis Advanced Controller Board
ADLINK PCI-1714UL - Card Ultra High-Speed 4-CH Simultaneous Sampling DAQ
ADLINK NuPRO-E330 - industrial computer equipment motherboard PICMG 1.3 SHB SBC
ADLINK AMP-204C - DSP-Based 4-Axis Advanced Pulse-Train Motion Controller Module
ADLINK PCI-7256 - 001 51-12206-0A2 REV.A2 LPCI-7256 16-CH Latching Relay Output Card
ADLINK ND6050 - NUDAM DIGITAL I/0 MODULE Distributed I/O Unit
ASEM BM100 - Box PC Embedded Fanless Industrial Computer
ADLINK PCI-7250 - PCI Acquisition Card 8-CH Relay Output & Isolated DI Board
ADLINK PCI-8164 - Servo motion control 4-Axis Controller Card
ADLINK NuPRO-A40H - Industrial Motherboard 51-41807-1A30 OSP LGA1155 H61
ADLINK ADMAX X300 SERVER - 51066010-0A30 motherboard Multi-Processor Mainboard
ADLINK CMe-GIE62+ - 51-32903-0A30 control card PC/104-Plus GigE Vision Frame Grabber
ADLINK NUPRO-780 - industrial control motherboard Full-Size PICMG SBC CPU Board
ADLINK ETX-AT-N270-18/GKTEL - 51-71111-OB10 motherboard ETX CPU Module Board
ADLINK DIN-812M - interface module Terminal Block Connection Board
ADLINK IMB-M42H - industrial control motherboard LGA1155 Micro-ATX Mainboard
ADLINK PXIS-2508 - 8-slot 3U PXI Instrument Chassis Power Hardware Assembly
ADLINK AMP-208C - Motion Control card DSP-Based 8-Axis Pulse-Train Controller
ADLINK PCI-9111 / PCI-9111DG - Multi-Function Data Acquisition Card DAQ Board
ADLINK IEEE-488 GPIB card - Bus Interface Controller Communication Board
ADLINK RTV-24 - 51-12519-1C30 image acquisition card Video Frame Grabber Card
ADLINK TB-24P/24-01 - Board 24 Way Screw Terminal Breakout Board
ADLINK HSL-DI16DO16-DB-NN - 51-23015-0A40 Distributed Discrete I/O Module Set
ADLINK PCI-7442 - switch quantity card data acquisition card 64-CH Isolated Card
ADLINK ACL-7130 REV. B2 - industrial control capture card Isolated Digital I/O PCI Card
ADLINK PCI-6S / PCI6S - Backplane 6-Slot Passive Backplane Chassis Board
ADLINK ACL-8113A - card Isolated Digital Input Card
ADLINK CPCI-6208V-003 - board cPCI CompactPCI 8-CH Analog Output Card
ADLINK DIN-100S-01(G) - SCSI 100-Pin Terminal Block Interface Board
ADLINK PCI-7433 - Isolated Digital Input Card 64-CH
ADLINK PCI-9812 - Synchronous sampling analog input card High-Speed DAQ Board
ADLINK PCI-7434 REV.B1 - PLOTECH PCB-I-E-1182=6EX2 64-CH Isolated Digital Output Card
ADLINK PCIe-RTV24 - 51-18016-0A20 4-CH Real-Time Video Capture Card PCIe Frame Grabber
ADLINK PCI-8144 / PCI-8144N - Motion control card 4-Axis Stepper Motor Controller
ADLINK DIN-68S-01 - terminal board 68-Pin Connector Terminal Block
ADLINK MP-C154 - Motion control card 4-Axis Advanced Controller Card
ADLINK PCI-7248 (G) - Motherboard 48-CH Parallel Digital I/O Card
ADLINK MXE-1301(G) - Intel Atom D2550+NM10 MXE 1300 Series 93-4130-0030 Embedded Computer
ADLINK PRO-841 Rev 2.0 / PRO-060907000670 - CPU 2.26GHz & RAM Industrial PC Board
ADLINK NuPRO-E330 - Industrial Motherboard System Host Board PICMG 1.3 SHB
ADLINK EBP-13E2 - Passive Backplane Industrial Chassis Baseboard
ADLINK PCI-8154 - 4-axis Motion Control Card Servo & Stepper Controller Board
ADLINK NuPrO-596 REV.B1 - industrial control motherboard Half-size PICMG CPU Board
ADLINK PCI-7852 / PCI-7851 - PLOTECH High-Speed Link Control Card Interface Board
ADLINK PCI-9112 - 51-12252-0D20 data acquisition card Multi-Function DAQ
ADLINK PCI-9112 - Circuit Board 51-12252-0C20 Multi-Function Data Acquisition Card
ADLINK NUPRO-761 REV:1.1 - industrial control motherboard PICMG Full-Size CPU Board
