TOSHIBA 2505AC, 3005AC, 3505AC mid to high end commercial grade multifunctional composite machine



TOSHIBA 2505AC, 3005AC, 3505AC series multifunctional laminating machines

Core positioning and design philosophy of the product

core positioning

A high-performance color multifunctional multifunctional multifunctional multifunctional multifunctional machine specially designed for small and medium-sized workgroups. The three models only differ in output speed (25/30/35 pages/minute) and monthly load, while the other core functions and technical configurations remain consistent, which can meet the efficiency needs of teams of different sizes.

Design concept

With "CONNECT. IntegraTE. SIMPLIFY." as the core, we solve complex document flow problems in office scenarios through compact body design, intelligent operation, and open platform integration. At the same time, we practice the concept of "green office" and balance performance and environmental protection needs.

Core functions and technological highlights

Core document processing capabilities

1. Copy function

Copy speed: The three models have 25/30/35 PPM (Letter size) to meet different efficiency requirements.

Copy resolution: 600 × 600 dpi, supports 25% -400% zoom ratio, and can make up to 999 consecutive copies.

Special features: Supports multi page merging, pagination, sorting, and can be combined with saddle/fold function to achieve saddle stitch binding and nail free folding, suitable for document production needs such as reports and manuals.

2. Printing function

Printing speed and resolution: At the same copying speed, it supports up to 1200 × 1200 dpi (PostScript 3) laser printing quality, and black and white printing can achieve 3600 × 1200 dpi (with smoothing processing).

Color technology: Adopting multi beam laser color technology, combined with Toshiba e-BRIDGE color configuration tool, customizable color configuration, matching Pantone color, spot color or other device output effects, 256 levels of grayscale ensure smooth transition of photos and illustrations.

Flexible printing support: Supports 12 × 47 inch banner printing, 11 × 17 inch color bleeding printing, compatible with AquaAce waterproof and tear resistant media; Equipped with the "print bypass" function, it can skip tasks that get stuck due to insufficient paper type/toner, avoiding printing bottlenecks.

Mobile and Network Printing: Supports AirPrint and Mopria protocols, and enables mobile printing on iOS and Android devices through the e-BRIDGE Print&Capture application; Compatible with Windows, Macintosh, Unix, Linux systems, supporting multiple network protocols such as TCP/IP, IPv4/IPv6, etc.

3. Scanning function

Scanning speed: Equipped with a 300 page capacity dual scan document feeder (DSDF), the double-sided scanning speed can reach 240 IPM, and the single-sided scanning speed can reach 120 IPM; Optional 100 page capacity reversing automatic document feeder (RADF) with double-sided scanning speed of 73 IPM.

Scanning Quality and Format: Supports resolutions of 100-600 dpi, with scanning modes including full-color, auto color, black and white, and grayscale; The output formats include TIFF, PDF, XPS, JPEG, etc. The embedded OCR function can generate searchable PDF and editable formats such as Word, Excel, PPT, etc.

Convenient transfer: Supports scanning to USB, network folders, email, and with Multi Station Print enabler, users can extract scanned files through authentication on any Toshiba MFP connected to the internet.

4. Fax function

Transmission performance: Compatible with Super G3 standard, with a modem speed of 33.6 Kbps, a single page transmission time of about 3 seconds, and a scanning speed of 0.7 seconds per page (up to 73 IPM).

Storage and group sending: Supports storage of 100 jobs (dependent on hard drives), can send to up to 2000 destinations in a group, and can receive up to 400 recipients per job. Data compression formats include MH/MR/MMR/JBIG.

Intelligence and convenient operation

Operation interface: Equipped with a 9-inch color WVGA tilt touch screen, supporting context sensitive help function, real-time access to manual instructions, and reducing the operating threshold.

Efficient homework management: supports unlimited homework appointments, and users can send task queues at any time; Equipped with a Paper Volume Indicators panel, it intuitively displays the paper type, size, and remaining quantity of each paper box; Service Module Design reduces maintenance time and costs.

Driver and integration: Provides a universal printing driver that supports PCL 6, PS3, XPS formats, and is paired with plugins such as Job Point and Job Replicator to achieve efficient operations such as multi device division of labor printing, multi form replacement, and batch printing separation.

Security protection system

Data storage security: Built in 320GB self encrypting hard drive (SED), compliant with FIPS 140-2 certification, supports automatic hard drive failure (ADI) and data overwrite functions to prevent data leakage.

Transmission and Access Security: Supports IPsec protocol encryption for data transmission between devices and networks, equipped with IP address filtering, MAC address filtering (10 groups each), SSL encryption, and other functions; Support IEEE 802.1X authentication and SMB packet signing to ensure network connection security.

User permission management: Supports account control for up to 10000 users or 1000 departments, and can restrict access to functions such as copying, printing, and scanning through device local authentication, Windows domain account, or LDAP server authentication; Equipped with mechanisms such as password policy, password expiration lock, and job access control.

Environmental Protection and Sustainability

Environmental certification: Obtained EPEAT Gold certification, Energy Star V2.0 certification, compliant with RoHS standards, and passed multiple international environmental certifications such as the Blue Angel logo (RAL UZ-171) and Nordic Swan.

Energy saving design: Supports 0.6W ultra-low power deep sleep mode to reduce standby energy consumption; Using recycled plastic materials to reduce environmental footprint.

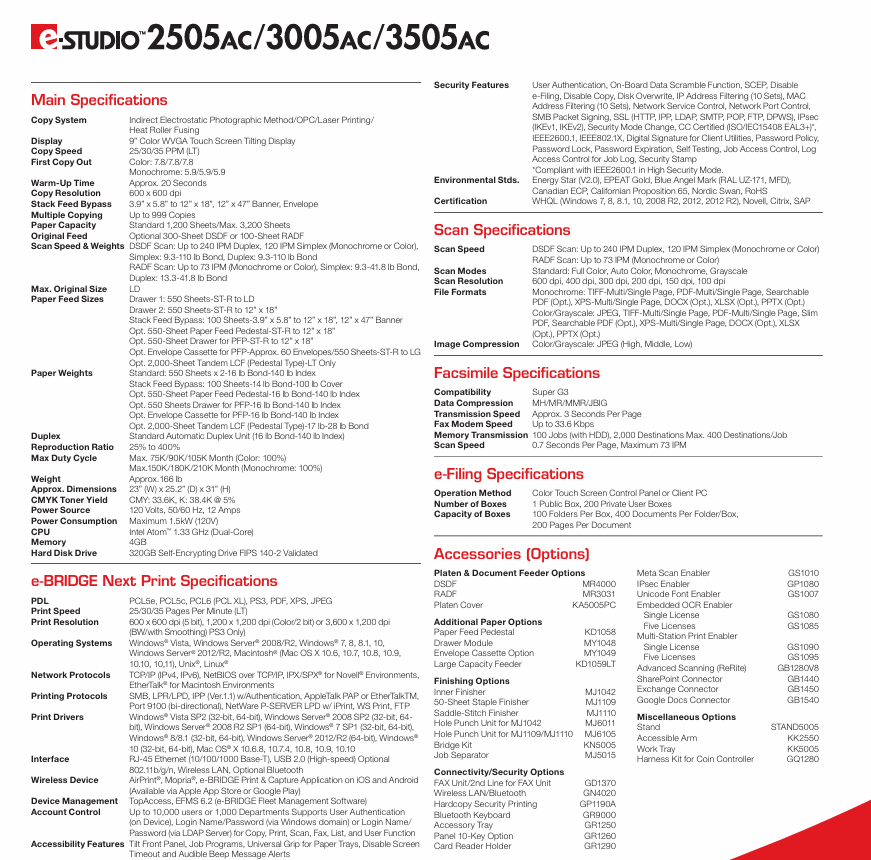

Hardware configuration and specification parameters

Core hardware parameters

Category specific configuration

Intel Atom 1.33 GHz Dual Core Processor

4GB RAM

320GB FIPS 140-2 certified self encrypting hard drive

The standard paper capacity is 1200 pages, and it can be expanded to a maximum of 3200 pages (including accessories such as paper boxes and large capacity feeders)

Paper adaptation supports 3.9 x 5.8 inches to 12 x 18 inches paper, envelopes, 12 x 47 inches banners, weight range of 14-100 pounds cover paper (bypass feed)

Size and weight: 23 inches (width) x 25.2 inches (depth) x 31 inches (height), approximately 166 pounds

Power requirement 120V, 50/60Hz, 12A, maximum power consumption 1.5kW

Consumables and Durability

Toner capacity: Each CMY color toner can print 33600 pages, and black toner can print 38400 pages (based on 5% coverage and Letter size paper).

Monthly load: The maximum monthly load for color is 75K/90K/105K pages (corresponding to 2505AC/3005AC/3505AC), and the maximum load for black and white is 150K/180K/210K pages, meeting the high printing volume office needs.

Optional accessories and expansion capabilities

Document processing accessories

Paper feeding accessories: MR4000 dual scanning document feeder, MR3031 reverse automatic document feeder, KA5005PC paper table cover.

Paper Expansion: KD1058 Feed Base, KD1059LT 2000 Page Large Capacity Feeder, MY1048 Extra Drawer Module, MY1049 Envelope Paper Box (can hold 60 envelopes).

Binding and output accessories

Binding equipment: MJ1042 50 page built-in stapler, MJ1109 50 page console stapler, MJ1110 50 page saddle stitch stapler, MJ5015 homework separator.

Punching module: MJ6011 (compatible with MJ1042), MJ6105 (compatible with MJ1109/MJ1110) punching unit.

Connection and security accessories

Connectivity accessories: GN4020 wireless LAN/Bluetooth module, GR9000 Bluetooth keyboard, GR1250 accessory tray, GR1260 ten key numeric keypad.

Security accessories: GR1290 card reader bracket, GP1080 IPsec security enabler, GS1080/GS1085 embedded OCR enabler (single authorization/five authorization).

Software and Solution Expansion

Built in embedded web browser, supporting third-party solution integration;

Optional SharePoint connector, Exchange connector, and Google Docs connector can be used to directly upload documents to the cloud;

Support e-BRIDGE Fleet Management Software (EFMS 6.2) for device fleet management, facilitating unified monitoring and maintenance of multiple devices.

Applicable scenarios and core values

Applicable scenarios

Full functional office for small and medium-sized enterprises: covering document copying, color printing, contract scanning, and report fax needs for administrative, financial, marketing, and other departments.

Professional document production: supports banner printing, bleeding printing, saddle stitch binding, and adapts to the production of professional documents such as brochures, product manuals, conference materials, etc.

Multi team collaborative office: Cross device job retrieval is achieved through Multi Station Print enabler, embedded OCR simplifies document editing and retrieval, and improves team collaboration efficiency.

High security scenario: Industries such as finance and law can ensure the security of sensitive document processing through encryption of hard drives, permission control, data overwriting, and other functions.

core value

Efficiency improvement: features such as high-speed document processing, dual scan paper feeders, and unlimited job scheduling greatly reduce document waiting time;

Cost optimization: Large capacity consumables reduce single page printing costs, compact design saves office space, modular maintenance reduces service costs;

Safe and reliable: encryption and permission management that comply with international security standards to ensure the security of commercial data;

Flexible adaptation: Rich accessories and software extensions, customizable document processing flow according to business needs, adaptable to different industry workflows.

Certification and Compliance Information

Security certification: CC certification (ISO/IEC15408 EAL3+), IEEE2600.1 compliance (high security mode), WHQL certification (compatible with Windows series systems).

Environmental compliance: RoHS compliance, California Proposition 65 compliance, Canada ECP certification.

Other certifications: Novell, Citrix, SAP compatibility certification to ensure seamless integration with existing IT systems in the enterprise.
