TOSHIBA External and Internal Hard Drives



TOSHIBA  External and Internal Hard Drives

External HDD: graded by location to meet different needs

External hard drives are divided into three levels: Premium, Advanced, and Standard. The core differences lie in material, functionality, and design, all of which support USB 3.0 (backward compatible with USB 2.0) and USB power supply.

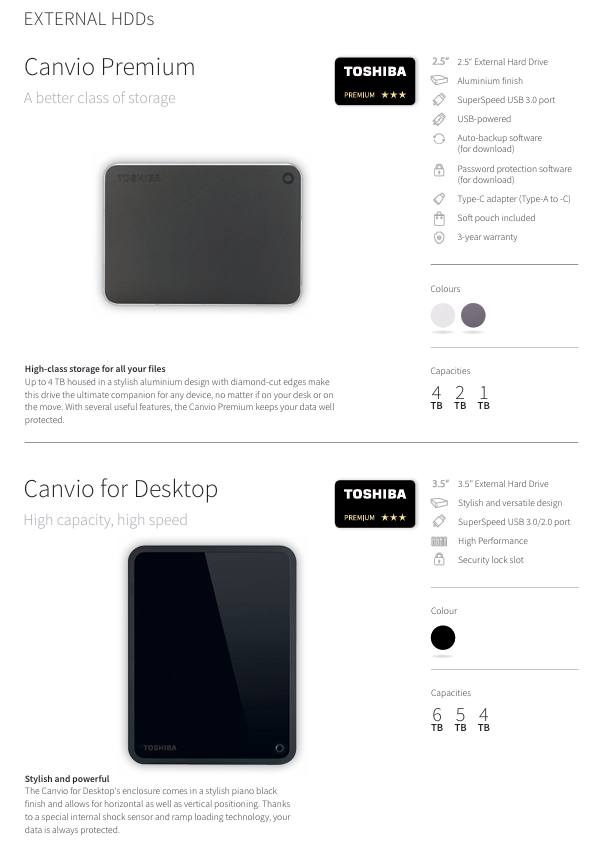

1. Premium series: high-end design and comprehensive protection

Model Size Material/Design Core Function Capacity Warranty

Canvio Premium 2.5-inch aluminum casing with diamond cut edge automatic backup software (downloadable), password protection software (downloadable), Type-C adapter (A to C), soft bag 1TB/2TB/4TB for 3 years

Canvio for Desktop 3.5-inch piano high gloss finish, supports horizontal/vertical high-speed transmission, internal vibration sensor, ramp loading technology, safety lock slot 4TB/5TB/6TB-

2. Advanced Series: Balancing Performance and Design

Model Size Material/Design Core Function Capacity Warranty

Canvio Advance 2.5-inch high gloss piano paint automatic backup, password protection, high-speed USB 3.0 1TB/2TB/4TB-

Canvio Alu 2.5-inch integrated aluminum shell vibration sensor, ramp loading technology (anti-collision), USB power supply 500GB/1TB/2TB-

3. Standard series: High cost-effective basic model

Model Size Material/Design Core Function Capacity Warranty

Canvio Basics 2.5-inch matte black shell plug and play, USB 3.0 high-speed transfer 500GB/1TB/2TB/4TB-

Canvio Ready 2.5-inch dot pattern shell drag and drop operation, lightweight design 500GB/1TB/2TB/4TB-

4. Technical Parameters Table of External Hard Disk (Core Models)

Series model capacity interface shell backup software password lock additional function

Canvio Premium HDTW240ES3CA 4TB USB 3.0/2.0 Aluminum √√ Type-C Adapter, Soft Bag

Canvio for Desktop HDWC360EK3JB 6TB USB 3.0/2.0 Piano Paint √√ Safety Lock Slot

Canvio Advance HDTC940ER3CA 4TB USB 3.0/2.0 Piano Paint √√-

Canvio Alu HDTH320ER3AB 2TB USB 3.0/2.0 Aluminum √√ Vibration Sensor

Canvio Basics HDTB440EK3CA 4TB USB 3.0/2.0 Matte - Plug and Play

Canvio Ready HDTP240EK3CA 4TB USB 3.0/2.0 dot pattern - drag and drop operation

Internal HDD: Segmented by scenario to accurately match requirements

Internal hard drives are divided into 6 series according to application scenarios, all of which are SATA interfaces. The core differences lie in speed, cache, durability, and functional optimization, covering NAS, gaming, monitoring, video editing, and other scenarios.

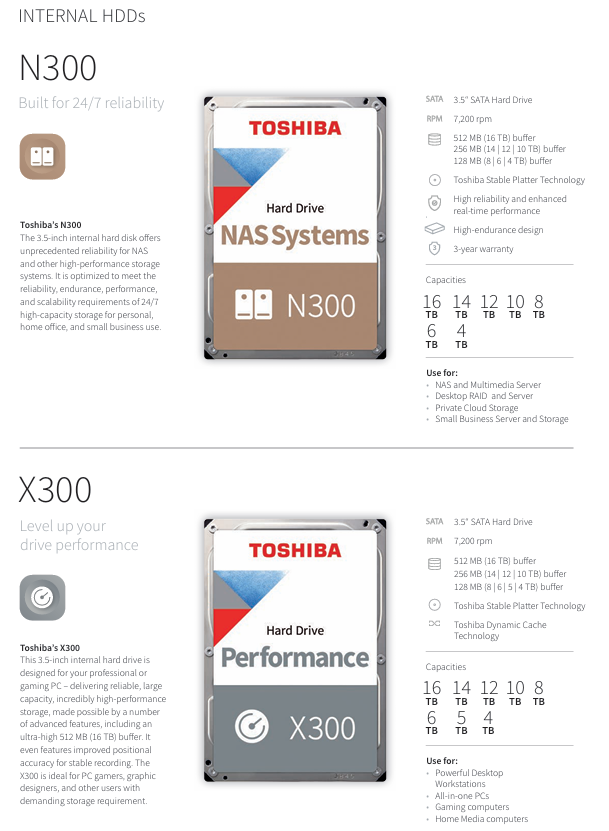

1. Comparison Table of Core Series Parameters

Series Positioning Size Interface Speed Cache Capacity Range Key Features Warranty

N300 NAS dedicated 3.5-inch  SATA 6Gbit/s 7200rpm 128MB（4-8TB）/256MB（10-14TB）/512MB（16TB） 4TB-16TB 24/7  Running, high durability, compatible with RAID for 3 years

X300 Performance Class (Gaming/Design) 3.5 inches  SATA 6Gbit/s 7200rpm 128MB（4-8TB）/256MB（10-14TB）/512MB（16TB） 4TB-16TB  Dynamic caching technology, stable disk technology, high positional accuracy for 2 years

S300 monitoring dedicated 3.5-inch  SATA 6Gbit/s 5400rpm（4-5TB）/7200rpm（6-10TB） 128MB（4-5TB）/256MB（6-10TB） 4TB-10TB  Supports 64 cameras, 24/7 operation, shock resistant design for 3 years

V300 video streaming dedicated 3.5-inch SATA 6Gbit/s 5700rpm (500GB-2TB)/5940rpm (3TB) 64MB 500GB-3TB silent seek technology, temperature control, support for 16 cameras for 2 years

P300 desktop level (PC expansion) 3.5-inch SATA 6Gbit/s 7200rpm 64MB 500GB-3TB dual stage actuator, ramp loading design, vibration sensor 2 years

L200 notebook grade 2.5-inch  SATA 3/6Gbit/s 5400rpm 8MB（500GB-1TB 9.5mm）/128MB（1-2TB 7mm） 500GB-2TB  2 years of vertical magnetic recording (PMR) and tunneling magnetoresistance (TMR) technology

2. Detailed explanation of key series functions

N300 (NAS): Optimized for 24/7 uninterrupted operation, compatible with personal/small and medium-sized enterprise NAS systems, private cloud storage, supports RAID arrays, and ensures data reliability;

X300 (Performance): 512MB ultra large cache (16TB model) improves game loading and video rendering speed, suitable for high-end gaming PCs and graphics workstations;

S300 (Monitoring): Optimized for concurrent read and write operations of multiple cameras, supports high-resolution video recording to avoid frame loss, and is compatible with DVR/NVR systems;

L200 (notebook): 7mm ultra-thin design (1-2TB model) compatible with most notebooks, PMR technology improves storage density and meets the expansion needs of mobile devices.

Enterprise HDD: High reliability and large capacity, supporting enterprise applications

Enterprise grade hard drives are divided into AL series (high-performance) and MG series (large capacity), designed for mission critical scenarios such as servers and data centers, supporting 24/7 operation and high-intensity workloads.

1. AL series (high-performance enterprise level): suitable for high load applications

Model Capacity Interface Speed Cache Block Size Security Options Key Features

AL14SXB30EN 300GB SAS 12Gbit/s 15000rpm 128MB 512n SIE/SED low latency, persistent write cache, unlimited workload

AL15SEB24EP 2400GB SAS 12Gbit/s 10500rpm 128MB 4Kn SIE/SED adaptive storage array, virtual storage system

Core advantages: MTTF (Mean Time to Failure) reaches 2 million hours, supports SIE (Instant Erasure)/SED (Self Encryption), suitable for transaction oriented databases and high-performance computing (HPC);

Application scenarios: Tier 1 enterprise servers, big data analytics, virtualized storage.

2. MG series (large capacity enterprise level): compatible with massive storage

Model Capacity Interface Filling Gas Speed Cache Block Size Key Characteristics

MG08SCA16TE 16TB SAS 12Gbit/s helium 7200rpm 512MB 512e helium seal (reduces power consumption/noise), 550TB/year workload

MG08ACA16TA 16TB SATA 6Gbit/s helium 7200rpm 512MB 4Kn compatible with cloud storage and distributed file system

Core advantages: Some models adopt helium sealing technology (MG06 and above) to improve storage density and reduce operating power consumption; MTTF reaches 1.4-2.5 million hours and supports a 5-year warranty;

Application scenarios: Enterprise storage arrays, cloud/ultra large scale storage, data archiving and recovery.

3. Enterprise level hard drive reliability parameters

Series MTTF (hour) non recoverable error rate operating mode annual workload warranty

AL series 2 million 1/10 ¹⁶ 24/7 unlimited 5 years

MG series 1.4-2.5 million 1/10 ¹⁵ 24/7 550TB 5 years

Key issue

Question 1: In Toshiba's internal hard drives, the N300 (NAS specific) and X300 (performance level) are both 3.5 inches and 7200rpm. What is the core difference? Which specific scenarios are suitable for each?

Answer:

The core difference between the two lies in the direction of functional optimization and adaptation to target scenarios, as follows:

Differences in functional optimization:

N300 (NAS specific): Core optimized for "24/7 reliability", supports uninterrupted operation, adapts to RAID arrays, features high durability design (such as enhanced head stability, anti vibration optimization), cache capacity graded according to capacity (128MB for 4-8TB, 256MB for 10-14TB, 512MB for 16TB), with a focus on ensuring data integrity during concurrent access from multiple devices;

X300 (Performance Level): Core optimization of "high speed and responsiveness", equipped with Toshiba Dynamic Cache Technology and Stable Platter Technology, 512MB ultra large cache (16TB model) to improve data read and write speed, improve positional accuracy, and reduce game loading and video rendering latency.

Applicable scenarios:

N300: Suitable for personal/small and medium-sized enterprise NAS systems, home multimedia servers, private cloud storage, small business file servers, and scenarios that require long-term stable operation and support simultaneous access by multiple users/devices;

X300: Suitable for high-end gaming PCs, graphics workstations, professional video editing computers, high-performance desktop all-in-one machines, and scenarios that require high speed and large cache to improve single machine high-performance computing and large capacity file processing efficiency.

Question 2: What are the advantages of "helium sealing" technology for Toshiba enterprise MG series hard drives? What are the differences in the applicable scenarios of SAS interface and SATA interface models in this series?

Answer:

1、 The core advantages of helium sealing technology

The MG06 and above models in the MG series adopt helium sealed design, which has three main advantages compared to traditional air filled hard drives:

Enhance storage density: The helium density is only 1/7 of that of air, and the internal resistance of the hard drive is smaller. It can stack more disks in the same 3.5-inch size, achieving higher capacity (such as MG08SCA16TE reaching 16TB);

Reduce power consumption and noise: Low resistance environment reduces motor operating load, reducing operating power consumption by about 20% (typical value decreases from 11.8W filled with air to 8.2W), while reducing noise caused by disk rotation and head movement, suitable for dense deployment in data centers;

Extended lifespan: Helium has stable chemical properties that can reduce internal component oxidation, and the sealed design isolates dust, improving the reliability of the hard drive. The MTTF (mean time between failures) reaches 2.5 million hours (some models), which is higher than the 1.4 million hours of air filled models.

2、 Scenario differences between SAS and SATA interface models

Interface type, core characteristics, applicable scenarios, representative models

SAS 12Gbit/s high bandwidth (12Gbit/s), support for multi device connections, hot swapping, strong fault tolerance enterprise level storage arrays, mission critical servers (such as transaction databases, virtualized storage), scenarios requiring high IOPS (input/output operations per second) MG08SCA16TE (16TB, helium, 512MB cache)

SATA 6Gbit/s has lower cost, strong compatibility, slightly lower power consumption, mainstream servers, ultra large scale cloud storage, data archiving/backup systems, and scenarios that require low IOPS but large capacity MG08ACA16TA (16TB, helium, 512MB cache)

Question 3: Which Toshiba internal hard drive should be selected for users who need to expand their laptop and configure a hard drive for their home monitoring system? What parameters should be focused on when choosing?

Answer:

1、 Laptop Expansion: Choose L200 Series

Recommended model: Choose according to capacity requirements - choose HDWL110EZSTA (7mm thickness, 128MB cache) for 1TB ultra-thin version; 2TB is required to select HDWL120EZSTA (9.5mm thickness, 128MB cache); Due to limited budget, choose the 500GB model HDWK105UZSVA (7mm thickness, 8MB cache).

Key focus parameters:

Thickness: Laptop hard drive slots support 7mm or 9.5mm, with 7mm models having wider compatibility (such as ultrabooks), while 9.5mm is only suitable for traditional laptops;

Interface: L200 supports SATA 6Gbit/s (mainstream) and SATA 3Gbit/s (compatible with old laptops), please confirm the laptop interface version (6Gbit/s is preferred unless otherwise specified);

Cache: 128MB cache (1-2TB 7mm model) is more suitable for multitasking (such as simultaneously opening documents and playing videos) than 8MB cache (500GB/1TB 9.5mm model), improving response speed.

2、 Home monitoring system: choose S300 series

Recommended model: Choose according to the number of cameras - select HDWT140UZSVA (4TB, 5400rpm, 128MB cache) for 4-8 cameras; Select HDWT360UZSVA (6TB, 7200rpm, 256MB cache) for cameras with 8-16 channels; Select HDWT31AUZSVA (10TB, 7200rpm, 256MB cache) for 16-64 high-resolution cameras.

Key focus parameters:

Speed and cache: 7200rpm (6-10TB model) is more suitable for concurrent recording of multiple cameras than 5400rpm (4-5TB model) to avoid frame loss; 256MB cache (6-10TB model) can reduce frequent head movement and improve continuous write stability;

Camera support: S300 supports up to 64 cameras (10TB model), depending on the number of home monitoring cameras (such as 4 cameras for the entrance, living room, and bedroom, 4TB is sufficient); If there are 12 roads including garage and balcony, 6TB or more is required;

Operation mode: It must support "24/7 operation". The S300 has optimized the head life and heat dissipation design for monitoring scenarios to avoid long-term overheating faults.
