Yokogawa Model AIP830 Operation Keyboard for Singleloop Operation

Yokogawa Model AIP830 Operation Keyboard for Singleloop Operation

Product Overview

Product Name: AIP830 Single Circuit Operation Keyboard

Applicable equipment: Desktop HIS (Human Interface Station)

Core features: Integrated independent USB speaker (sound function)+buzzer alarm (electronic buzzer), 1 HIS corresponds to 1 keyboard

Manufacturer: Yokogawa Electric Corporation (2-9-32 Nakamachi, Musashino City, Tokyo, Japan)

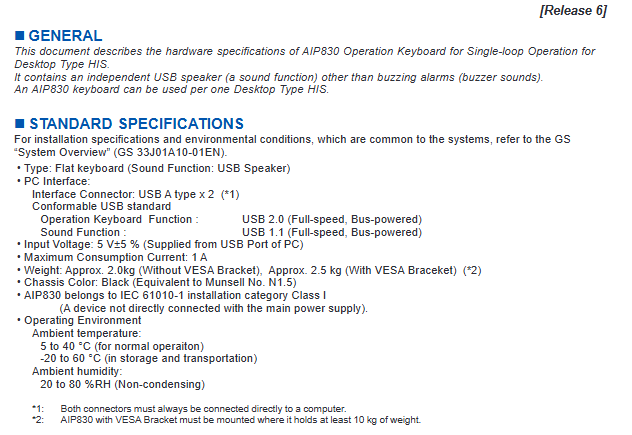

Core technical specifications

Category key parameter details

Type Keyboard Type Tablet keyboard (with USB speaker)

The interface specification is USB A-type × 2, and it needs to be directly connected to a computer; The keyboard function follows USB 2.0 (full speed, bus powered), and the sound function follows USB 1.1 (full speed, bus powered)

Power input voltage 5V ± 5% (powered by the USB port of the PC)

Maximum power consumption: 1A

Physical characteristics Weight without VESA bracket: ≈ 2.0kg; with VESA bracket: ≈ 2.5kg

Physical Characteristics Color Black (Equivalent Munsell Color N1.5)

Safety level installation category IEC 61010-1 Class I (not directly connected to the main power supply)

Environmental requirements

Range of environmental type parameters

Working environment ambient temperature 5-40 ℃

Storage/transportation environment ambient temperature -20-60 ℃

Universal ambient humidity 20-80% RH (non condensing)

Keyboard layout and functionality

Key composition: alphanumeric keys+dedicated operation keys+window call keys grouped by function+64 user-defined function keys (for process control and factory monitoring)

Key components:

Optional component: Mode selection switch (select whether to configure through suffix code)

Operation confirmation key: 2 types (Type A/Type B, selected by suffix code)

Other keys: cursor movement key, display key, buzzer reset key, Fn key, numeric key, screen clearing key, data input key, container window key, alarm confirmation key, page flipping key, etc

Combination function (to be used in conjunction with Fn key):

Page key → Volume control key

Cursor movement key → scroll key

Clear screen button → take effect (Fn key coordination requirements can be cancelled through hardware settings)

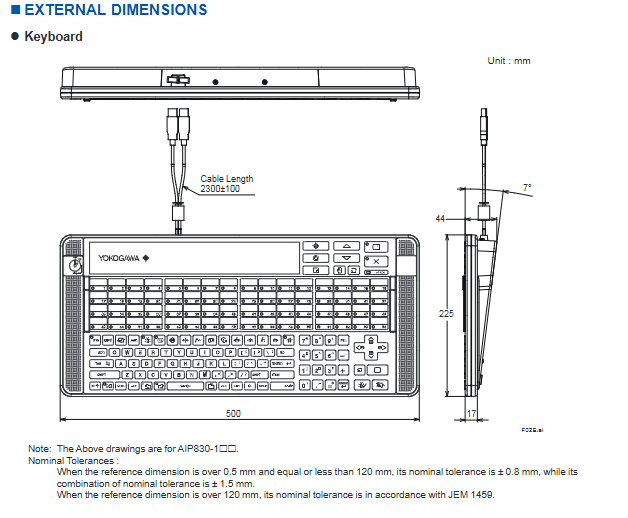

Dimensions and installation specifications

Cable length: 2300 ± 100mm

Tolerance standard:

Reference size 0.5mm ＜ D ≤ 120mm: tolerance ± 0.8mm, combination tolerance ± 1.5mm

Reference size>120mm: Follow JEM 1459 standard

VESA bracket installation:

Screw specification: 8-M4 (only applicable to M4 × L10 screws)

Installation hole spacing: 100 × 100mm, 75 × 75mm

Load bearing requirement: AIP830 with VESA bracket should be installed in a position that can withstand a weight of at least 10kg

Key dimensions of bracket (mm): 225, 159.6, 138.7, 58.5, 250, 137, 500

Model and suffix/option code

Encoding Type Encoding Value Description

Model AIP830 Single Circuit Operation Keyboard

Suffix code-0 without mode selection switch

Suffix code-1 with mode selection switch

Suffix code 0 operation confirmation key type A

Suffix code 1 operation confirmation key B type

The fixed value of suffix code 1 is 1

Option code/VESA with VESA bracket

Option code/EIM comes with an English manual

Option code/JIM comes with Japanese manual

Applicable standards

Safety standards: CSA, CE Marking, EAC Marking, Moroccan Compliance Marking (C Marking)

Note: The corresponding markings need to be marked on the PC that needs to be connected in order for the keyboard to comply with this standard

EMC Compliance Standards: CE Marking, RCM, KC Marking, EAC Marking, Moroccan Compliance Marking (C Marking)

Note: The EN 61000-3-2 and EN 61000-3-3 standards in CE Marking are not applicable to AIP830; The PC needs to have corresponding markings in order for the keyboard to comply with this standard

Key issues

Question 1: What are the core interfaces, power parameters, and physical characteristics of the AIP830 keyboard?

Answer: The core interface consists of two USB A-type interfaces (keyboard function USB 2.0, sound function USB 1.1, both powered by bus), which need to be directly connected to a computer; The power input is 5V ± 5% (provided by the PC USB port), with a maximum current consumption of 1A. In terms of physical characteristics, the color is black (Munsell color code N1.5), about 2.0kg without VESA bracket, and about 2.5kg with bracket. The installation category is IEC 61010-1 Class I.

Question 2: What are the core features of the key layout of AIP830 keyboard and what combination functions are supported?

Answer: The button layout includes alphanumeric keys, dedicated operation keys, window call keys for function grouping, and 64 user-defined function keys (adapted for process control and factory monitoring); Support mode selection switch (optional) and 2 types of operation confirmation keys (type A/B optional); The combination function needs to be implemented with the Fn key: the page turning key becomes the volume control key, the cursor movement key becomes the scroll key, and the clear screen key takes effect (the Fn key can be cancelled through hardware settings).

Question 3: What is the model coding rule for AIP830 keyboard and how do I choose to configure it?

Answer: The model code consists of "basic model+suffix code+option code": the basic model is AIP830; The suffix code -0/-1 indicates the absence/presence of a mode selection switch, 0/1 indicates the A-type/B-type operation confirmation key, and is fixed with the number 1; Option code/VESA for VESA bracket,/EIM for English instruction manual,/JIM for Japanese instruction manual. When selecting, it is necessary to combine the corresponding codes based on whether a mode switch is needed, the type of operation confirmation key, whether a bracket is required, and the language of the instruction manual.
