BENDER EDS3090 series portable grounding fault location system

From: | Author:Wang | Time :2025-12-23 | 338 visit: | 🔊 Click to read aloud ❚❚ ▶ | Share:


BENDER EDS3090 series portable grounding fault location system

Product Overview

Brand and positioning: The EDS3090 series, launched by the German company BENDER, is a portable electrical detection device that integrates "ground fault location" and "residual current measurement". Its core positioning is as a safety monitoring tool for ungrounded (floating) AC/DC systems, with a focus on "wide voltage coverage, dual function measurement, and portable and easy operation". It can accurately locate faults to the load level in the online live state of the system, and also supports residual current measurement of branches of grounded/high resistance grounded AC systems. It is suitable for multiple scenarios such as industrial main distribution networks, ships, medical places, and small control systems.

Core design highlight: All components are stored in a sturdy aluminum chassis (size 430 × 340 × 155mm) with a weight of ≤ 9kg, making it easy to carry on site; Certified according to standards such as IEC 61326-2-4, it has industrial grade characteristics such as resistance to electromagnetic interference and wide temperature operation, meeting the requirements for use in harsh environments.


Product series classification and core differences

This series is divided into three dimensions based on "adaptation scenario, working mode, and power supply voltage", with each model accurately matching different needs. The core differences are as follows:

Model Series Adaptation Scenarios Operating Modes Power Supply Voltage Core Components (Standard) Rated Voltage Range (Basic Configuration)

EDS3090 main distribution system is equipped with BENDER fault detectors - EDS195P, PSA3020 (20mm clamp), PSA3052 (52mm clamp) AC 20-575V (42-460Hz), DC 20-504V

EDS3090PG main distribution system independent (including current injector) 230V AC EDS195P, PGH185, PSA3020, PSA3052 are the same as EDS3090 (AGE185 extended to AC 500-790V, DC 400-960V)

EDS3090PG-13 Main Distribution System Independent (including current injector) 90-132V AC EDS195P, PGH185-13, PSA3020, PSA3052 Same as EDS3090

EDS3096PG offline system independent (including current injector)  230V AC EDS195P、PGH186、PSA3020、PSA3052 AC 0-575V(42-460Hz)、DC 0-504V

EDS3096PG-13 offline system independent (including current injector) 90-132V AC EDS195P, PGH186-13, PSA3020, PSA3052 are the same as EDS3096PG

EDS3091 small system/medical facility with installed BENDER fault detector - EDS195P, PSA3320 (20mm clamp), PSA3352 (52mm clamp) AC 20-265V (42-460Hz), DC 20-308V

EDS3091PG Small System/Medical Facility Independent (including Current Injector) 230V AC EDS195P, PGH183, PSA3320, PSA3352 Same as EDS3091

EDS3091PG-13 Small System/Medical Facility Independent (Including Current Injector) 90-132V AC EDS195P, PGH183-13, PSA3320, PSA3352 Same as EDS3091


Detailed explanation of core components

(1) Core equipment

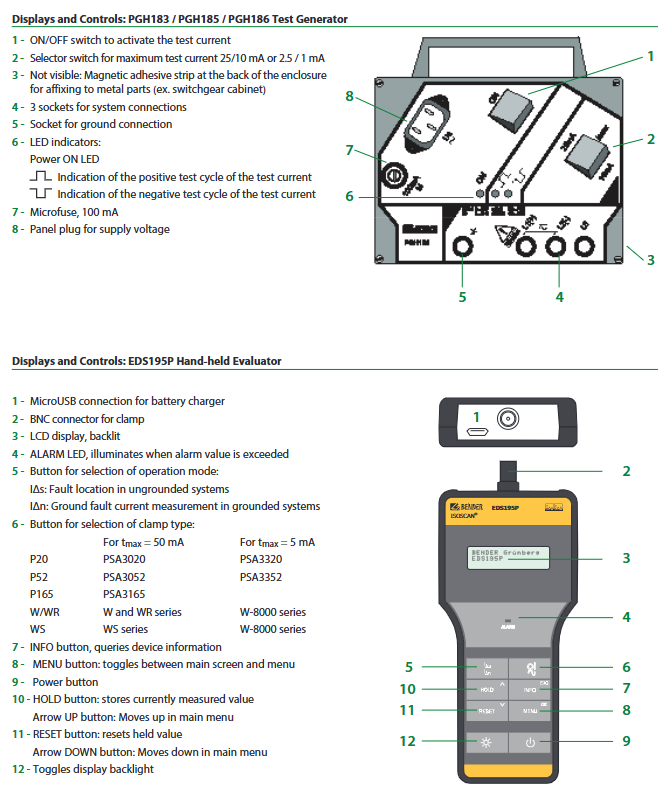

EDS195P Handheld Evaluator (System Control Core)

Function: Switching measurement modes, displaying data, triggering alarms, parameter adjustment, supporting two core modes:

I Δ s mode: Grounding fault location in ungrounded systems, receiving positioning current signals collected by measuring pliers;

I Δ n mode: residual current measurement of the grounding system, displaying the residual current value of the branch.

Key features: 3-line 16 character backlit LCD display screen, ALARM LED alarm light (lights up when the threshold is exceeded); Support HOLD data retention, RESET reset, and INFO device information query; Charging through MicroUSB interface.

Power supply and endurance: 3 AA batteries or NiMH rechargeable batteries (≥ 2000mAh), endurance ≤ 60h without backlight, power consumption ≤ 0.5W.

Protection and size: IP40 protection, ABS shell (UL94 V-0 flame retardant), size 84 × 197 × 30mm, weight ≤ 350g.

The PGH series current injector (positioning signal source) is responsible for generating stable positioning current and driving the fault location of ungrounded systems. Different models have clear adaptation scenarios: | Model | Adaptation Scenario | Power Supply Voltage | Maximum Positioning Current (optional) | Core Features|

|PGH183 | Small systems/medical facilities | 230V AC/90-132V AC (-13) | 1mA/2.5mA | Low current output, compatible with control circuits|

|PGH185 | Main distribution system | 230V AC/90-132V AC (-13) | 10mA/25mA | Medium high current output, compatible with main circuit|

|PGH186 | Offline System | 230V AC/90-132V AC (-13) | 10mA/25mA | Built in 50V DC Measurement Voltage, Suitable for Offline/Low Voltage Systems|

Operation design: including ON/OFF switch, current gear switch, back with magnetic strip (attached to metal cabinet), equipped with power ON and positive and negative current cycle LED indicator lights.

AGE185 voltage coupler (optional)

Function: Expand the system voltage range to AC 500-790V (42-460Hz), DC 400-960V, and adapt to high-voltage ungrounded systems;

Parameters: IP30 protection, safety plug+green yellow grounding wire (1mm ²), weight ≤ 200g, size 88.5 × 42 × 21mm.

(2) Measuring pliers

Classified by jaw diameter and adaptation scenario, the core parameters are as follows:

Model Jaw Diameter Adaptation Equipment Series Measurement Range Variable Ratio Weight Dimensions (W × H × D)

PSA3020/3320 20mm 30 series (main circuit)/33 series (control circuit) PSA30: 2mA-10A; PSA33:0.2mA-2A PSA30:10A/10mA; PSA33:1A/0.1mA ≤300g 135×65×30mm

PSA3052/3352 52mm 30 series (main circuit)/33 series (control circuit) with the same corresponding model as above ≤ 700g 216 × 111 × 45mm

PSA3165 (optional) 115mm 30 series (main circuit) 2mA-10A 10A/10mA ≤ 1300g 285 × 179 × 45mm

Common features: All are equipped with 2m long shielded wires, connected to EDS195P through BNC connectors, and comply with CAT III (AC 600V)/CAT IV (AC 300V) safety levels.

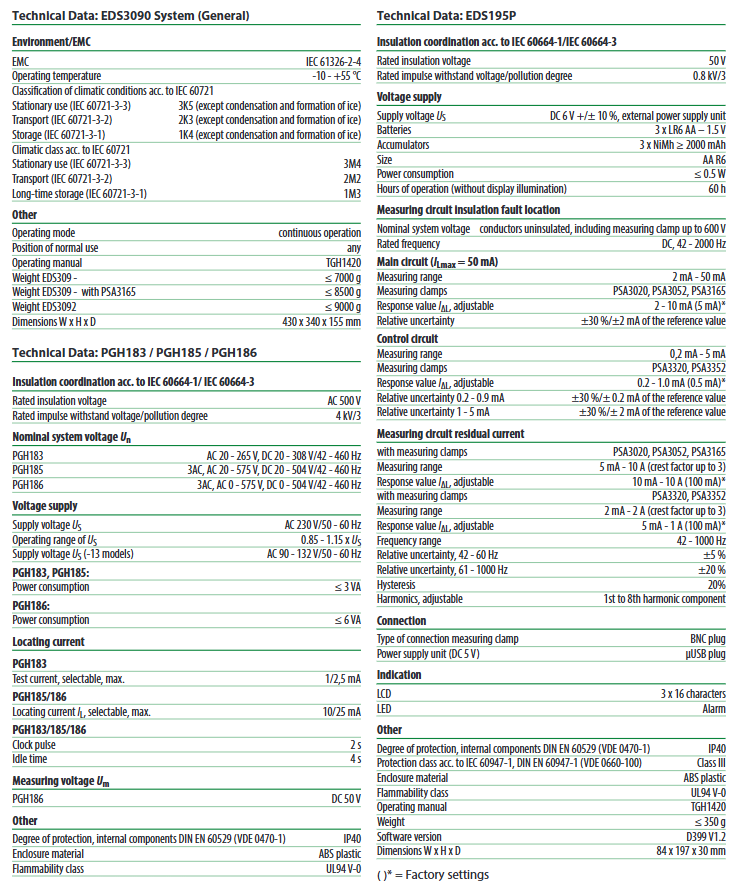

Key technical parameters

(1) Measure performance parameters

Measurement Function Adaptation System Core Parameters Measurement Accuracy Frequency Range

Grounding fault location (main circuit) Non grounded AC/DC system response value: 2-10mA (default 5mA), positioning current: 10-25mA ± 30%/± 2mA AC 42-460Hz

Grounding fault location (control circuit) Non grounded AC/DC system response value: 0.2-1mA (default 0.5mA), positioning current: 1-2.5mA ± 30%/± 0.2mA AC 42-460Hz

Residual current measurement (30 series clamp) grounding/high resistance grounding AC system measurement range: 2mA-10A, response value: 10mA-10A (default 100mA) 42-60Hz: ± 5%; 61-1000Hz:±20% AC 42-1000Hz

Residual current measurement (33 series clamp) grounding/high resistance grounding AC system measurement range: 0.2mA-2A, response value: 5mA-1A (default 100mA) with the same accuracy as above AC 42-1000Hz

(2) Environmental and physical parameters

Parameter category specific specifications

Working temperature -10 ℃~+55 ℃

Climate level (IEC 60721): Fixed use 3K5, transportation 2K3, long-term storage 1K4 (no condensation, no icing)

Mechanical grade (IEC 60721): Fixed use 3M4, transportation 2M2, long-term storage 1M3

Protection level: Core component IP40, AGE185 coupler IP30

The basic configuration of the chassis weight is ≤ 7kg, including PSA3165 pliers ≤ 8.5kg, EDS3092 model ≤ 9kg


Operation and usage characteristics

Core operating procedures

Mode switching: Use the EDS195P mode selection key to switch between "Fault location (I Δ s)" or "Residual current measurement (I Δ n)";

Clamp type selection: Match the corresponding type (such as P20=PSA3020/3320) with the selection key based on the measurement clamp model used;

Data processing: Press the HOLD button to save the current measurement value, and press the RESET button to reset; The MENU key enters the parameter adjustment interface (such as response value, harmonic setting);

Alarm indication: When the measured value exceeds the set threshold, the ALARM LED lights up to indicate a fault.

Typical application scenarios

Scenario 1: Independent online fault location (without installed equipment): EDS3090PG/3091PG series, generates positioning current through PGH injector, and EDS195P cooperates with measuring pliers to locate the fault branch;

Scenario 2: In conjunction with the installed equipment fault location: EDS3090/3091 series, using existing detectors such as BENDER IRDH575 to generate signals, only the evaluation instrument and measuring pliers are needed to complete the positioning;

Scenario 3: Measurement of residual current in grounding system: All models support it. Wrap the branch cable with measuring pliers and directly read the residual current value.


Ordering and Accessories

Optional accessories and functions | Accessory name | Function description | Adaptation scenario|

|PSA3165 measuring pliers | 115mm large clamp, suitable for thick cables | measurement of large section cables in the main distribution system|

|AGE185 voltage coupler | extends voltage range to AC 500-790V/DC 400-960V | high voltage ungrounded system|

|EDS145-SET | Special accessories for fault location of diode isolation system | Power plant diode isolation DC system|

Example of ordering code:

EDS3090PG-13: Main distribution system, independent, 90-132V AC power supply, including PGH185-13 injector;

EDS3091PG: Small system/medical facility, standalone, 230V AC power supply, including PGH183 injector.
