SEW MOVIDRIVE ® MD-60A industrial grade frequency converter

SEW MOVIDRIVE ®  MD-60A industrial grade frequency converter

SEW MOVIDRIVE ®  MD-60A is an industrial grade frequency converter launched by SEW, covering 5 sizes (1-5) and 2 voltage specifications (230V/400-500V). It supports three core control modes: VFC/CFC/SERVO, adapts to asynchronous/synchronous motors, has a rated power of 1.5-75kW and a current of 4-130A, and has two debugging methods: DBG11A panel and MOVITOOLS software. It supports RS-485/Bus communication and multi class option expansion. It has passed EMC/UL certification and is suitable for machine tools, automated production lines and other scenarios. It also has complete fault diagnosis (99 fault codes) and safety protection functions. Installation needs to meet specific heat dissipation gaps and wiring specifications.

Product System and Core Parameters

(1) Product classification and specifications

Classification Dimension Specific Information Key Values

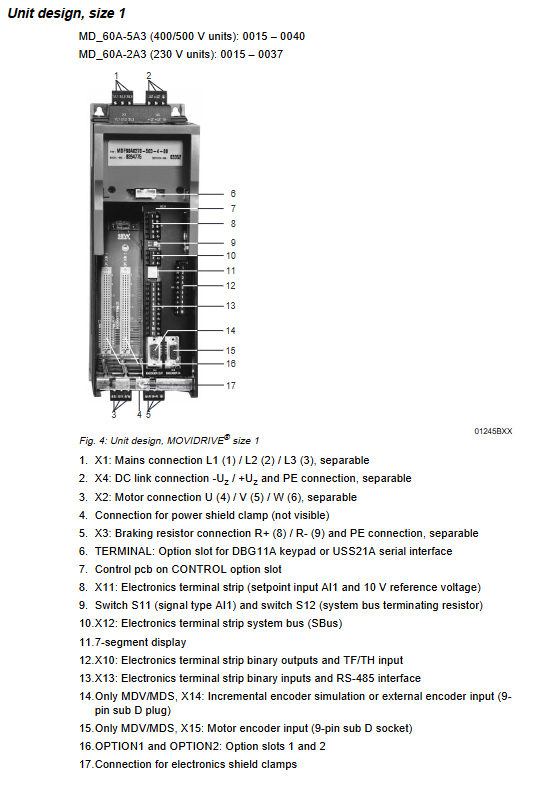

Size models 1-5, corresponding to different power ranges 1 (1.5-4kW)~5 (55-75kW)

Voltage specifications 230V series (3 × 200-240V), 400-500V series (3 × 380-500V), frequency 50/60Hz ± 5%

Rated parameters: rated current 4-130A, rated power 1.5-75kW, speed range -5000~+5000rpm, resolution 0.2rpm

Protection level 1-3 size IP20, 4-5 size IP00 (with protective cover IP10) Working temperature 0-50 ℃ (over temperature reduction of 3%/K)

(2) Core control mode

Mode type applicable scenario key characteristics

VFC (Voltage Flux Control) ordinary speed regulation scenario, supports open-loop control without encoder, PWM frequency adjustable from 4/8/12/16kHz

CFC (current flux control) high-precision speed regulation requires encoder closed-loop control and a fixed PWM frequency of 8kHz

SERVO (servo control) positioning control scenarios (such as machine tools) are adapted to synchronous motors, supporting precise positioning and torque control

Installation and wiring specifications

(1) Mechanical installation requirements

Installation method: Vertical installation only, horizontal/inclined/inverted is prohibited

Heat dissipation gap: Reserve ≥ 100mm above and below, and there are no thermal sensitive components within 300mm of the top of size 4-5

Tightening torque: No.1 0.6Nm, No.2 1.5Nm, No.3 3.5Nm, No.4-5 14Nm

Altitude limit: ≤ 1000m (over 1000m, 1% current reduction per 100m)

(2) Electrical wiring specifications

Cable requirements: The cross-section of the power line should be selected according to the rated current, and the electronic wire should be 0.2-2.5mm ² (single core)/0.2-1mm ² (dual core)

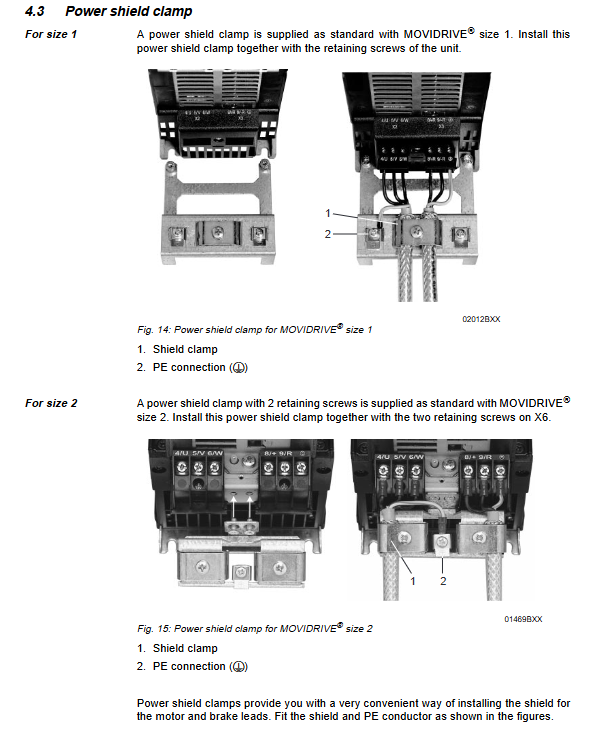

Shielding and grounding: Control cables need to be shielded, and both ends of the shielding layer should be extensively grounded; PE conductor cross-section ≥ 10mm ² (when power supply line ≥ 10mm ²)

EMC compliance: 1-2 built-in input filters, 3-5 require optional NF series filters; HD series output choke coil is optional on the motor side

UL Compliance: Only use copper cables, fuse specifications match (230V maximum 350A/250V, 400V maximum 500A/600V)

Debugging and operation

(1) Debugging method

Debugging Tools/Carrier Core Processes Applicable Scenarios

DBG11A panel, DBG11A button panel, connect to the TERMINAL slot → enter the startup menu → input motor parameters → calculate and save on-site quick debugging, without PC scenarios

MOVITOOLS software computer+USS21A adapter installation software → connect RS-232/RS-485 → select motor type → configure parameters → download batch debugging, complex parameter configuration

(2) Startup and control mode

Source of Setting Values: Analog Input (-10~+10V/4-20mA), Internal Fixed Setting Values (3 sets/parameter set), Communication Settings

Running operation:

Analog control: Input the set value through the X11 terminal, and control the start and stop through the X13 terminal

Manual operation: Set the speed (0-5000rpm) on the DBG11A panel, and select the direction through the buttons

Fixed setting value: Switch 3 sets of preset speeds through X13 terminal

Options and Communication Expansion

(1) Core Options

Option model, functional key parameters

DIO11A expansion I/O with 8 inputs and 8 outputs, 2 analog inputs and 2 analog outputs

USS21A communication adaptation conversion to RS-232/RS-485, maximum transmission distance of 200m

Encoder card position feedback supports 5V TTL/24V HTL/sin/cos encoder, with a maximum line length of 100m

Rotary transformer card high-precision feedback adaptation for 2-pole rotary transformer, signal frequency 7kHz

Fieldbus card bus extension supports protocols such as PROFIBUS/DeviceNet (corresponding options required)

(2) Communication interface

RS-485: up to 32 nodes, transmission distance of 200m, supporting master-slave synchronization

SBus (system bus): up to 64 nodes, baud rate 125/250/500/1000kbaud, corresponding transmission distance 320/160/80/40m

Data interaction: supports periodic transmission of process data and non periodic parameter reading and writing

Fault diagnosis and maintenance

(1) Common faults and solutions

Fault code, fault type, typical cause, handling measures

F01 overcurrent output short circuit, motor mismatch troubleshooting cable short circuit, confirm motor power adaptation

F11 overheating load is too large, poor heat dissipation reduces the load, clean the heat sink, and ensure the heat dissipation gap

F14 encoder fault wiring error, cable breakage inspection, encoder wiring and shielding layer grounding

F84 motor overload exceeds the set value and extends the ramp time. Check the motor cooling system

(2) Maintenance points

Storage requirements: -25~+70 ℃, long-term storage, power on for at least 5 minutes every 2 years

Parameter backup: The DBG11A panel can copy parameter sets (P806/P807) and supports batch copying across multiple devices

Reset methods: power-off reset, manual reset (panel/software), automatic reset (up to 5 times, P841)
