HIRSCHMANN MICE series

HIRSCHMANN MICE series modular

Product basic information

Product positioning and core functions

Product Name: Modular Industrial Communication Equipment (MICE)

Brand affiliation: HIRSCHMANN (a brand under BELDEN)

Core purpose: Designed specifically for industrial environments, building switched industrial Ethernet that complies with the IEEE 802.3 standard

Applicable scenarios: Standard industrial environments (office/commercial/small business), marine (merchant), railway (track area), substations (compliant with EN 61850-3/IEEE 1613)

Certification and Compliance Standards

European standards: 2004/108/EG (Electromagnetic Compatibility), 2011/65/EU (RoHS), ATEX 94/9/EG (Explosion proof)

International standards: FCC Part 15, IEC 60825-1 (Laser Class 1), IEC 60079 (Explosion proof)

Other certifications: CE, UL 508, ISA 12.12.01, etc

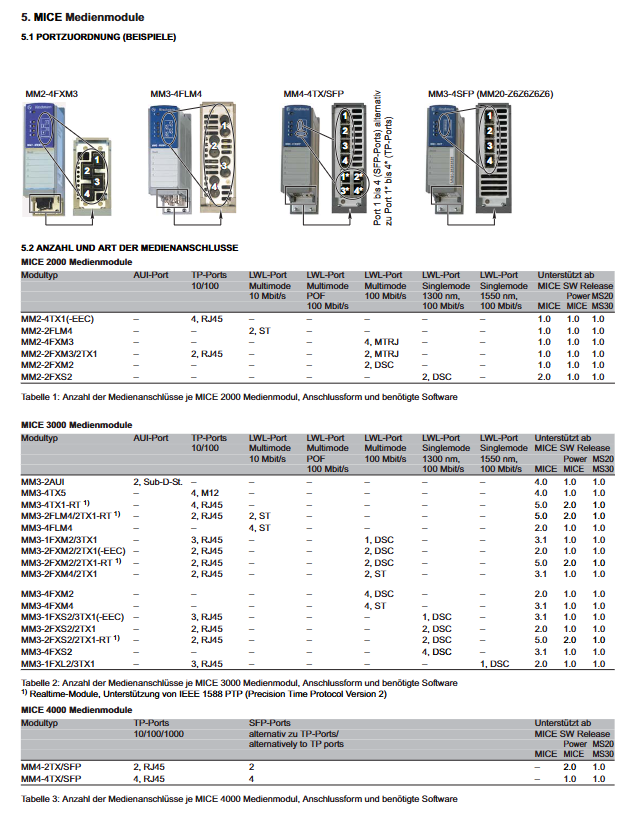

Module system and key specifications

Module category represents model, core parameters support, speed key characteristics

The basic modules MS2108-2 (MS2000), MS3124-4 (MS3000), and MS4128-5 (MS4000) support media module expansion, with some supporting Power MICE 10/100/1000 Mbit/s industrial stability, and are compatible with multiple expansion modules

Media module (MS2000) MM2-4TX1, MM2-2FXM3/2TX1 4 RJ45 ports/2 MTRJ+2 RJ45 ports 10/100 Mbit/s basic industrial scene adaptation, power consumption 0.8W~6.8W

Media module (MS3000) MM3-2AUI, MM3-4FXM4 2 AUI interfaces/4 ST interfaces 10/100 Mbit/s support IEEE 1588 PTP protocol (RT model), some with Confocal Coating

Media module (MS4000) MM4-4TX/SFP, MM4-2TX/SFP 4 RJ45+4 SFP slots/2 RJ45+2 SFP slots 1000 Mbit/s SFP module and TP port are mutually exclusive, and inserting SFP automatically disables the corresponding TP port

Expansion module MB20 (formerly MB-2T) expands 2 media module slots - supports live installation, compatible with basic modules such as MS201600, MS3124-4, etc

Functional module PoE module (MM22-T1T1T1T1) with 4 RJ45 ports, supporting IEEE 802.3af 10/100 Mbit/s 48V DC power supply, powered by Twisted Pair cable to the terminal

Functional module digital I/O module (MM24) with 4 digital inputs and 4 digital outputs - connects various actuators in industrial scenarios

SFP optical module M-FAST-SFP (Fast Ethernet), M-SFP (Gigabit Ethernet) multi-mode/single-mode optional, LC interface 100/1000 Mbit/s transmission distance 0~176km (depending on model), laser level 1

Installation and operation specifications

General Installation Principles

Supports hot swapping: Media modules, MB20 expansion modules, and SFP modules can all be installed/removed during device operation

Tool requirements: It is prohibited to insert sharp objects (such as thin screwdrivers, wires, etc.) into the interior of the equipment to avoid electric shock

Personnel qualifications: Electrical installation related work must be operated by professionally trained personnel

Key module installation steps

Media module: Remove the MICE device interface cover → Insert the module → Tighten the 4 corner screws → Check the switch settings → Connect the signal line

SFP module: Remove slot cover → Close locking device and insert module → Confirm buckle locking (only use HIRSCHMANN original SFP)

MB20 expansion module: Loosen the screws on both sides of the base module → Remove the side cover → Dock the guide rail to the base module → Retighten the screws

Special requirements for PoE modules

Power supply: Use HIRSCHMANN RPS60/48V EEC power supply, output power<100W, current<2A

Wiring: 3-core terminal block, cable length<3m, wire diameter suitable for 1.5A current

Terminal: Only connect IEEE 802.3af compatible devices, using 4 pairs of Twisted Pair cables

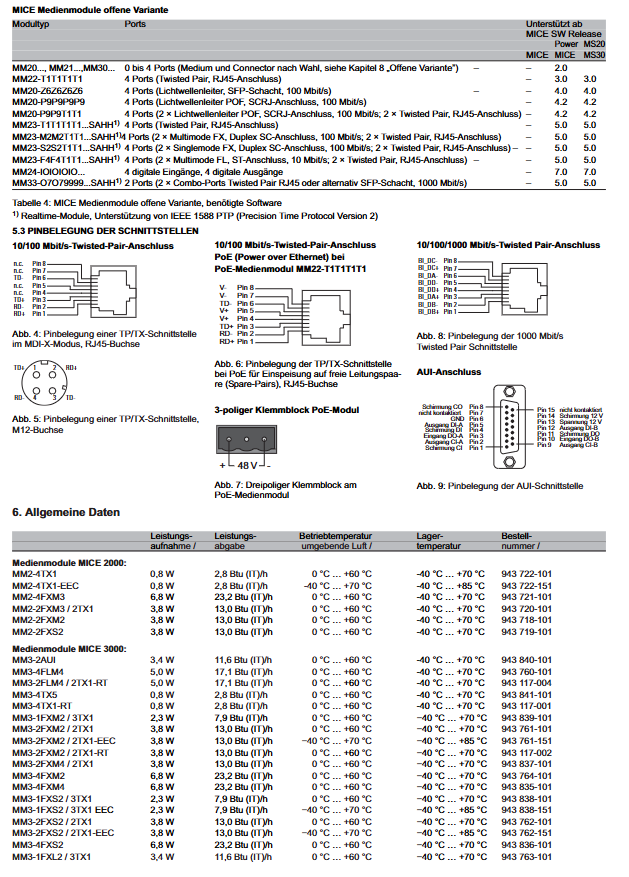

Core technical data

Physical and environmental parameters

Dimensions (width x height x depth): 38mm x 110mm x 79mm (MM2 series), 38mm x 110mm x 119mm (MM3/MM4 series)

Working temperature: Standard type 0~60 ℃, Extended type (T/E) -40~70 ℃

Storage temperature: Standard -40~70 ℃, Extended -40~85 ℃

Humidity: 10%~95% (no condensation), altitude ≤ 2000m (795hPa), pollution level 2

Transmission performance parameters

Port type, transmission medium, maximum distance, system attenuation

1000BASE-T (TP) cat5e cable 100m-

100BASE-FX (multimode LWL) 50/125 µ m 5km 0~8dB

100BASE-FX (Single Mode LWL) 9/125 µ m 30km 0~16dB

Gigabit SFP-LH+(single-mode) 9/125 µ m 120km 15~32dB

Electromagnetic Compatibility (EMC)

Radiation interference: EN 55022 Class A, FCC Part 15 Class A

Anti interference capability: electrostatic discharge ± 6kV (contact)/± 8kV (air), electromagnetic radiation 10-35V/m, surge ± 4kV (power supply)/± 2kV (data)

Safety and environmental requirements

Safety Specifications

Explosion proof warning: Explosion hazardous areas require power-off operation, and replacing components may affect Class I, Division 2 compatibility

ESD protection: The module contains electrostatic sensitive components and must comply with the IEC/TR 61340-5-2 standard

Voltage limitation: Only use NEC Class 2 power supply through MICE switch module

Environmental Protection and Recycling

After the product is scrapped, it needs to be classified and recycled according to local electronic waste regulations

Compliant with RoHS directive, restricting the use of hazardous substances
