Document Overview

Document positioning: Official reference manual for Hirschmann Industrial Ethernet Switch graphical user interface (GUI) and command-line interface (CLI), applicable to RS20/RS30/RS40, MS20/MS30 and other series devices, version L2E Rel.9.0 (released in February 2015).

Core objective: To provide technical personnel with a complete operation guide for equipment configuration, monitoring, and diagnosis, ensuring network reliability, security, and compatibility in industrial scenarios.

Supporting resources: It needs to be used in conjunction with installation manuals, basic configuration manuals, redundant configuration manuals, etc., and supports the integration of HiVision network management software.

GUI core functional modules

(1) Basic Settings

System configuration: device status monitoring, system name/location settings, temperature threshold configuration (supporting working temperatures of 0 ℃~60 ℃).

Module management: Module insertion and removal configuration, slot activation/deactivation for modular devices, supporting MS, PowerMICE and other series of modular devices.

Network configuration: IP parameter acquisition mode (BOOTP/DHCP/local), VLAN ID allocation, HiDiscovery protocol activation.

Software update: Supports TFTP/HTTP/ACA automatic updates, including firmware and boot code updates, requiring cold start to take effect.

Port configuration: Port enable/disable, auto negotiation, rate/duplex mode settings, supporting 10/100/1000Mbit/s rates.

PoE configuration: IEEE 802.3af standard, supports port PoE enable/disable, power threshold setting (default is 15.4W per port).

Configuration loading/saving: Supports local/URL/PC (XML/binary format) storage, supports ACA adapter configuration migration.

(2) Security configuration

Password management: SNMP v3 read-write password setting (5-32 characters), supports encrypted request transmission.

SNMP access: SNMP v1/v2 community configuration, supports IP address range restriction and permission partitioning (read-only/read-write).

Remote access: Telnet/Web server enabled/disabled, supports port level access control.

Port security: MAC/IP based access control, supporting automatic learning (up to 1-50 addresses) and violation actions (traps/port disabling).

Login banner: Supports custom banner for login/CLI interface (up to 255/2048 characters).

(3) Time synchronization

Basic settings: System time (UTC/local offset), time source priority (PTP>SNTP>local).

SNTP configuration: Supports client/server mode, server request interval 1-3600s (default 30s), supports broadcast/multicast reception.

PTP configuration: IEEE 802.1588 standard, supports v1/v2 versions, includes boundary clock (BC) and transparent clock (TC) modes, synchronization threshold 30-5000ns.

(4) Exchange function

Global configuration: MAC address aging time 15-3825s (default 30s), flow control enabled/disabled.

MAC filtering: Supports static/dynamic MAC address filtering, with a maximum of 100 static filtering rules.

Rate limit: Port input/output traffic limit, supporting frame type division (broadcast/multicast/unknown unicast).

IGMP snooping: Supports v1/v2/v3 versions, multicast group aging time 3-3600s (default 260s), supports unknown multicast forwarding control.

VLAN configuration: IEEE 802.1Q standard, VLAN ID range 1-4042, supports static VLAN creation and port tagging configuration.

(5) QoS/Priority

Global configuration: Manage packet VLAN priority (0-7) and IP DSCP value (0-63) settings.

Port priority: Each port has a priority of 0-7, mapped to 4 traffic classes.

Mapping rules: 802.1D/p priority mapping, IP DSCP mapping, supporting trust mode (untrusted/trustDot1p/trustIpDscp).

(6) Redundant configuration

Ring network redundancy:

HIPER Ring: Supports 50 devices, reconstruction time<80ms, supports standard/accelerated recovery mode.

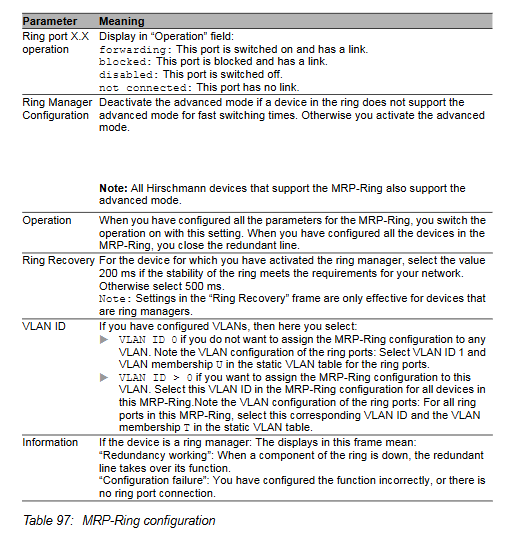

MRP Ring: IEC 62439 standard, reconstruction time 80-500ms, supports VLAN binding.

Ring network/network coupling: supports single switch/dual switch coupling, and supports control line redundancy.

Spanning tree: RSTP protocol, supports bridge priority configuration (0-61440, step size 4096), convergence time<1s.

(7) Diagnostic tools

Log monitoring: Syslog/Rap logs, supporting forwarding from 8 Syslog servers, with configurable log levels.

Port diagnosis: Port statistics, network load (30s sampling), SFP module status (temperature/transmit/receive power).

Topology discovery: LLDP protocol supports collecting neighbor device information (MAC/IP/port description).

Port mirroring: Supports mirroring 8 source ports to 1 destination port without affecting source port traffic.

Other tools: device status monitoring, signal contact configuration, IP address conflict detection, self-test (RAM testing/restart control).

(8) Advanced features

DHCP Relay: Supports forwarding DHCP requests to 16 DHCP servers and supports Option 82 field.

Industrial protocols: PROFINET (GSDML file download), EtherNet/IP (EDS file download), IEC61850 MMS protocol configuration.

DIP switch coverage: Supports software coverage and hardware DIP switch settings, suitable for devices such as MICE and PowerMICE.

CLI core functional module

(1) Command Fundamentals

Command structure: Supports mandatory parameters (<>), optional parameters ([]), selection parameters (|), and command completion (Tab/Space).

Special keys: Supports Ctrl series shortcut keys (such as Ctrl-A to jump to the beginning of a line, Ctrl-H to view history commands).

Pattern operation: divided into user execution, privileged execution, global configuration, VLAN configuration and other modes, supporting the "no" command to revoke configuration.

(2) Quick Start

Device login: default username "admin", password "private", supports privileged EXEC mode switching (enable command).

System configuration: IP address setting (network parms command), password modification (users passwd command), configuration saving (copy running config startup config command).

(3) Core Command Classification

Command Category Key Command Example Function Description

System information show sysinfo to view device status, software version, CPU utilization, etc

Network configuration network parms<ip><mask>[gw] Configure IP address, subnet mask, gateway

VLAN configuration VLAN<id>, VLAN name<id><name>Create VLAN, modify VLAN name

Redundant configuration of hip er ring, spanning tree configuration of hip er ring, spanning tree protocol

Security Configuration: SNMP Server Community<name>Configure SNMP Community Name

Diagnostic tool show interface utilization to view port utilization

System tools reboot, clear config reboot device, restore factory configuration

Technical parameters and compliance standards

(1) Key technical parameters

Specific indicators for parameter categories

The maximum number of MAC address tables is 8000 (16000 for PowerMICE/MACH4000)

VLAN supports up to 255 concurrent instances, VLAN ID 1-4042

Port speed 10/100/1000Mbit/s, supports full duplex/half duplex

Redundant reconstruction time HIPER Ring/MRP Ring<80ms

Working temperature: 0 ℃~60 ℃ (standard type), -40 ℃~70 ℃ (extended type)

(2) Compliance standards

IEEE standards: 802.1AB (LLDP), 802.1af (PoE), 802.1D/Q (Spanning Tree/VLAN).

IEC standard: IEC 62439 (Industrial Network Redundancy).

RFC standards: RFC 768 (UDP), RFC 1157 (SNPv1), RFC 2570 (SNPv3), etc.
