Moog G128-809A is a compact DIN rail mounted switch mode power supply that can provide a stable 24VDC low ripple output from a wide range of AC and DC inputs. It can sustain an output current of up to 2.9A at 40 ° C and has features such as 4kV input isolation, no-load fail safe, and short circuit protection. It has an efficiency of * *>80% and an average fault free working time of 500000 hours * *. It also supports parallel redundant operation, with a protection level of IP20 and a working temperature range of -25 to+60 ° C. The overall design is highly reliable and suitable for industrial scenarios.

Product Overview

Moog G128-809A is a power supply product designed with high reliability and efficient switching regulators. It is a compact DIN rail installation structure that can convert AC or DC input power into a regulated 24VDC output. It is suitable for powering equipment with a combined continuous current requirement of up to 2.9A at 40 ° C. The overall design is suitable for the power supply needs of industrial scenarios.

Core product features

This power supply has multiple industrial grade core features to ensure power supply stability and equipment safety:

Input adaptability: Supports wide range AC or DC input and adapts to various power supply environments;

Output performance: Provides stable voltage and 24VDC low ripple output to meet the power supply requirements of precision equipment;

Safety protection: equipped with no-load fail safe and short-circuit protection functions, 4kV input power isolation, significantly reducing the risk of power supply failures;

Efficient and highly reliable: Energy conversion efficiency * *>80%, with an average time between failures (MTBF) of 500000 hours * *;

Scalability: Supports parallel connections to achieve redundant operation and improve the fault tolerance of the power supply system;

Certification and Compliance: Compliant with industrial electromagnetic compatibility standards through CE marking.

Detailed technical specifications

Specific parameters of specification items

Continuous output current of 2.9A at 40 ° C

The maximum power consumption of the nominal load is 10W

Protection type IP 20

Operating temperature range -25 to+60 ° C (refer to output current specifications)

Product dimensions (length x height x depth) 100W x 108H x 45D (unit: mm)

Product weight 250g

Front panel indicator light green Vs power LED, displaying power status

Installation method: DIN rail installation

Cable grounding requirements: The shielding layer of the cable should be connected to the outer shell, and the cable gland/chassis should be grounded

Certification and Standard Compliance

The product has passed CE marking certification and complies with the following industrial standards:

Electromagnetic emission standard: EN50081.2;

Electromagnetic immunity standard: EN61000-6-2.

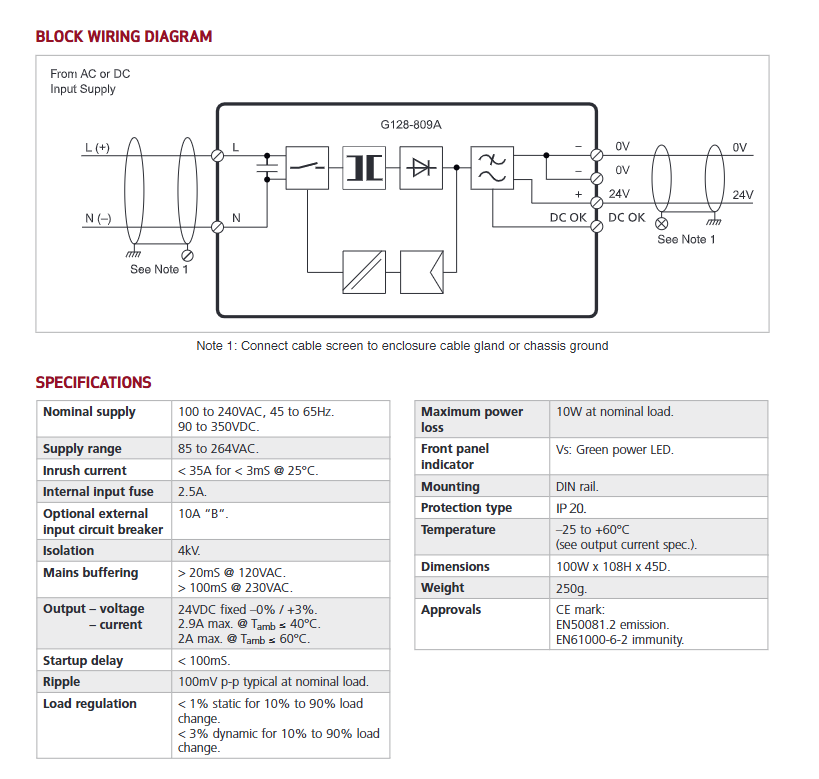

Wiring and Additional Instructions

Wiring interface: including L (+), N (-), OV, 24V, DCOKI (DC OK) and other wiring terminals, adapted to industrial wiring specifications;

Grounding requirements: The cable shielding layer must be connected to the shell cable gland or chassis grounding (Note 1 mandatory requirement);

Data Description: This technical data is based on currently available information, and Moog reserves the right to modify specifications at any time. There may be differences in specifications for specific systems/applications.
