Product Overview

System: Emerson Ovation Distributed Control System (DCS) is the core control unit of the system, designed specifically for critical task scenarios such as power generation and water supply and drainage plants that require high reliability.

Core positioning: Execute simple/complex adjustment and sequential control strategies, complete core functions such as data acquisition, I/O interface adaptation, event processing, etc., to ensure the precise operation of industrial processes.

Key certifications: IEC 61131-3 standard compliance (Unified Programming Configuration Mechanism), Achilles Level 1 certification (Industrial Equipment Network Robustness Certification).

Core functional parameters

Specific details of key information for functional categories

Control task capability: Control a maximum of 5 tasks, which can be executed simultaneously

Cycle speed range Ovation 3.6 and below: 2 pre-defined (1 second, 100 milliseconds)+3 user-defined; Ovation 3.7 and above: all 5 user-defined, ranging from 10 milliseconds to 300 seconds (increasing by 10 milliseconds)

The highest number of origin points for data processing capability is 32000

Event sequence resolution of 1 millisecond, recording the sequence of digital input state changes

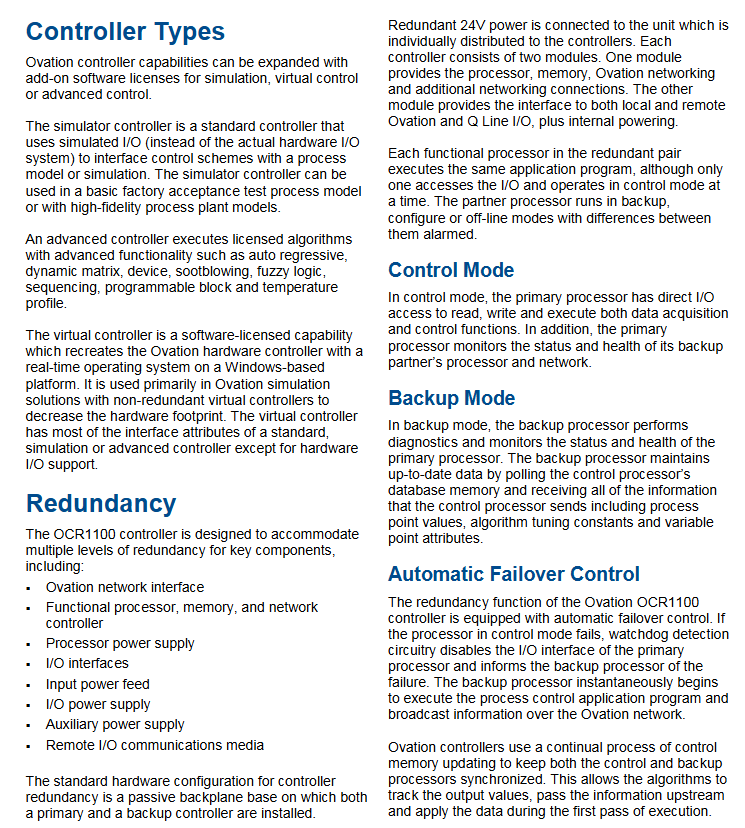

Redundancy and Fault Switching Redundancy Components Network interfaces, processors, power supplies, I/O interfaces, and other key component redundancies

Switching feature: automatic fault switching, achieving bumpless switching, supporting automatic recovery of backup roles after fault repair

Alarm processing threshold types: 6 independent alarm thresholds (4 high limits+4 low limits, including user-defined and incremental thresholds)

The processing logic is defined according to the process point database, supporting single node alarm delay, and the workstation can display in order of importance

Hardware and Architecture Characteristics

Core hardware parameters:

Processor: Intel based, base frequency 1.1 GHz

Storage configuration: 1 Gb Flash+256 Mb RAM

Network interface: 4 10/100 Mb Ethernet ports, two options: ① 4 x RJ45; ② 1 x RJ45+3 x SFP fiber optic

Power supply requirement: 24 VDC 40W

Physical dimensions: 20 "wide x 8" high x 7 "deep

Environmental adaptability: Operating temperature 0-60 ℃ (4 x RJ45)/0-50 ℃ (fiber optic option), humidity 0-95% RH (non condensing)

Architectural features:

Open architecture: using CompactPCI ®  I-bus PC design, supporting technology upgrades and software investment protection

Operating System: Multi tasking real-time operating system, communicating through TCP/IP protocol, supporting resource management and routing functions

Hardware compatibility: Shared packaging design with the previous generation OCR400, supports backward compatibility, can upgrade old model control logic and database through migration program (requires Ovation 3.5 and above system support)

I/O compatibility and scalability

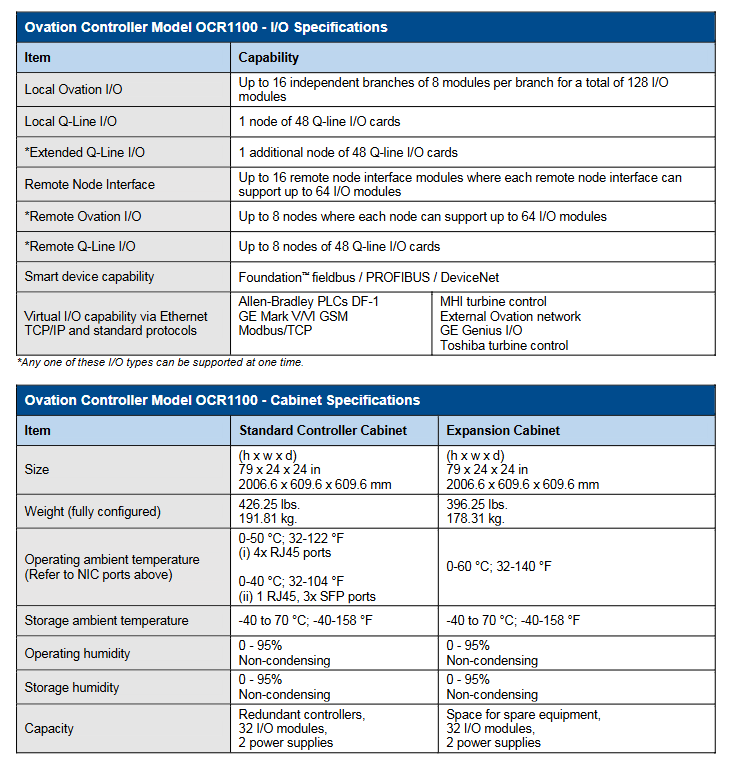

I/O Type Support Specification Remarks

Local Ovation I/O can have up to 16 independent branches, with 8 modules per branch, for a total of 128 I/O modules

Local Q-Line I/O 1 node, containing 48 Q-Line I/O cards

Expand Q-Line I/O with an additional node, including 48 Q-Line I/O cards, supporting only one type of expansion I/O at a time

Remote node interface can support up to 16 remote node interface modules, each supporting 64 I/O modules

Remote Ovation I/O supports up to 8 nodes, with each node supporting 64 I/O modules. Only one remote I/O type is supported at a time

Remote Q-Line I/O can have up to 8 nodes, each containing 48 Q-Line I/O cards. Only one remote I/O type is supported at a time

Intelligent devices are compatible with Foundation fieldbus PROFIBUS、DeviceNet

Virtual I/O (Ethernet protocol) Allen Bradley PLCs, Modbus/TCP, GE Mark V/VI, etc. are compatible with third-party OEM systems

Deployment and Cabinet Configuration

Installation method: DIN rail installation, which can flexibly adapt to different sites, environments, and space requirements

Cabinet type:

|Cabinet type | Size (h × w × d) | Weight (full configuration) | Capacity | Operating temperature|

|Standard Controller Cabinet | 79 x 24 x 24 inches (2006.6 x 609.6 x 609.6mm) | 426.25 lbs (191.81kg) | Redundant Controller, 32 I/O Modules, 2 Power Supplies | Same NIC Port Requirements (0-50 ℃/0-40 ℃)|

|Expansion cabinet | 79 x 24 x 24 inches (2006.6 x 609.6 x 609.6mm) | 396.25 lbs (178.31kg) | Backup equipment, 32 I/O modules, 2 power supplies | 0-60 ℃|

Customization options: Support OEM customization such as front-end single access, special size/material, and environmental grade adaptation
