Siemens SENTRON 5SY6106-7 miniature circuit breaker

Siemens SENTRON 5SY6106-7 miniature circuit breaker

Siemens SENTRON 5SY6106-7 is a 1-pole C-type miniature circuit breaker with a rated voltage of 230/400V AC, a rated current of 6A, and a breaking capacity of 6kA (EN 60898 standard). It has core characteristics such as anti finger touch, halogen-free, and sealable. It supports 0.75-35mm ² conductor connections, with an installation depth of only 70mm and a protection level of IP20. The working temperature range is -25 ℃~55 ℃, suitable for circuit overload and short circuit protection in infrastructure and industrial scenarios.

Product basic information

Notes on Core Parameters of the Project

Brand SENTRON Siemens Low Voltage Product Series

Model 5SY6106-7 Unique Product Identification

Product type: Miniature circuit breaker

Pole number design 1 pole (1P) without neutral conductor switching function

Applicable scenarios: Infrastructure and industrial fields comply with EN 60204-1 main switch requirements

Core functional circuit overload protection, short circuit protection, energy limit level 3

Key electrical parameters

1. Voltage parameters

Voltage type specification numerical standard basis

AC rated voltage (single-phase) 230V normal operating voltage

AC rated voltage (multi-phase) 400V three-phase circuit adaptation

DC maximum working voltage 72V rated DC voltage 60V

Unified specification for insulation voltage (Ui) 440V single-phase/multi-phase AC

Overvoltage category 3 is suitable for complex power grid environments

2. Current parameters

Description of rated current under working conditions

Standard rated value 6A reference working current

Environmental temperature 40 ℃ 5.63A Temperature increase Current decrease

Environmental temperature of 50 ℃ 5.24A. The derating coefficient increases with temperature

Environmental temperature 55 ℃ 5.04A, maximum working temperature corresponding current

Tripping Characteristics Class C I-trip Setting Current 8 × In

3. Breaking ability

Applicable scenarios of standard specifications for breaking current

EN 60898 6KA European Regional Standard

IEC 60947-2 30kA International General Standard

UL 1077/CSA C22.2 No.235 5kA North American Regional Standard

DC (IEC 60947-2) 15kA DC circuit protection

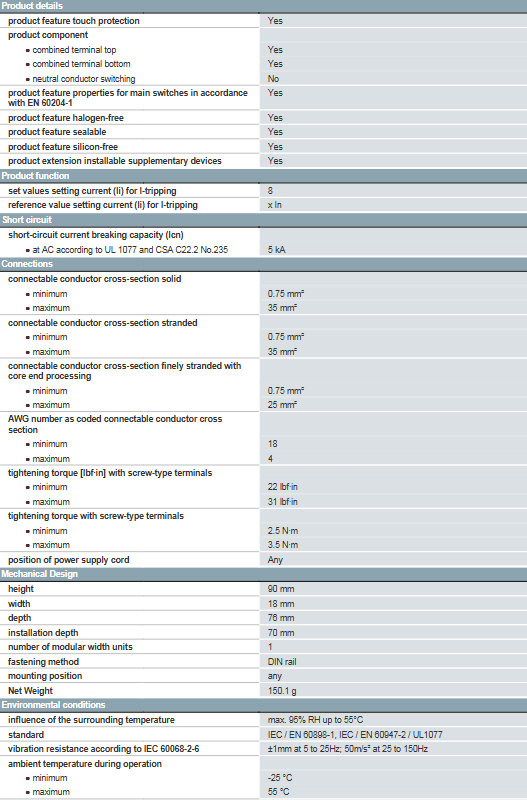

Mechanical Structure and Installation

1. Size and weight

Dimension numerical units

Height 90 mm

Width 18 mm

Depth 76 mm

Installation depth 70 mm

Module width unit 1

Net weight 150.1 g

2. Installation and Connection

Specific project requirements and details

Installation method DIN rail installation General industrial installation standard

Installation position is not limited by installation angle in any direction

Conductor connection (solid) 0.75-35mm ² minimum 0.75mm ², maximum 35mm ²

Conductor connection (multi strand) 0.75-35mm ² must comply with AWG 4-18 specifications

Conductor connection (thin multi strand) 0.75-25mm ² requires core end treatment

Tightening torque of 2.5-3.5N · m corresponds to 22-31lbf in

Core characteristics and environmental requirements

1. Core features of the product

Anti finger touch design: ensures operational safety and complies with electrical safety standards

Halogen free material: environmentally friendly and pollution-free, suitable for sensitive environments

Sealed feature: Supports sealing treatment to enhance environmental adaptability

Silicon free components: Avoiding risks related to silicon pollution

Scalable attachments: support installation of supplementary devices to enhance functionality and expandability

Mechanical lifespan: 10000 operating cycles, strong durability

2. Environment and Certification

Project specifications require relevant standards

Working environment temperature -25 ℃~55 ℃ Normal operating temperature range

Storage environment temperature -40 ℃~75 ℃ Transportation and storage temperature

Relative humidity up to 95% (below 55 ℃) without condensation requirement

Vibration resistance ± 1mm at 5-25Hz; 50m/s ² at 25-150Hz IEC 60068-2-6

Protection level IP20 with protective capability when connected to conductors

Certification qualifications such as CE, CCC, EG Konf., LRS, etc. comply with safety standards from multiple countries

Implement international and European unified standards such as IEC/EN 60898-1 and IEC/EN 60947-2

Energy consumption and others

Thermal power consumption at rated AC current: 1.6W

Pollution level: Level 3, suitable for complex industrial environments

Power supply frequency: 50/60Hz, compatible with global grid frequencies
