The SIEMENS 5SN series is a complete product family that covers all scenarios of terminal power distribution. Its core includes six categories: small circuit breakers, residual current protection devices, isolation switches, surge protectors, modular switches and control products, and small distribution boxes. It has four core advantages: dust-proof and finger proof, sliding buckle installation, energy saving and low consumption, and compact design. Its current coverage is 0.3A-125A, and the highest breaking capacity is 10kA. It is suitable for residential, industrial, commercial buildings and other scenarios. It has passed multiple standards certifications such as CCC and IEC, providing a one-stop solution from power supply protection to terminal power distribution.

Core product classification and technical parameters

1. Miniature Circuit Breaker (Core Product Line)

Product Series Core Models Rated Current Breaking Capacity Pole Number Tripping Curve Key Features

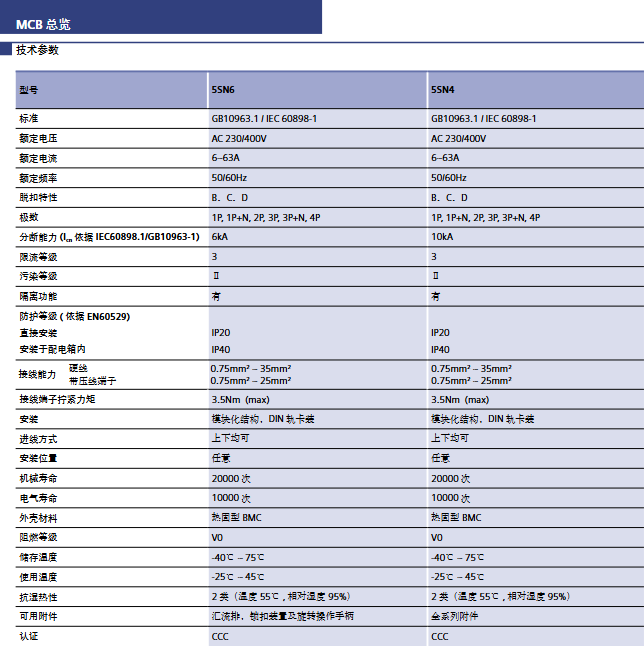

5SN6 5SN61066CN and other 6A to 6A 6KA 1P/1P+N/2P/3P+N/4P B/C/D standard types, suitable for conventional scenarios

5SN4, 5SN41066CN, and other 6A-3A 10kA 1P/1P+N/2P/3P+N/4P B/C/D high breaking types, supporting a full range of accessories

5SN30/5SN60 5SN30067CN and other 6A-40A 4.5kA/6kA 1P+N C compact models (18mm module), saving space

5SP4 (heavy-duty type) 5SP41807, etc. 80A-125A 10kA 1P/2P/3P/4P C/D high current load, module 1.5-6

2. Residual current protection device

Product Type Core Model Rated Current Remaining Operating Current Pole Number Protection Type Key Features

Residual current protection circuit breaker (5SU9) 5SU93561CN06, etc., ranging from 6A to 6A, 30mA, 1P+N/2P/3P/4P, AC/A electronic, with a breaking capacity of 4.5kA/6kA

Compact residual current protection circuit breaker (5SV9) 5SV9313-1CN06, 6A-32A 30mA 1P+N AC/A 18mm module, suitable for limited space scenarios

Residual current protection module (5SM9/5SM2) 5SM93230, etc. 0.3A-63A 30mA/100mA/300mA 2P/3P/4P AC/A, only compatible with 5SN4 series, electromagnetic/electronic optional

3. Auxiliary protection and control products

Product Category Core Model Key Parameters Core Functions Applicable Scenarios

Isolation switch (5TL1), 5TL11323CN and other 32A/63A/100A line isolation, on-off control, and distribution system isolation protection

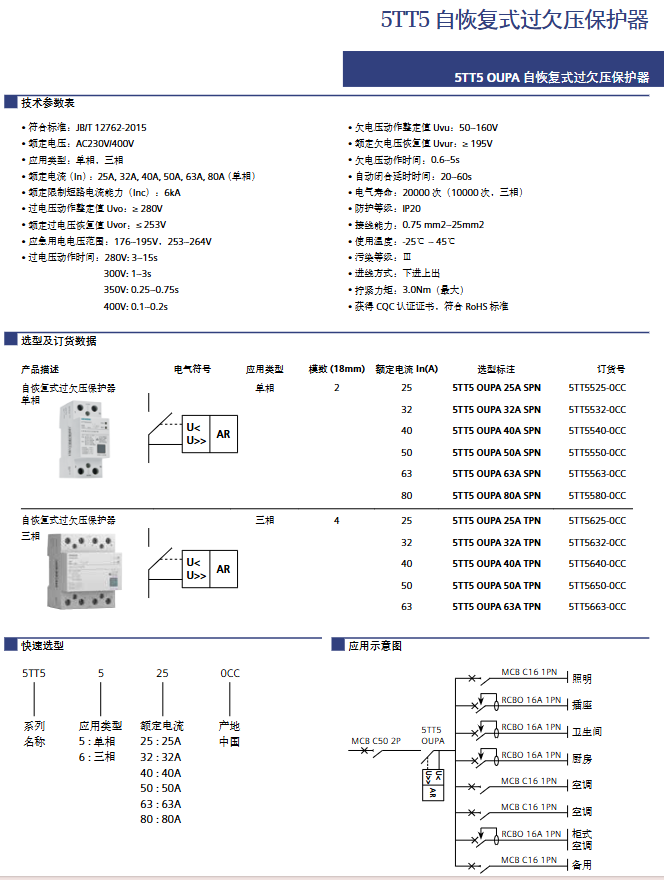

Self recovering overvoltage and undervoltage protector (5TT5), 5TT5525-0CC, etc., 25A-80A (single-phase), automatic cut-off/restoration of overvoltage and undervoltage protection for residential and commercial buildings

Surge protector (5SD74 T2) 5SD7474-1CC01, 20kA-120kA lightning protection, surge protection main distribution cabinet, distribution cabinet, etc

Modular contactor (5TT5) 5TT5800-0 and other 20A-63A motor control, line switch industrial equipment, air conditioning system

Power supply for 10A-25A terminal equipment such as rail sockets (5TE6), 5TE6806-0CC, etc. for commercial and industrial sites

4. Small distribution box (SIMBOX series)

Series Modular Width Rated Current Protection Level Installation Method Material

SIMBOX PS 7-40 Modular 63A/125A IP30 Surface/Concealed Metal Bottom Box+Plastic Cover

SIMBOX MB 8-20 module 63A IP40 concealed all metal material

SIMBOX 63 12-48 module 63A/125A IP30 concealed metal bottom box+metal cover

Core advantages of the product

safety protection

Dustproof and finger touch resistant design: Insulation protection for wiring terminals to reduce the risk of electric shock.

High current limit level: Level 3 energy limit, maximum breaking capacity of 10kA, quickly cutting off fault current.

Multiple protection types: residual current protection (AC/A type), overvoltage and undervoltage protection, and full coverage of surge protection.

Installation and Operation

Sliding buckle design: tool free installation and disassembly, improving construction efficiency.

Compact design: 18mm modular structure, compact product with only 1 module width, saving distribution box space.

Flexible adaptation: Up and down incoming lines are optional, and can be installed in any position to meet different wiring requirements.

Energy saving and durability

Low power consumption: The measured power consumption is 1/3-1/2 of the standard definition, and the energy-saving effect is significant.

Long lifespan: Mechanical lifespan up to 20000 cycles, electrical lifespan up to 10000 cycles, suitable for frequent operation.

Environmental adaptation: working temperature -25 ℃~45 ℃, storage temperature -40 ℃~75 ℃, supporting high-altitude environment (within 5000m altitude).

Application scenarios and solutions

1. Residential building adaptation plan

Selection of distribution box for core configuration of residential electricity load

Small residential 4KW incoming switch 5SN6-C40-1PN, branch circuit 5SV9 residual current protection circuit breaker SIMBOX 1 * 8 positions

6KW incoming switch 5SN6-C40-2P for medium-sized residential buildings, equipped with 4 circuits and 5SV9 protection SIMBOX 1 * 12 positions

Large residential 8KW incoming switch 5SN6-C63-2P, 5 circuits with 5SU9 protection SIMBOX 1 * 16 positions

Duplex/villa>10KW main/distribution electrical box scheme, including surge protector 5SD74 SIMBOX 1 * 15/16 bits

2. General scenario adaptation

Industrial field: 5SN4 high breaking circuit breaker+5TT5 contactor, suitable for motor and equipment protection.

Commercial building: 5SN30 compact circuit breaker+5TE6 rail socket, meeting the power supply needs of office equipment.

Special scenario: In high-altitude environments (within an altitude of 5000m), the selection should be based on a correction factor, with a minimum correction factor of 0.87 for rated current.

Key attachments and certification

1. Core attachments

Attachment Type Core Model Function Adaptation Product

Auxiliary/Fault Signal Contact 5ST3010-0CC Status Indication, Fault Alarm Full Series Circuit Breaker

5ST3030 equal excitation/undervoltage/overvoltage release 5SN4 series

Simplified wiring full series circuit breakers such as busbar 5ST3700-0CC

Locking device 5ST3806, etc. to prevent misoperation of the entire series of circuit breakers

2. Certification standards

Domestic certification: CCC, CQC, compliant with GB standards (GB10963.1, GB16917, etc.).

International certifications: IEC/EN, VDE, UL508, etc., supporting global use.

Environmental standards: RoHS compliant, available in halogen-free and silicon free materials.
