Regulations

Regulations Concerning the Setting up of Installa.

tions

Apart from the basic "Regulations for the Setting up of

Power Units”VDE" 0100 and for "The Rating of Creep-

age Paths and Air Gaps"VDE 0110 the regulations

"The Equipment of Power Units with Electrical Compo-

nents”VDE 0160 in connection with VDE 0660. part

500, have to be taken into due consideration. Further

attention has to be paid to VDE 0113 in case of the

control of working and processing machines. If operat-

ing eiements are to be arranged near shock-hazard

parts with protection against electrical shock, VDE

0106. part 100. is relevant.

The user has to ensure that the units as well as the

associated components have to be installed according

to these regulations. Respectively valid safety reguia-

tions, e.g. regulation for the prevention of accidents

and the law concerning technical working material, are

valid for machines and units connected as well.

ABB Procontic units have been built according to VDE

regulation 0160. The protection against direct touching

as demanded by chapter 5.5.1 of this VDE regulation

has to be satisfied by the user, e.g. at installing of

switch cabinet,

ABB Procontic units have been designed for operation

according to insulation class A of VDE 0110. If consid-

erable polution is expected during operations, the units

have to be installed in housings of the respective kind

of protection.

· VDE stands for "Association of German Electrical

Engineers".

Note: Please observe the national regulations for the

instaliation of electrical equipments, which are

valid in your country.

ABB Schalt- und Steuerungstechnik GmbH

ABB Procontic T300 has the following structure and ca-

pabilities divided according to function blocks:

ABB Procontic T300, function block PLC

This function block is generally the central block for

solving an automation probiem as regards the control.

It consists of a central unit 35 ZE 93 and various binary

and analog in- and output units as an interface for the

process.

An extensive command reserve is available for the

use, testing and communication with other PLC pro-

cessors.

Programming the user programs can be carried out via

an IBM compatible personal computer (PC) and the

ABB programming software either in the

- Instruction list

- Function block diagram or

- Ladder diagram.

The language scope for compiling the user programs

includes the following functions, among others:

- Binary and word processing

- Comparison functions

- Function blocks including control biocks,

- Text outputs(messages)

- Axis control.

ABB Procontic T300, function block CNC

The function block CNC, for positioning or path control,

is capable of controlling an almost infinite number of

axes or moving according to a given path due to the

possibility of the multiple use.

Axis cards and positioning modules are used here as

I/O units.

Process graphics module: 07 PM 11r2

Operator Station: 35b93R3

Operator Station: 35b94r1

Operator Station: 35b95r2

Display configuration: 935 bk70R402

Editor for text display: 935ta10r102

Analog output module: 35AA92C-EGJR5143000R0002

Digital interface board: 35DC90R20GJR5133300R20

The paths to be moved can be programmed in the ab-

solute measuring system or the relative measuring

system. The positioning module moves a maximum of

16 axes in a path-controlled way. The path control

module can interpolate a maximum of 4 axes; 3 axes in

a linear way or 2 axes in a circular way.

Programming the function block CNC is carried out in

accordance with DIN 66025. Every function can be pro-

grammed individually via a central interface. A person-

al computer or a standard terminal can be used as the

programming unit. DNC transfer including set operat-

ing modes and manual functions is also possible.

The data exchange with the function block PLC is car-

ried out via the multiprocessor-based control paralle!

bus.

ABB Procontic T300, function block IC

The industrial computer is a computer, which can be

used in an industrial environment for processing auto-

mation tasks.

The scope of use of the industrial computer includes

data processing,man-machine communication and

networking.

Programming the industrial computer is carried out in

the usual high-level languages like PASCAL, C. FOR-

TRAN，etc. The program compilation can be carried

out on an IBM compatible personal computer, an INTEL

development system or on the industrial computer it-

self.

A programming system known to the programmer is

used. The operating system manages the operating

means typical for a computer, like, e.g.. the memory

tasks. communication means, the printer and the bulk

storage device.

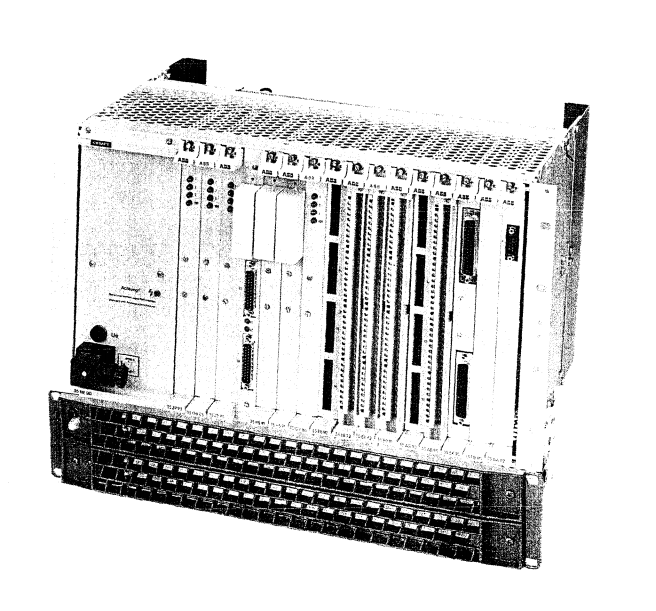

The ABB Procontic T300 is a modular automation sys-

tem from the ABB Procontic tamily, which was devel-

oped and produced with very modern pointsof view.

ABB procontic T300 fulfills all the main automation

tasks in the medium and upper performance levels.
