UniOP eTOP306 Human Computer Interface

UniOP eTOP306 Industrial Touch Screen

Product Overview

Brand and Series: UniOP eTOP306 belongs to the eTOP 300 series Human Machine Interface (HMI), produced by Exor International S.p.A in Italy and provided by ELECTROMATE for sales and after-sales service. The document version is Ver.1.6, updated on February 17, 2014.

Core positioning: Designed specifically for cost sensitive applications, integrating cutting-edge functionality, performance, and exquisite appearance, it is an ideal HMI choice for factory automation and building automation scenarios.

Design highlight: Ultra thin design, installation depth less than 50mm, balancing functionality and installation space requirements.

Core hardware parameters

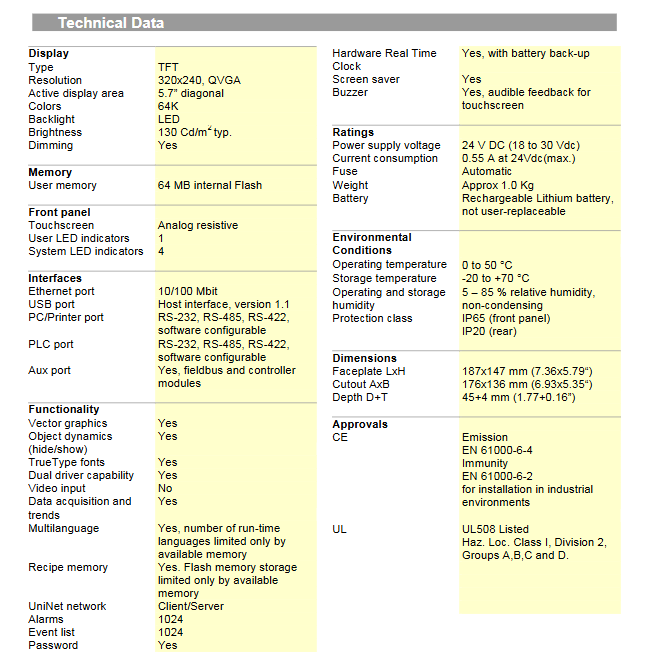

The hardware configuration of this product focuses on the practicality and stability of industrial scenarios, with clear key parameters and adaptability to industrial environments. The core hardware information is shown in the table below:

Key notes on specific parameters of hardware category

Display module 5.7-inch TFT color screen, 320x240 (QVGA) resolution, 64K colors, LED backlight; Brightness of 130 Cd/m ² (typical value), supports dimming industrial grade display, adapts to different on-site lighting environments

Touch module resistive touch screen, equipped with buzzer, providing auditory feedback for touch screen operation. Industrial mainstream touch solution, with feedback for more intuitive operation

Storage Memory 64 MB Internal Flash User Memory Large capacity flash memory to meet program and data storage needs

One user LED indicator light and four system LED indicators clearly distinguish between device operation and user-defined status

Power supply specification 24 V DC (wide voltage 18~30 Vdc), 0.55 A @ 24Vdc (maximum value); Equipped with automatic fuses and industrial standard wide voltage power supply, suitable for on-site power environment

The physical dimensions of the installation opening are 176x136 mm (6.93x5.35 "), with an installation depth of 45+4 mm (1.77+0.16"), and a total weight of approximately 1.0 Kg. The ultra-thin design is lightweight and saves installation space

Clock and battery equipped with hardware real-time clock (with battery backup); The battery is a rechargeable lithium battery that can be replaced by non users to ensure accurate time related data. The battery is maintenance free for users

Interface configuration

ETOP306 interface configuration is rich, with commonly used industrial interfaces as standard, and supports optional module expansion, balancing the practicality of standard configuration and flexibility of expansion:

Standard core interface

Ethernet port: 10/100 Mbit rate, used for device communication, Designer software programming, and data transmission to the host;

USB interface: USB 1.1 host port, can be connected to a USB flash drive to achieve application/firmware upgrades and recipe data copying;

PC/Printer Port: Supports RS-232, RS-485, RS-422, software configurable, compatible with serial port printers/computers;

PLC port: Supports RS-232, RS-485, RS-422, software configurable, core communicates with PLC/controller;

Aux expansion port: used to connect fieldbus and controller modules, providing a foundation for functional expansion.

Expansion Interface: Supports optional TCM and SCM modules to connect various fieldbus systems and networks, adapting to different industrial bus environments.

Core functional characteristics

ETOP306 has comprehensive functions and adapts to various core requirements of industrial HMI. It has strong synergy between software and hardware, and its key functions can be divided into six categories:

Software programming and compatibility

Fully compatible with UniOP Designer 6 software, with powerful and intuitive programming methods;

Supports over 150 communication drivers and is compatible with the vast majority of industrial controllers/devices on the market;

Equipped with a powerful macro editor, the touch screen operation logic can be freely configured.

Graphic display capability

Capable of advanced vector graphics, supporting multi-layer display, object transparency, and richer image display;

Supports TrueType fonts for clearer text display;

Data can be displayed in various formats such as numbers, text, bar charts, analog meters, and graphic images, supporting dynamic object attributes (hidden/displayed).

Communication and network capabilities

Support dual drive communication, able to establish communication with two different devices simultaneously, improving interaction efficiency;

Equipped with Ethernet based UniNet network, supporting Client/Server mode, it can achieve data sharing between UniOP HMIs and also provide data services to the outside through UniNet OPC Server.

Data Processing and Storage

Support data collection and trend display, trend data can be transmitted to the host through Ethernet;

Capable of storing recipe data, recipe data can be transmitted to the host via Ethernet or copied to a USB flash drive, with storage capacity limited only by available memory;

Built in 1024 alarm lists and 1024 event lists, capable of recording abnormal and operational information on industrial sites.

Human Computer Interaction and Security

Supports multilingual applications (including Far Eastern languages), with the number of languages limited by available memory at runtime. All text can be exported in Unicode format for easy translation;

Equipped with 8-level password protection, providing multiple layers of security for device operation and data access;

The hardware real-time clock ensures accurate timestamps, supports screen saver function, and extends screen lifespan.

Data output and printing

Support outputting custom reports to serial printers, and the report format can be freely configured through Designer software;

Alarm and event information can be directly printed or transmitted to the host for unified management.

Product certification and selection of accessories

Authoritative certification: The product complies with industrial safety and electromagnetic compatibility standards and has obtained dual certification:

CE certification: meets the emission standard EN61000-6-4 and anti-interference standard EN61000-6-2, suitable for installation in industrial environments;

UL508 certification: classified as hazardous area Class I, Zone 2, A/B/C/D groups, suitable for some hazardous industrial scenarios.

Model selection: Divided into three types based on panel color, with consistent core functions and only differences in appearance:

ETOP306U101: White front panel;

ETOP306U201: Silver front panel;

ETOP306U301: Black front panel.

Special accessories: Two 5.7/7-inch eTOP touch screen special protective films are provided, both in a pack of 10 pieces:

PROT-12: Disposable protective film;

PROT-18: Disposable protective film with UV resistance, suitable for outdoor/strong light scenes.
