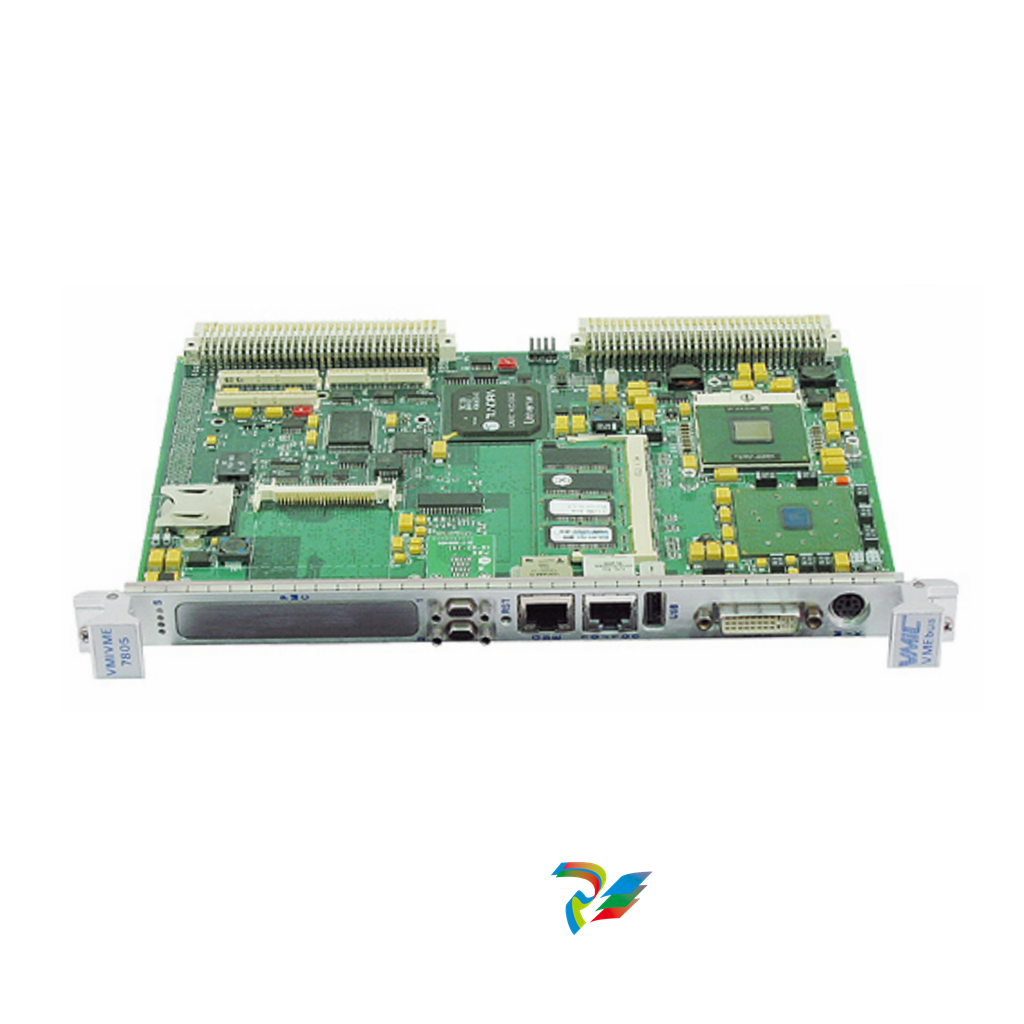

GE VMIVME-7805 VMEBus SBC Motherboard

From: | Author:Wang | Time :2024-12-17 | 203 visit: | 🔊 Click to read aloud ❚❚ ▶ | Share:

GE VMIVME-7805 VMEBus SBC Motherboard

3.8.2 Access levels (optional)
Access levels are set with the user interface, STAR Client, or optional VistaNET Name Service
Application (VNSA) interface. The user name and password information is maintained in a distributed
Access Control List (ACL).
The ACL also stores the access level for each user of the analyzer and STAR Data Management
System (STAR DMS). Refer to the STAR Data Management System (DMS) Operating Instructions for a
detailed description of ACL. There are three levels of access:
 Supervisor: Can modify the ACL
 Read/Write (Normal): Can modify all tables, with the exception of the ACL.
 Read Only (Limited): Can view, but not modify, any table of any device.
Supervisors can determine each user's required access level and enter the information into the ACL.
IMPORTANT NOTE: If the Information Bar states: “Login access Unsecured”, then all users have
full access (Supervisor level).
3.8.3 Subscriber list
The Subscriber Tab allows analysis results, status change, and analyzer events reporting to the
Reporter, the OPC, and the STAR Server. Their addresses must be entered in the Subscriber List.
Instructions for adding new or editing existing subscribers are covered in the Operations section under
the Subscriber Tab.
3.8.4 RUI
To connect remotely from a laptop:
1. Install the STAR core software on a laptop attached to the same network as the analyzer.
2. Launch the RUI from the STAR Client.
To connect from an RUI shortcut:
1. Launch the RUI from a shortcut.
2. Press the Network Connect button (see Figure 3-9).
3. When the Network dialog box appears, enter the IP address of the analyzer to observe or
control (see Figure 3-11).
4. Press Accept to continue or press Abort to close the network box.
IMPORTANT NOTE: For version 4 analyzers, you can launch the RUI from the STAR Client.
3.9 Analyzer shutdown
The analyzer may need to be shut down for a variety of reasons: valve replacement, preventive
maintenance, or temporary plant shutdown.
To shut down an analyzer:
1. On the Schedule Tab, stop all schedules (see Operation > Schedule Tab in section 4 for
instructions).
2. Lock out and tag out the sample coming to the ovens.
3. Purge sample from the oven as necessary.
4. Decrease analytical oven temperature to ambient temperature (refer to the Setup tab for
instructions) and allow columns to cool.
5. Block out and tag out carrier gases, burner air and burner fuel as necessary.
6. Lockout/tag out power to the oven.
7. Lockout/tag out instrument air supply.

8. Power down and tag out per company established safety procedures.

4.1 Introduction

The PGC5000 Generation 2 analyzer operates from a series of tabs at the top of the screen. All
functions of the analyzer are accessed from these tabs and their subtabs located at the bottom of the
screen.
