Westinghouse WGen7500DF Dual Fuel Portable Generator



Westinghouse WGen7500DF Dual Fuel Portable Generator

Core parameters and product configuration

1. Key specifications

Specific parameter notes for specification items

Operating power gasoline: 7500W; propane: 6750W. Propane power is slightly lower, suitable for different fuel needs

Peak power gasoline: 9500W; propane: 8550W meets the instantaneous high power demand of motor equipment during startup

Engine 420cc OHV four stroke, 3600rpm single cylinder design, high combustion efficiency, strong stability

The fuel related gasoline tank has a capacity of 25L (6.6 gallons) and is compatible with unleaded gasoline grades 87-93 (ethanol ≤ 10%); Support standard propane tanks with OPD valves to disable E15/E85 ethanol gasoline to avoid fuel system damage

Oil specification capacity 1.1L (1.16 quarts), recommended SAE 10W-30 extreme temperature can choose 5W-30 or 10W-40 synthetic oil

Starting methods include manual start, electric start, and remote start (up to 30 meters away). Remote control needs to be paired first, and the battery model is CR2016 (2 cells)

Output interface: 120V 20A dual hole GFCI socket x 2, 120/240V 30A locked socket x 1, 5V/2.1A USB interface x 2, total load not exceeding 40A, supporting multiple devices to be powered simultaneously

Other spark plug models F7TC (with a gap of 0.024-0.032 inches), with a net weight of approximately 59kg, and the noise level is not clearly marked as meeting EPA, CARB, CSA certification standards

2. Core configuration

Fuel switching: The control panel is equipped with a fuel selection switch, which supports switching during operation (propane tank needs to be connected in advance).

Safety configuration: low oil automatic shutdown, overload protection circuit breaker, GFCI leakage protection, neutral wire and frame grounding binding, spark suppressor (fireproof star ignition).

Convenient configuration: digital display screen (displaying voltage, frequency, operating hours, maintenance reminders), foldable handle+swivel wheel (easy to move), battery charging port (including matching charger).

Safety operation standards

1. Environment and placement safety

Placement requirements: Use only in outdoor ventilated areas, at least 5 feet (1.5 meters) away from doors, windows, and ventilation openings; Place on a hard horizontal surface to avoid tilting and causing fuel/oil leakage.

Environmental restrictions: It is prohibited to operate in enclosed spaces (garages, basements, etc.) (exhaust containing carbon monoxide); Do not use in damp, rainy or snowy weather or near water sources (to prevent electric shock); The operating range of ambient temperature is 5 ° F (-15 ° C) -122 ° F (50 ° C). After storage, it needs to be restored to this range before restarting.

2. Fuel and Electricity Safety

Fuel operation:

Turn off the engine and cool it down for 2 minutes before refueling. Do not smoke or approach open flames; The fuel tank cannot be filled to its full capacity, leaving room for expansion. Any spilled fuel must be wiped dry and allowed to evaporate before starting.

The propane tank should be placed upright on the ground, away from heat sources and generator exhaust ports; After connecting, use soapy water to check if the interface is leaking (if there is bubbling, it is a leak). Do not start until the leak is eliminated.

Electricity operation:

It is prohibited to directly connect to the household power distribution system, and it must be connected through a qualified electrician installed conversion switch (to avoid reverse power transmission to the grid).

Only use grounded three core extension cables, with wire diameter matching the load and length (12 cable for 20A load ≤ 50 feet, 10 cable for ≤ 100 feet); Do not use damaged or aged cables.

Disconnect all loads before starting, and connect them in sequence after stable operation (first high-power equipment, then low-power equipment), with the total load not exceeding the rated power.

3. Personnel safety

Wear goggles and gloves during operation, curl up long hair, and avoid contact with high-temperature components such as exhaust pipes (which are prone to burns).

Do not operate after fatigue, drinking alcohol, or taking medication. Children and pets should stay away from running generators (at least 3 meters away).

If symptoms such as dizziness and nausea occur after inhaling carbon monoxide, immediately transfer to fresh air and seek medical attention if severe.

Operation process (assembly+start+stop)

1. Assembly and preparation

Installing wheels and handles: Fix the wheels to the frame with axle pins and split pins, and install and lock the handles with buckles.

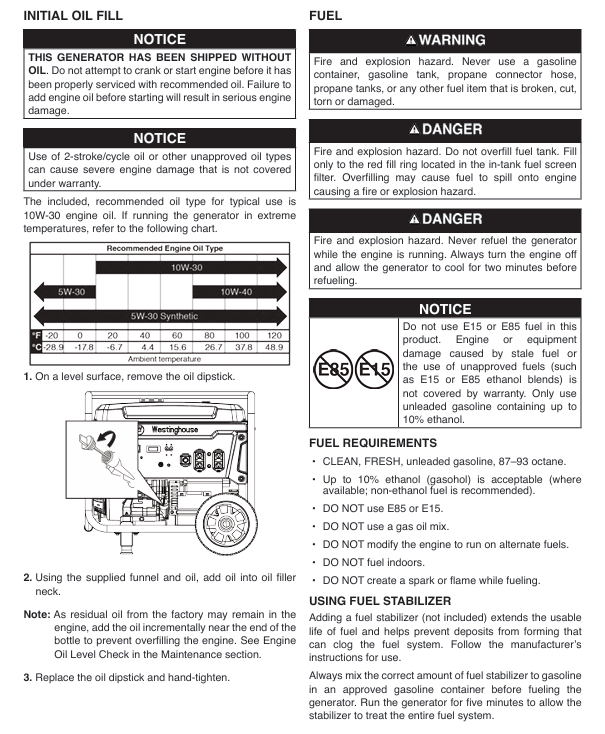

Add engine oil: Place the generator horizontally, unscrew the oil filler cap, add the recommended model of engine oil to between the "L" and "H" marks on the dipstick, and tighten the dipstick.

Fuel preparation:

Gasoline: Open the fuel tank cap, add qualified gasoline, tighten the fuel tank cap, and clean any spilled fuel.

Propane: Connect one end of the matching hose to the propane inlet of the generator (manually tighten, no sealing tape required), and the other end to the propane tank valve. After opening the tank valve, check for leaks with soapy water.

Battery connection: Connect the battery quick connector to ensure a secure connection (both electric and remote start rely on the battery).

2. Start the process

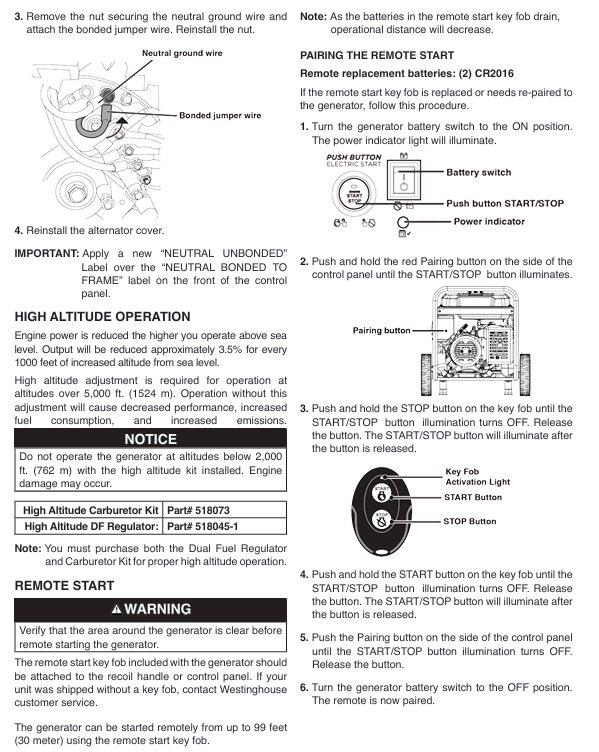

Preprocessing: Turn the battery switch to "ON", the fuel selection switch to the corresponding fuel position (gasoline/propane), turn off all loads, and remote start requires pairing to be completed first (long press the pairing button on the control panel, then press the start stop button on the remote control).

Start operation:

Electric start: Press and hold the "START" button on the control panel for 2 seconds, then release it after the engine starts.

Remote control start: Press the "START" button on the remote control for 1 second, effective up to 30 meters away.

Hand pulled start: The refrigerator needs to close the air door, hold the starting rope and slowly pull it until there is resistance, then quickly pull it; After starting, gradually open the air door to the "RUN" position.

Stable operation: Run without load for 3-5 minutes to preheat, observe that the display screen parameters are normal (voltage and frequency are stable), and connect to the load after there is no abnormal noise.

3. Shutdown process

Normal shutdown: Disconnect all loads, let the generator run without load for 3-5 minutes, press the "STOP" button on the control panel or remote control, close the fuel valve (gasoline: close the tank valve; propane: close the tank valve), and finally close the battery switch.

Emergency shutdown: In case of leakage, abnormal noise, overload, etc., press the "STOP" button directly or turn off the engine switch to forcibly shut down.

Cleaning and tidying up: Disconnect fuel and power connections, clean equipment surfaces, and store hoses and cables.

Maintenance and Storage

1. Routine maintenance

Maintenance project cycle operation content

Check the oil level before each use, and if it is below the "L" mark, replenish it

Oil change for the first 25 hours/every 50 hours thereafter. After heating up, drain the oil, replace with new oil, and drain the bolt seal gasket

Air filter maintenance Check every 25 hours/Clean every 50 hours/Replace the foam filter element every 300 hours Clean it with detergent, dry it in the air and apply a small amount of engine oil; Paper filter element is blown with compressed air

Spark plug maintenance check every 100 hours/replace every 300 hours to clean carbon deposits, check gap (0.024-0.032 inches), replace if damaged

Clean the spark suppressor every 100 hours by removing the muffler cover, cleaning the carbon buildup on the filter screen, and replacing it if it is damaged

Replace the fuel filter every 100 hours, close the fuel valve, remove the old filter element, and install the new filter element in the original direction

When the battery is not used for a long time, it should be charged monthly with a matching charger to maintain sufficient power and avoid damage caused by power loss

2. Storage requirements

Short term storage (≤ 1 month): Clean the equipment, empty the residual fuel in the hose, close the fuel valve, and store in a dry and ventilated place.

Mid term storage (2-6 months): Add fresh fuel and stabilizer, empty the fuel in the carburetor float, disconnect the battery and charge it monthly.

Long term storage (>6 months):

Drain the fuel tank and carburetor, and replace with new engine oil.

Remove the spark plug, inject 1 teaspoon of engine oil into the cylinder, pull the starting rope several times (to prevent corrosion), and reinstall the spark plug.

Disconnect the battery, store it separately after fully charging, cover the generator with a dust cover, and place it in a dry and cool place.

Winter storage: After following the long-term storage process, inject RV specific antifreeze (177mL) into the water pump to prevent freezing and cracking.

Common troubleshooting

Possible causes and solutions for the fault phenomenon

Unable to start battery depletion, fuel shortage/deterioration, spark plug failure, propane leakage, incorrect throttle position for charging or battery replacement; Supplement fresh fuel; Clean/replace spark plugs; Check for propane leaks; Cold engine closes the air door, hot engine opens the air door

Immediately stop the machine after starting, low oil protection triggered, load not disconnected, fuel supply interrupted to replenish oil; Disconnect all loads; Check if the fuel valve is open and if the hose is blocked

Insufficient power/unstable speed, excessive load, clogged air filter, poor fuel supply, unadjusted high altitude, reduced load to rated range; Clean/replace the air filter; Check the fuel filter and hoses; High altitude kits need to be installed for altitudes greater than 5000 feet

No output voltage circuit breaker tripped, GFCI not reset, loose wiring, load short circuit, reset circuit breaker after overload investigation; Press the "RESET" button on the GFCI socket; Tighten the wiring; Troubleshooting equipment short circuit issues

Abnormal operation of propane mode, hose bending, fuel selection switch not in place, carburetor residual gasoline sorting hose to avoid bending; Turn the fuel switch to full position; Switch to gasoline mode, exhaust residual gasoline, and then switch back to propane
