Product Overview

Product positioning: A miniSCADA visualization solution designed specifically for Woodward power management controller controlled generator set fleet. As a ready-made HMI option, it meets the safety remote control, monitoring, and visualization needs of users such as switchgear manufacturers and generator set packagers.

Core advantages:

No need for extensive on-site engineering work, pre-set equipment connections and data structures

Balancing indoor and outdoor use, with a wide operating temperature range, IP66 protection, anti glare treatment, and high brightness display

Support brand personalization, replaceable logo and startup screen

Applicable scenarios: hospitals, data centers, offshore drilling platforms, landfills, leased equipment, wastewater biogas power generation, etc.

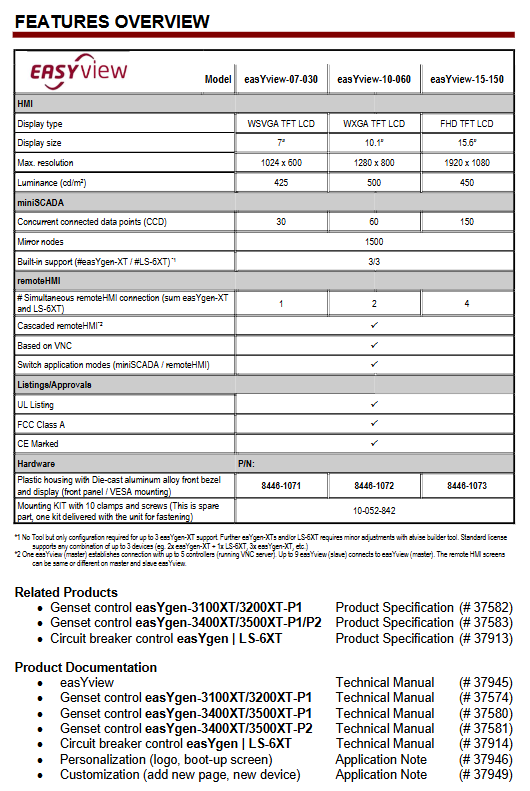

Comparison of Model and Key Parameters

Model easyYview-07-030 easyYview-10-060 easyYview-15-150

Display size 7 inches 10.1 inches 15.6 inches

Display type WSVGA TFT LCD WXGA TFT LCD FHD TFT LCD

Maximum resolution 1024 × 600 1280 × 800 1920 × 1080

Brightness (cd/m ²) 425 500 450

Weight 2kg (4.44lb) 3.9kg (8.63lb) 4.1kg (13.15lb)

MiniSCADA Concurrent Data Points (CCD) 30 60 150

Simultaneously, the number of remote HMI connections is 1, 2, and 4

Hardware part number 8446-1071 8446-1072 8446-1073

Hole size (mm) 192.4 × 139.0 (R5.0mm) 274.1 × 193.3 (R5.0mm) 411.9 × 261.2 (R5.0mm)

Core functions and working modes

Dual working mode

MiniSCADA mode:

Connection method: Connect multiple easyYgen XT and/or LS-6XT via Modbus TCP

Preset support: Data structure for 3 easyYgen XT+3 LS-6XT devices, a total of 6 devices

Core purpose: System level performance visualization, suitable for viewing high-frequency/commonly used values during routine operation and maintenance

Scalability: Can be achieved through atvisa ®  Tools for adding third-party devices, adjusting single line diagrams, etc

Remote HMI mode:

Connection method: Connect to a single controller through VNC

Display capability: Simultaneously display 1/2/4 different remote HMI screens based on screen size

Core uses: debugging, troubleshooting, parameter setting, viewing alarm/event logs

Cascade function: One main easyYview can connect to five controllers, and up to nine secondary easyYviews can connect to the main easyYview

Key Features

Network function: supports device list search and filtering, automatically connects to the last connected device

Customization: Basic customization achieved through parameter tuning, password protected atvisa ®  Tool implementation for deep customization

PC mode: Release easyYview hardware authorization, customizable through PC

Multilingual: Supports remote HMI screens connected to controllers in multiple languages

Safety compliance: CE certification, UL certification, FCC A-level certification

Technical specifications

Power and Environment

Power supply: 24Vdc ± 20% (low voltage/limited energy power supply)

Power consumption: typical 9W, maximum 21W

Working temperature: -20~60 ℃ (-4~140 ℉)

Storage temperature: -30~70 ℃ (-22~158 ℉)

Environmental humidity: 95% RH at 40 ℃ (without condensation)

Protection level: Front IP66 (with clamp fastening)

Anti vibration/anti impact: 2Grms random vibration (5-500Hz) during operation, 10G impact within 11ms

hardware configuration

Processor: NXP ®  ARM ®  Cortex ™- A53 i-MX 8M quad core 1.6GHz processor

Memory: 2GB DDR4 RAM

Storage: 16GB eMMC

Backup memory: 1MB FRAM

Touch screen: Projection Capacitive (P-CAP), 10 point touch, light transmittance ≥ 85%, pencil hardness ≥ 7H

Interface: Only uses power input and LAN A Ethernet interface, other interfaces are not used for easyYview applications

Installation method: Front panel installation and VESA 100 × 100mm installation, including installation kit with 10 fixtures and screws (part number 10-052-842)

software configuration

Operating System: Linux

Application software: atvisa for miniSCADA mode ®， Remote HMI mode using VNC

Customization and Support

Customization related

Basic customization: achieved through tuning parameters and online keyboard (such as deleting easyYgen, changing bus color, etc.)

Deep customization: using atvisa ®  SCADA tool (please refer to application note AN # 37949)

Brand personalization: replaceable logo and startup screen (please refer to application note AN # 37946)

Related products and documents

|Product Type | Product Name | Product Specification Number | Technical Manual Number|

|Generator set control | easyYgen-3100XT/3200XT-P1 | 37582 | 37574|

|Generator set control | easyYgen-3400XT/3500XT-P1/P2 | 37583 | 37580/37581|

|Circuit breaker control | easyYgen | LS-6XT | 37913 | 37914|
