Product core positioning and fault tolerance principle

1. Core Definition

Tricon is a fault-tolerant controller designed for safety critical industrial scenarios. It uses a triple modular redundancy (TMR) architecture to achieve fault detection, compensation, and online maintenance, ensuring uninterrupted process control. It is suitable for industrial environments with extremely high requirements for safety and availability.

2. Fault tolerant core mechanism

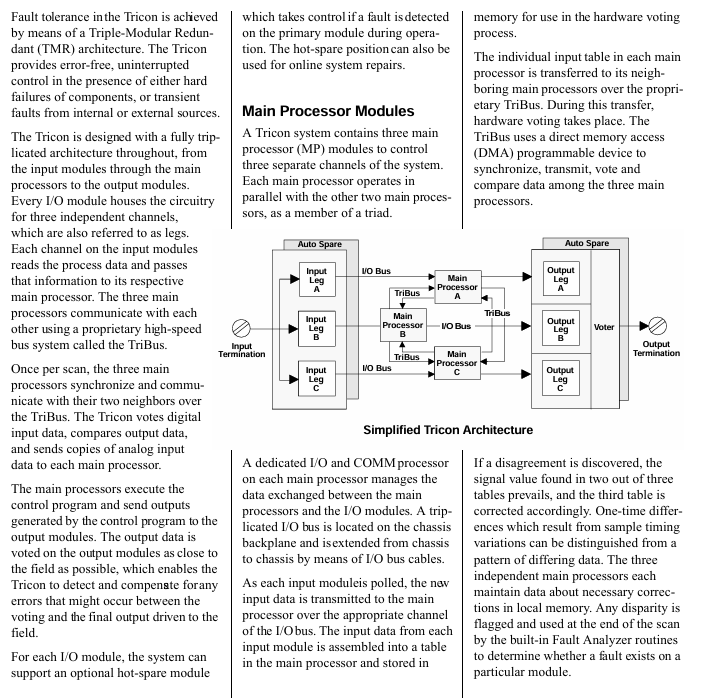

Architecture design: The system is fully triple from input module, main processor to output module, with three independent channels (A/B/C) running in parallel and communicating synchronously through a proprietary TriBus bus.

Data processing rules: The "two out of three" voting mechanism is used for digital input/output, and the median selection method is used for analog input to ensure that erroneous data is blocked.

Fault handling: When a single channel fails, the other channels automatically take over control, and the faulty module can be plugged and replaced online without stopping the machine.

Diagnostic capability: Each channel, module, and functional circuit is equipped with comprehensive diagnostic functions, which provide real-time feedback on faults through indicator lights or alarm signals. Diagnostic data can be called by control programs or operators.

3. Core advantages

No single point of failure design, supports 3/2/1 main processor (MP) operation mode, ensuring that operation can still be maintained in extreme situations.

Remote I/O supports transmission up to 7.5 miles (12 kilometers), suitable for large-scale industrial scene layouts.

The full range of I/O modules covers digital, analog, pulse, thermocouple and other signal types, supporting dual module or single module configurations, balancing safety and cost requirements.

Continuous operation and online maintenance capabilities significantly improve system availability.

System hardware composition and specifications

1. Core hardware components

(1) Main Processor Module (MP)

Model: Model 3008 (suitable for v9.6 and above systems), equipped with 16MB DRAM, 32KB spare SRAM, and 6MB Flash PROM.

Core chip: Motorola MPC860 32-bit processor, with a main frequency of 50MHz, TriBus communication rate of 25Mbps, and support for DMA synchronous transmission.

Power protection: Powered by dual power modules, the program and hold variables can maintain integrity for at least 6 months after power failure.

Indicator lights: including status indicators such as PASS (self-test pass), FAILT (fault), ACTION (running), etc.

(2) Power module

Configuration: Each chassis is equipped with 2 redundant power modules that support hot swapping, and a single module can meet the power supply needs of the entire chassis.

Input specifications: Available in 24VDC, 115VAC, and 230VAC versions, with input voltage ranges of 22-31VDC, 85-140VAC, and 185-285VAC, respectively.

Output parameters: 175 watts (at 60 ° C environment), output voltage 6.5VDC ± 1%, maximum output current 27A.

Protection function: Built in over temperature (triggered at 83 ° C), low battery, overvoltage/undervoltage diagnosis, supports alarm contact output.

(3) I/O module

Covering types such as digital input/output, analog input/output, pulse input/accumulator, thermocouple input, etc., the core specifications are as follows:

Example of key parameters for module types and typical models

TMR digital input voltage range is 24/48/115VAC/VDC, with 32/64 points, supporting self-test testing for 3501E/3503E/3504E

Single channel digital input 24VDC, 64 points, optimized cost type, triple critical path 3564

TMR digital output voltage range 24/48/120VDC, 115VAC, with 8/16/32 points, supporting voting and circuit diagnosis 3604E/3624/3611E

Analog input supports 0-5/0-10VDC, 4-20mA, thermocouple (J/K/T/E), 12/14 bit resolution, isolated/non isolated versions 3703E/3708E/3721

Analog output 4-20mA (8 points) or 4-20mA+20-320mA (high current version), accuracy ± 0.25% FSR 3505E/3806E

Pulse module frequency range 20Hz-20kHz (input), 0-1kHz (cumulative), supports speed and flow measurement 3511 (input)/3515 (cumulative)

(4) Communication module

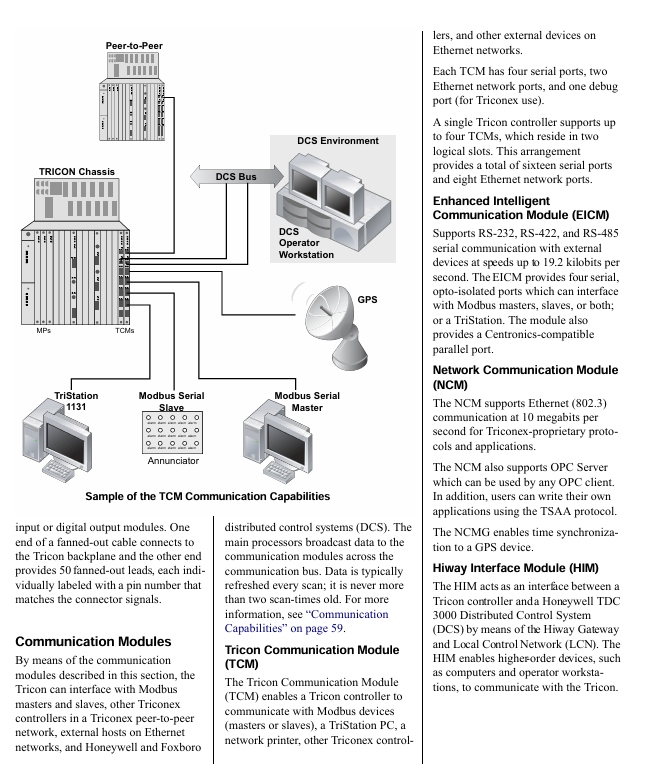

Provide multiple types of communication interfaces, supporting interconnection with Modbus devices, DCS systems, Ethernet hosts, etc. The core models are as follows:

Module Name Communication Protocol/Interface Core Function Model

TCM (Tricon Communication Module) Ethernet (802.3), RS-232/485 supports Modbus TCP, Peer to Peer, GPS timing 4351A/4352A/4353

EICM (Enhanced Intelligent Communication Module) RS-232/422/485, parallel port Modbus master/slave communication, supports printer connection 4119/4119A

NCM (Network Communication Module) Ethernet (802.3) supports OPC Server, TSAA protocol, GPS synchronization 4329/4329G

SMM (Safety Manager Module) Honeywell UCN bus docking with TDC 3000 DCS, safety node communication 4409

ACM (Advanced Communication Module) Foxboro I/A Nodebus interfaces with Foxboro DCS and supports TriStation protocol 4609

HIM (Hiway Interface Module) Honeywell Data Hiway/LCN docking with TDC 3000/2000 DCS 4509

RXM (Remote Expansion Module) multi-mode/single-mode fiber remote I/O expansion, capable of transmitting up to 12 kilometers from 4200-3/4210-3 (main) to 4201-3/4211-3 (slave)

2. System chassis configuration

(1) Chassis type and layout

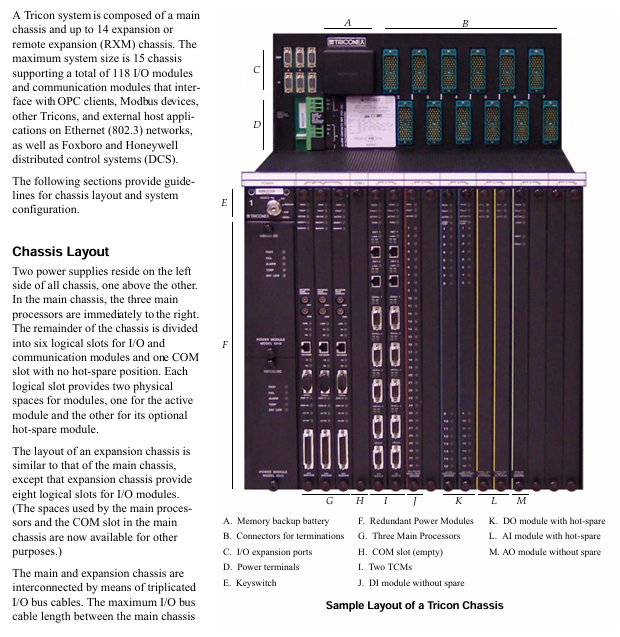

Main chassis (Model 8110): accommodates 3 main processors, 2 power modules, and provides 6 logic slots (including hot spare positions)+1 COM slot.

Expansion chassis (Model 8111): No main processor, provides 8 logical slots, suitable for expansion within 100 feet (30 meters), and can be extended up to 1000 feet in restricted scenarios.

Remote Expansion Chassis (Model 8112): Equipped with RXM module, supporting fiber optic transmission, suitable for ultra long distance expansion.

Mechanical specifications: 19 inches wide x 22.75 inches high x 17.75 inches deep, made of cold-rolled steel material, with a main chassis weight of approximately 24.5kg.

(2) Chassis interconnection and power supply limitations

Interconnection method: Connected through a triple I/O bus cable (Model 9000), with a transmission rate of 375kbps, supporting up to 15 chassis networking (1 main+14 expansion/remote).

Power supply limitation: Under 60 ° C environment, a single power module outputs 175 watts, which needs to be planned and configured according to the module power consumption (such as NCM 20 watts, ACM 15 watts).

3. On site terminal options

External Terminal Panel (ETP): Passive PCB board that supports on-site wiring and quick module replacement. Available in standard, basic, hazardous area (non flammable), and intermediate relay types, with a coverage of 8/16/32/64 points.

Fan out cable: a low-cost alternative solution that connects one end to the chassis backplane and provides 50 lead wires with pin markings on the other end. It is only suitable for digital I/O modules and supports a maximum length of 99 feet (30 meters).

Terminal protection: Some panels are integrated with fuses and current limiting resistors, supporting overcurrent protection. Hazardous area panels are certified by T Ü V and suitable for Zone 2 and Class 1 Division 2 scenarios.

System software and programming tools

1. Core programming platform: TriStation 1131 Developer's Workbench

Compatibility: Supports Windows NT/2000/XP systems, compatible with Tricon v9.1 and above controllers in different versions (such as v4.1.433 compatible with v9.5-x-10.1. x).

Programming standard: Complies with IEC 61131-3 standard, supports three core languages+optional languages:

Function Block Diagram (FBD): Graphic circuit based programming, suitable for logical interconnection.

Ladder diagram (LD): Based on relay logic symbols, suitable for traditional industrial control scenarios.

Structured Text (ST): A Pascal like high-level language that supports complex arithmetic operations and conditional statements.

Optional CEMPLE language: Causal matrix programming, automatically converted to FBD, suitable for designing safe shutdown strategies.

Core functions: project management, controller configuration, tag declaration, program simulation testing, download and real-time monitoring, diagnostic data viewing.

New features (v4.1): Windows XP compatibility, automatic backup of project files, ST code export, enhanced diagnostic monitor (standalone application).

2. Sequence of Events (SOE) function

Principle: The main processor detects state changes (events) of specified discrete variables during scanning, records variable states, timestamps, and stores them in the SOE buffer.

Key parameters: A single SOE block can support up to 20000 events, with a total capacity of 60000 events and a time synchronization accuracy of ± 25 milliseconds (Peer to Peer network).

Data application: Supports exporting event data through Triconex SOE software, SMM/ACM module, or OPC client to generate reports for fault tracing and downtime analysis.

Trigger mechanism: Control event collection, stopping, status query, and clearing through the SOESRT/SOESTOP/SOESTAT/SOECLR function blocks.

3. Communication protocols and applications

Supported protocols: Modbus (RTU/ASCII/TCP), Ethernet (802.3), Peer to Peer, TSAA, SNTP, GPS timing, etc.

Typical applications: Interconnection with DCS systems (Honeywell TDC 3000, Foxboro I/A), operator workstations, third-party Modbus devices, network printers, supporting data reading and writing, alarm transmission, and time synchronization.

Typical application scenarios

Tricon controllers are widely used in global industrial safety critical scenarios, with core applications including:

1. Emergency safety shutdown (ESD)

Scenario: Equipment such as reactors and compressors in refineries, petrochemical plants, and chemical plants, monitoring parameters such as pressure, feed rate, and temperature.

Advantages: Compared to traditional mechanical/electronic relays, it reduces false shutdowns, supports sensor integrity detection, integrated control and safety functions, and connects with monitoring networks to achieve real-time status feedback.

2. Boiler flame safety control

Scenario: Start/stop interlocking, flame monitoring and protection of steam boilers in refineries.

Advantages: Integrating traditional decentralized protection functions, improving operational efficiency, and ensuring safety not inferior to electromechanical protection systems.

3. Turbine control system

Scenario: Speed control, start stop sequence, and fault protection of gas/steam turbines.

Advantages: Avoiding unplanned downtime through hot standby I/O modules, integrating control and protection functions, and improving device availability.

4. Offshore oil and gas fires and gas protection

Scenario: Fire and combustible gas leakage monitoring and emergency response on offshore platforms.

Advantages: Supports online module replacement, built-in diagnostic function to automatically handle sensor/wiring faults, direct connection to analog detectors, saving space and costs.

Environmental and Certification Specifications

1. Environmental adaptability

Storage temperature: -40 ° C to 75 ° C (compliant with IEC 60068-2-14).

Working humidity: 5% -95% (non condensing, compliant with IEC 60068-2-2/3).

Anti interference capability: electrostatic discharge (IEC 61000-4-2kV air/8kV contact), surge (IEC 61000-4-5:2kV), radiation immunity (IEC 61000-4-3:10V/m).

Mechanical performance: vibration (2G, 10-150Hz), impact (15G, 6-11ms).

2. International certification

Functional safety certification: IEC 61508 (SIL 1-3), DIN V 19250 (AK 1-AK6), EN 54 (fire detection), NFPA 72/8501/8502 (North American standards).

Regional certifications: ATEX Directive 94/9/EC (Zone 2, Group IIB Hazardous Areas), CSA (North American Electrical Safety), FM (Class I Division 2, T4), CE (EMC/Low Voltage Directive).

Special field: NRC (US Nuclear Regulatory Commission) certification, applicable to Class 1E applications in nuclear power plants; SEMI S2 (Semiconductor Manufacturing Environment).
