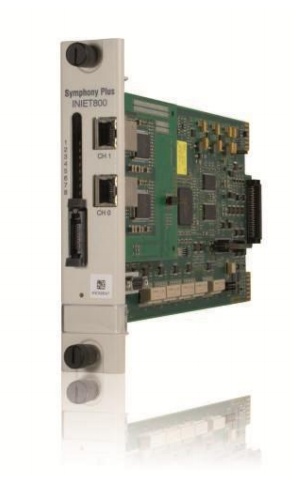

ABB INIET800 Symphony Plus Communications
Ethernet interface to INFI-Net used by:
Composer 5.1 and Higher
Harmony OPC
Harmony Connect (800xA Process
Portal v. 5.1A)
S+ Operations
PPB,Conductor NT*
Security Modes
Basic (Twofish) [Default]
128 -bit block cipher
Advanced(TLS1/SSL3)
256-bit encryption
Supports up to 30,000 tags(Ethernet)

Symphony Plus Control & I/O

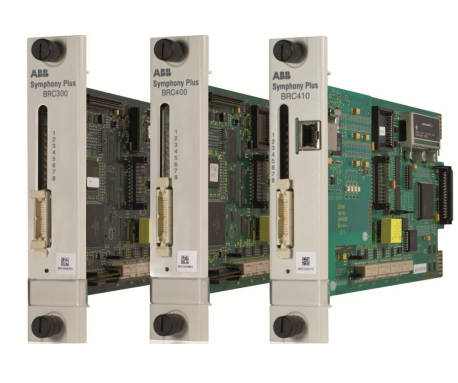

BRC410
Performance increase depends on specific
function blocks used, but in general
performance of latest module(BRC410)
compared with older modules:
~10xvs.MFP01/02/11/12
~4xvs.BRC100/200
Enhanced On-Line Configuration provided
by BRC410
BRC410 also provides ModBus TCP
BRC410 support 30,000 block addresses
Infi90 Modulebus support*
Downloadable firmware

S+ Control & I/O Update
Upgrading to S+ Rack Modules

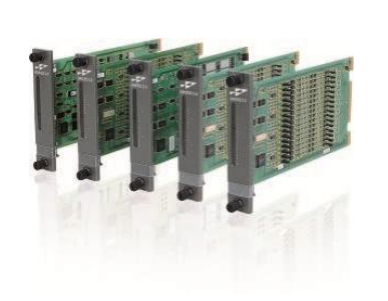

Harmony Rack Modules
Grey Front Plates
Module Nomenclatures: IMxxxx or INxxxx
Build to Order, longer lead

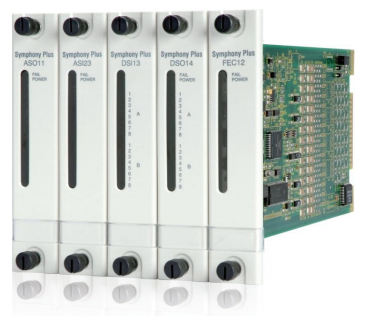

S+ Rack Modules
White Front Plates
Module Nomenclatures: SPxxxx
Original Price of Grey Modules
td Factory Lead Time

Symphony Harmony
Comprehensive I/O system
Modular to meet varying I/O requirements
Local and remote I/O options
Rack and DIN I/O options
I/O Types
Analog Input
Analog Output
Pulse Input
Digital Input
Digital Output
Turbine Control
SOE timestamp resolution of +/- 1 msec across
the entire Harmony system


Harmony I/O options

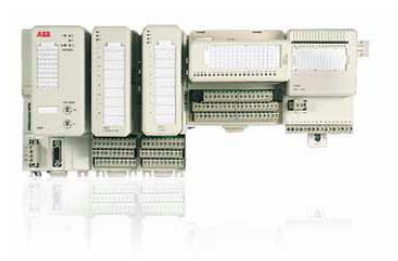

Expanding with S800 I/O
S800 I/O is configured using
Composer and standard function
codes
BRC simultaneously supports
Harmony Rack & S800 I/O
Each IOR-800 supports up to 7
clusters
Each cluster modem supports up to
12 S800 I/O modules
PN800: S+ Plant Network
Protocol = “INFI-NET over Ethernet”
Connects consoles (S+ Operations)
and tools (S+ Engineering) to
HPC800 Harmony Controllers
HC800: Harmony Control Processor
Executes INFI 90 Function Codes
BRC / HPG Functionality
CP800: Communications Processor
Combination of NIS / NPM modules
Control Network Interface
CTB810/811: Comm. Term. Board
HN800 I/O interface for Rack I/O (via
RIO22), S800 and new I/O
CW800 provides PTP
communications between controllers
