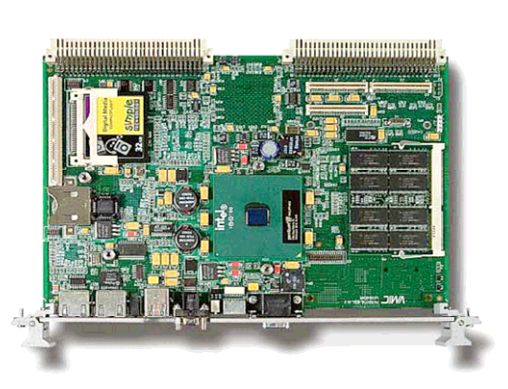

GE VMIVME-7750 VME Single Board Computer
❤ Add to collection

GE VMIVME-7750 VME Single Board Computer

+86-15305925923
Mr.Wang
wang@kongjiangauto.com

Features:

Up to 1.26 GHz PentiumIll processor with 512 Kbyte

advanced transfer cache

Up to 512 Mbyte PC133 SDRAM using a single SODIMM

Internal AGP SVGA controller with 4 Mbyte display cache

133 MHz system bus via lntel®815E chipset

Dual Ethernet controllers supporting 10BaseT and 100BaseTX

interfaces

Remote Ethernet booting

PMC expansion site

Operating system support for Windows XP, Windows 2000,

VxWorks, Solaris™, QNX,LynxOS,and Linux

￥18897.00
￥17665.00
Weight：3.500KG
Quantity：
(Inventory: 22)
Consultation
Product parameters
  • Telephone:+86-15305925923
  • contacts:Mr.Wang
  • Email:wang@kongjiangauto.com
Description

Features:

Up to 1.26 GHz PentiumIll processor with 512 Kbyte

advanced transfer cache

Up to 512 Mbyte PC133 SDRAM using a single SODIMM

Internal AGP SVGA controller with 4 Mbyte display cache

133 MHz system bus via lntel®815E chipset

Dual Ethernet controllers supporting 10BaseT and 100BaseTX

interfaces

Remote Ethernet booting

PMC expansion site

Operating system support for Windows XP, Windows 2000,

VxWorks, Solaris™, QNX,LynxOS,and Linux

GE VMIVME-7750 VME Single Board  Computer

DRAM Memory: The VMIVME-7750 accepts one 144-pin SDRAM
SODIMM for a maximum memory capacity of 512 Mbyte. The
DRAM is dual ported to the VME.
BIOS: System and video BIOS are provided in reprogrammable
flash memory.
Super VGA Controller: High resolution graphics and
multimedia-quality video are supported on the VMIVME-7750 by
a built-in 815E chipset AGP graphics adapter. The adapter is
complemented by 4 Mbyte external synchronous DRAM cache
with a high-bandwidth 64-bit data interface. Screen resolutions
up to 1,600 x 1,200 x 256 colors (single view mode) are
supported by the graphics adapter.
Table 1. Partial List of Display Modes Supported
A = Processor
2 = 733 MHz Pentium III (Extended Temperature Range: 0 to 60º C)
3 = 733 MHz Pentium III
4 = 866 MHz Pentium III
5 = Reserved
6 = 1 GHz Pentium III (0 to 40° C)
7 = 1.26 GHz Pentium III with 512 Kbyte Cache
8 = Reserved
9 = Reserved
G = 733 MHz Pentium III with Fansink (0 to 40° C)
B = SDRAM Memory
2 = Reserved
3 = 64 Mbyte
4 = 128 Mbyte
5 = 256 Mbyte
6 = 512 Mbyte
C = CompactFlash
1 = Reserved
4 = 64 Mbyte
5 = Reserved
6 = 128 Mbyte
8 = Reserved
9 = 256 Mbyte
G = 512 Mbyte
H = 1 Gbyte
D = 0 (Option reserved for future use)
E = 0 (Option reserved for future use)
F = Special Sales Order
0 = VME Standard
1 = 1101.10 Front Panel



The VMIVME-7750 supports high throughput DMA transfers of
bytes, words, and longwords in both master and slave
configurations.
If endian conversion is not needed, we offer a special “bypass”
mode that can be used to further enhance throughput. (Not
available for byte transfers.)
Master Interface: MA32:MBLT32:MBLT64
(A32:A24:A16:D32:D16:D8 (EO):BLT32)
The VMEbus master interface provides nine separate memory
windows into VMEbus resources. Each window has separate
configuration registers for mapping PCI transfers to the VMEbus
(that is, PCI base address, window size, VMEbus base address,
VMEbus access type, VMEbus address/data size, etc.). The
maximum/minimum window sizes for the nine windows are as
follows:
Window Minimum Size Maximum Size
0, 4 4 Kbyte 4 Gbyte
1 to 3, 5 to 7 64 Kbyte 4 Gbyte
Special Cycle 64 Mbyte 64 Mbyte
Slave Interface: Memory Access
SAD032:SD32:SBLT32:SBLT64
(A32:A24:A16:D32:D16:D8 (EO): BLT32)
The VMEbus slave interface provides eight separate memory
windows into PCI resources. Each window has separate
configuration registers for mapping VMEbus transfers to the PCI
bus (that is, VMEbus base address, window size, PCI base
address, VMEbus access type, VMEbus address/data size, etc.).
The maximum/minimum window sizes for the eight windows
are as follows:
Window Minimum Size Maximum Size
0, 4 4 Kbyte 4 Gbyte
1 to 3, 5 to 7 64 Kbyte 4 Gbyte
In addition, each window can be programmed to operate in
coupled or decoupled mode. In decoupled mode, the window
utilizes a write-posting FIFO and/or a read prefetching FIFO for
increased system performance. In coupled mode, the FIFOs are
bypassed and VMEbus transactions are directly coupled to the
PCI bus (that is, transfers on VMEbus are not completed until
they are completed on the PCI bus).
Enhanced Bus Error Handling: Enhancements over the
Universe chip’s bus error handling features are provided. A latch
and register are provided to allow the SBC to read the VMEbus
address that caused the bus error in all modes. The Universe
chip’s support is limited to decoupled mode.
Support for bus cycle timeout and assertion of bus error is
provided. The board may be configured to assert bus error upon
timeout regardless of its status as system controller. The
Universe chip asserts bus error only if it is system controller. In
addition, this board may be configured to assert an interrupt
upon bus cycle timeout.
Operating System and Software Support
The VMIVME-7750 provides embedded features beyond PC/AT
functionality. These features are supported by GE Fanuc
Embedded Systems software products aimed at developers
who are incorporating GE Fanuc Embedded Systems SBCs, I/O
boards, and workstations into systems. Windows XP/Windows
2000 and VxWorks are the most common operating systems
supported by GE Fanuc Embedded Systems software products.
Windows XP/Windows 2000: The IOWorks® software family is a
set of software components that can work together or
separately to provide a total development environment for any
application in a Windows XP/ Windows 2000 OS.
VMISFT-9422 VMEbus Access™ for Windows XP/Windows
2000: The VMEbus Access product is specifically designed for
accessing the advanced VMEbus Access architecture of the
VMIVME-7750. Running on Windows XP/Windows 2000, VMEbus
Access is both sophisticated and easy to use.
The function library, VMEbus toolset and open architecture
VMEbus Access offers make it one of the most powerful
products on the market today. It provides compatibility with
existing GE Fanuc Embedded Systems VME PC platforms and
compatibility within the future VME PC platforms GE Fanuc
Embedded Systems creates.
The VMEbus Access development package gives you everything
you need to develop applications for your VME operations. This
package includes the VMEmanager™ function library and four
utilities that enable you to easily configure a VMEbus,
dynamically monitor VMEbus activities, manage VMEbus data,
and use DDE-client applications.
VMEbus Access provides powerful tools for developing,
debugging and monitoring VMEbus applications and increasing
VMEbus performance. The flexible design of VMEbus Access
enables you to incorporate it as a standalone solution or use it
to open your VMEbus operations to the IOWorks product suite.
VMEbus Access manipulates the hardware behind the scenes.
With VMEbus Access, you can develop applications in or use
existing applications developed in most programming
environments. For example, VMEbus Access enables your
VMEbus to recognize applications developed in these popular
programming environments:
• IOWorks Manager™
• LabVIEW
• Citect
• Wonderware InTouch
• Visual IOWorks®
• Visual Basic®
Visual C++®
d
•
VxWorks OS Support — VMISFT-7418 Board Support Package:
The VMISFT-7418 is a Wind River Systems, Inc.’s certified board
support package (BSP) for GE Fanuc Embedded Systems’ series
of VME Pentium processor-based computers, which is require
to run the VxWorks OS. With the SBC, VxWorks, the BSP, and
other VME equipment from GE Fanuc Embedded Syste
implementations can be created for a wide variety of
applications, including real time factory automation, sim
instrumentat
ms,
ulation,
ion and control, and process control and
ware
nuc
rts,
ards. The
e
as
.
ture
g-endian and little-endian devices to
us
g
r
7xxx SBC boards without requiring any
ge:
ilitary
aris OS provides POSIX ivers
s
ent based on industry-wide
rted I/O board and new
uc
; or
ications
6U
.3mm)
m
2 and -12VDC are specified with the
operating temperature is available for the following
C)
measured at outside of heatsink is to be
%, noncondensing
rfa
(3 to 0), ROR, RWD, BCAP
dle
r: , IRQ7* to IRQ1*
r:
le (4 to 1,024 µs)
signaling, types 1 and 2
TBF: 118,633 hours (Bellcore)
monitoring.
The BSP is linked with VxWorks OS, thus allowing soft
applications created with Wind River Systems, Inc.’s
development system to load and run on the particular GE Fa
Embedded Systems SBC hardware being used. Serial po
parallel ports, keyboard, text mode video, and Ethernet
transceivers are all supported, as well as floppy and IDE hard
disk drives that can be connected to the computer bo
BSP provides Flash boot, NVRAM and timer support.
The BSP allows VxWorks applications to have access to th
VMEbus. When hardware includes single cycle and block
transfers using DMA devices, they are supported by the BSP,
are interprocessor communications with mailbox registers.
VMEbus interrupt handling and error handling are supported
Since the VMEbus environment often contains a mixture of
devices from various manufacturers, the byte-swapping fea
is provided to allow bi
share data correctly.
QNX OS Support — VMISFT-7417 Board Support Package:
VMISFT-7417 BSP provides QNX support and includes a VMEb
manager, user API and configuration files needed to run the
QNX BSP on GE Fanuc Embedded Systems’ VMIVME-7xxx SBC
products. This BSP provides customizable VMEbus access. Usin
the QNX OS on the VMIVME-7xxx SBCs provides a computing
platform suitable for real time applications. QNX provides the
applications programmer with a real time extensible POSIX OS.
GE Fanuc Embedded Systems’ VMISFT-7417 is designed to tailo
QNX’s x86 OS to the VMIVME-7xxx platform. This combination
provides a self-hosted development environment which runs
entirely on the VMIVME external host systems.
Solaris OS Support — VMISFT-7416 Board Support Packa
VMISFT-7416 BSP includes everything necessary to allow
installation of the Solaris Intel edition OS (available separately
from Sun Microsystems, Inc.) onto the VMIVME-7750 SBC. This
BSP includes a nexus driver for VMEbus access. It allows m
and telecommunications and other applications to take
advantage of Sun Microsystems, Inc.’s Solaris OS on a VME based Intel SBC. This BSP and the Sol
compliant real time characteristics.
LynxOS x86 OS Support — VMISFT-7419 Board Support
Package: The VMISFT-7419 BSP includes all of the device dr
and configuration tables needed to install the LynxOS x86
development system (available separately from Lynx Real-Time
Systems, Inc.) onto GE Fanuc Embedded Systems VMIVME-7750.
Using the LynxOS on the GE Fanuc Embedded Systems SBC
provides a computing platform suitable for hard real time
applications. LynxOS provides the applications programmer
with a stable development environm
standards such as POSIX and Motif.
I/O Support — VMISFT-9450 IOWorks Board Drivers: This
driver supports GE Fanuc Embedded Systems’ extensive line of
VME I/O boards and is available for Windows XP/Windows 2000
and VxWorks. IOWorks board drivers take advantage of all the
key benefits and features of each suppo
I/O boards are constantly being added.
IOWorks board drivers contain both a C++ class library and a C
function library that provide a common interface to GE Fan
Embedded Systems I/O products for reading, writing and
configuring. You do not need to know the details of how an
individual board is programmed. For instance, you can use the
SetAttributes function on any supported GE Fanuc Embedded
Systems board; the WriteAnalog function controls the output
from any GE Fanuc Embedded Systems analog output board
the GetScanMode function retrieves the scan mode for any
GE Fanuc Embedded Systems analog board.
Physical/Environmental Specif
Dimensions: single slot Eurocard format
Height 9.2 in. (233.4mm)
Depth 6.3 in. (160mm)
Thickness 0.8 in. (20
Power Requirements:
+5VDC (±5 percent), 6A (typical), 7A maximum
+12VDC (±5 percent), 105mA (typical), 200mA maximu
-12VDC (±5 percent), 50mA (typical), 75mA maximum
Note: The currents at +1
serial connectors open.
Operating Temperature: 0 to 50° C
Extended
options:
A=2 (733 MHz, 0 to 60° C)
A=9 (1.26 GHz, 0 to 55°
A=6 (1 GHz, 0 to 40° C)
(Air flow requirement as
greater than 350 LFM)
Storage Temperature: -25 to 80° C
Relative Humidity: 10% to 90
VMEbus Inte ce:
DTB Master: BLT32/BLT64, A32/D32, A24/D32, A16/D32
DTB Slave: BLT32/BLT64, A32/D32, A24/D32, A16/D32
Requester: Programmable, BR
Interrupt Han r: IH(1 to 7) D8(O)
Interrupte Programmable
Arbite SGL, PRI, RRS
BTO: Programmab
Compliance: Rev. C.1
PMC Expansion Site Connector: 5V
32-bit PCI bus, 33 MHz maximum
  • Bonfiglioli EM-RES-01 Expansion Module
  • Bonfiglioli EM-IO-04 Expansion Module
  • Bonfiglioli EM-IO-03 Expansion Module
  • Bonfiglioli EM-IO-02 Expansion Module
  • Bonfiglioli Vectron EM-IO-01 Expansion Module
  • Bonfiglioli F series gearbox
  • Installation, operation, maintenance, and spare parts of Bonfiglioli HF series reducers
  • Installation, Operation, and Maintenance of Bonfiglioli 300-300M Series ATEX Reducer
  • Bonfiglioli R3 series planetary gearbox
  • Bonfiglioli C series inline helical gear explosion-proof reducer
  • Bonfiglioli EM-ENC-05 Expansion Module
  • Bonfiglioli EM-ENC-04 Expansion Module
  • Bonfiglioli EM-ENC-03 Expansion Module
  • Bonfiglioli EM-ENC-02 Expansion Module
  • Bonfiglioli CM-CAN CANopen communication module
  • Bonfiglioli EM-SYS System Bus Expansion Module
  • Bonfiglioli CM-PDP Profibus DP Communication Module
  • Bonfiglioli CM-232/CM-485/CM-485T Modbus Communication Manual
  • Bonfiglioli BMS series precision planetary servo reduction motor
  • Bonfiglioli ACTION series ACT210 (230V), ACT410 (400V) frequency converter operation manual
  • Bonfiglioli ACT series frequency converter
  • Bonfiglioli HDP/HDO series gear unit IOM installation, operation and maintenance instructions
  • Installation, operation, and maintenance of Bonfiglioli 300-300M series reducers
  • Bonfiglioli 300M Modular planetary gearboxe
  • Bonfiglioli 3/H series heavy-duty modular gearbox
  • Bonfiglioli KRG-KCG-KSD hydraulic coupling
  • Bonfiglioli Vectron BTD-BCR servo motor
  • Bonfiglioli BTD-BCR synchronous servo motor
  • Bonfiglioli VF-W series ATEX explosion-proof worm gear reducer
  • Bonfiglioli EM-ENC-03 Expansion Module
  • Installation, operation, maintenance, and spare parts instructions for Bonfiglioli EVOX-CP series helical gear reducers (including ATEX explosion-proof models)
  • Installation, operation, and maintenance IOM instructions for Bonfiglioli C/A/F/S series gear reducers (including ATEX explosion-proof versions)
  • Bonfiglioli BX-BE-BN-MX-ME-BXN-MNN Motor Installation, Operation and Maintenance Manual
  • Bonfiglioli VF-W IE2-IE3 Worm Gear Reduction Motor: Complete Selection, Verification, and On site Implementation Technical Guide
  • Bonfiglioli VF-W series ATEX worm gear reducer
  • Bonfiglioli RAN series bevel gear angle reducer
  • Bonfiglioli Industry&Automation Business Unit Integrated Products
  • Bonfiglioli EVOX platform CP coaxial helical gear reduction motor
  • Bonfiglioli C-A-F-S Series IE2-IE3-IE4 three series reducers
  • Complete selection, calibration, and common selection of Bonfiglioli C-A-F industrial gear units
  • Bonfiglioli C series explosion-proof helical gear reducer
  • Bonfiglioli BN-BE-BX-BY series three-phase asynchronous motor
  • Bonfiglioli BMD series permanent magnet AC synchronous servo motor
  • Bonfiglioli A-series spiral bevel gear right angle servo reduction motor
  • Installation, Operation, and Maintenance Instructions for Bonfiglioli AS Series Reducer
  • Bonfiglioli Active series high-end frequency converter
  • Bonfiglioli EM-IO-04 Expansion Module
  • Bonfiglioli EM-ENC-02 Expansion Module
  • Bonfiglioli A-series spiral bevel gear reducer sample
  • Bonfiglioli Industrial Transmission Products
  • Bonfiglioli RAN series gearbox
  • Bonfiglioli Active 401/201 frequency converter
  • Alcatel Lucent OmniAccess Stellar AP1301 Indoor Wi Fi 6 (802.11ax) Wireless Access Point
  • Alcatel Lucent Enterprise (ALE) Mobile Handheld Terminal Electronics
  • Alcatel Lucent MDR-8000 Digital Microwave Radio
  • Alcatel 1660 SM Release 5 Optical Multi Service Node
  • Alcatel Lucent OmniSwitch 6850 Stackable LAN Switch
  • Alcatel Lucent 7750 Service Router (SR) series business router
  • Alcatel 1600 series SDH optical transmission equipment
  • Alcatel Lucent 9500 MPR Release 3 ANSI Microwave Packet Radio Equipment
  • Alcatel Lucent 7450 operator Ethernet service switch
  • Alcatel Advanced REFLEXES (OmniPCX 4400) telephone
  • Alcatel Lucent OmniSwitch 6850E Stacked Gigabit Switch
  • Alcatel Lucent OmniSwitch 6450 Stackable Gigabit Ethernet Switch Series
  • Lucent Stinger ATM DSL Access Concentrator
  • Alcatel Lucent 1660SM OMSN (Optical Multi Service Node) series next-generation SDH equipment
  • ALCATEL-LUCENT 9500 MICROWAVE PACKET RADIO
  • Atlas Copco MT Focus 6000 Tightening Controller
  • Atlas Copco Power MACS 4000 Fixed Nut Runner (Servo Tightening Shaft) Control System
  • Atlas Copco Neos compressor specific frequency converter
  • Atlas Copco Power Focus 8 (PF8) Series New Generation Tightening Controller Platform
  • Atlas Copco Power Focus 4000 Controller
  • Atlas Copco Power Focus 3000 Controller
  • Atlas Copco ETV S7 (ETV S7-200 13CTADS, 40-200 Nm) electric angle nut tightening machine
  • Atlas Copco SRTT-B Fixed Reaction Torque Sensor
  • Atlas Copco ACTA4000/3000 is a portable torque analysis and calibration instrument
  • Atlas Copco Tensor STB Wireless Tightening Tool
  • Atlas Copco PF4000 Setup Guide
  • Atlas Copco Power Focus 6000 Pocket Guide
  • Atlas Copco ZR-ZT 110-275/132-315 VSD oil-free screw air compressor
  • Atlas Copco PowerMACS 4000 Tightening Control System
  • Atlas Copco Elektronikon MK5 Swipe Controller
  • Atlas Copco Tensor ES electric tightening tool paired with Power Focus 600 controller
  • ADLINK STC2-AL/KL series intelligent touch computer
  • ADLINK STC-15W04 industrial touch all-in-one machine
  • ADLINK SP2- EHL series fanless open panel PC
  • ADLINK PXIS-2719A 19 slot 3U PXI chassis
  • ADLINK PXIe-9908 8-channel four quadrant high-density source measurement unit SMU (Source Measure Unit) PXIe module
  • ADLINK PXIe-9852 2-channel 14 bit, up to 200 MS/s synchronous sampling PXIe high-speed digitizer
  • ADLINK PXIe-9848 8-channel 14 bit, up to 100MS/s synchronous sampling PXIe high-speed digitizer
  • ADLINK PXIe-9834 4-channel 16 bit, up to 80MS/s synchronous sampling PXIe digitizer
  • ADLINK PXIe-9529H is an 8-channel 24 bit, 256kS/s synchronous sampling dynamic signal acquisition PXIe module
  • ADLINK PXIe-3988 3U PXI Express Zero Slot Embedded Controller
  • ADLINK PXIe-3987/3977/3937 PXI Express Zero Slot Embedded Controller
  • ADLINK PXIe-3987 PXI Express Embedded Controller
  • ADLINK PXIe-3988/3987/3977/3937-TL PXI Express Embedded System Controller
  • ADLINK PXI-2020/PXI-2022 Synchronous Sampling Multi functional PXI Data Acquisition Card
  • ADLINK DAQ-20XX/PXI-20XX series 4-channel synchronous multifunctional data acquisition card
  • ADLINK PXES-2788 series high-performance and high-power PXIe chassis
  • ADLINK PXES-2785 18 Slot PXI Express Chassis
  • ADLINK PXES-2780 18 Slot PXI Express Chassis
  • ADLINK PXES-2596 Gen3 9-slot PXI Express chassis
  • ADLINK PXES-2590 9-slot PXI Express chassis
  • ADLINK PXES-2314T Thunderbolt 3 Compact 4-slot PXI Express Chassis
  • ADLINK PXES-2301 6-slot PXI Express chassis
  • ADLINK PCIe U300 series USB3 Vision image acquisition host card
  • ADLINK PCIe PXIe 8565 PCIe to PXIe Remote Expansion Kit
  • ADLINK PCIe GIE74V 4-channel GigE Vision acquisition card
  • ADLINK PCIe - GIE7x Series PCIe x4 Interface GigE Vision PoE+Gigabit Network Image Capture Card
  • ADLINK PCIe CPL64V PCIe Gen3 x4 specification Camera Link image acquisition card
  • ADLINK PCIe CPL64 PCIe x4 Interface Camera Link Image Capture Card
  • ADLINK PCIe 8560+PXI 8565 PCI Express to PXI Remote Bus Expansion Kit
  • ADLINK PCIe 8332/PCIe 8334/PCIe 8338 EtherCAT Master Station Motion Controller
  • ADLINK PCIe 7432 bus industrial isolated digital I/O board
  • ADLINK PCIe 7256 Industrial Digital I/O Board
  • ADLINK PCIe‑833x（PCIe‑8332 / 8334 / 8338）PCIe EtherCAT Master Motion Controller
  • ADLINK PCIe -10GPoE Dual Channel PCIe Gen3 PoE+10GigE Vision Image Acquisition Card
  • ADLINK PCI-8254/PCI-8258 High end 4/8-axis Advanced Motion Control Card
  • ADLINK PCI-8158/PCI-8154 Modular Architecture Advanced Pulse Motion Control Card
  • ADLINK PCI-8134A entry-level 4-axis pulse servo/stepper motion control card
  • ADLINK PCI-725X Series Relay Output and Isolation Digital Input Board
  • ADLINK PCI-6308 series isolated analog output board
  • ADLINK PanKonix ® Series industrial HMI all-in-one machine
  • ADLINK NuDAM-6100 series DIN rail installation, RS-485 bus distributed IO module
  • ADLINK NuDAM-6000 complete distributed RS-485 acquisition and control system
  • ADLINK NEON-2000-ONO series AI intelligent camera
  • ADLINK NuDAM-65xx Communication Module
  • ADLINK NuDAM-60xx Series Digital I/O Modules
