Home >> GE >> GE IC754CBL12CTD 12'QuickPanel View & QuickPanel Control
Current position：

Brand

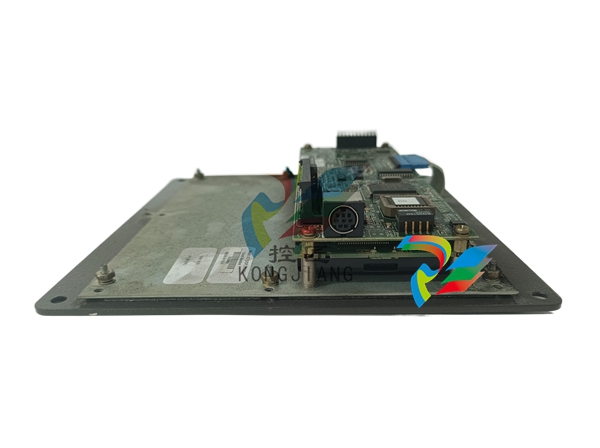

GE IC754CBL12CTD 12'QuickPanel View & QuickPanel Control
❤ Add to collection

GE IC754CBL12CTD 12'QuickPanel View & QuickPanel Control

+86-15305925923
Mr.Wang
wang@kongjiangauto.com

Congratulations on your purchase of a QuickPanel View/Control, the most

advanced compact control computer available. The QuickPanel View/Control is

available in different configurations to suit your requirements, either as a fullfeatured HMI, or as a combination of HMI and controller for local and distributed

control applications. Equally at home in a networked environment or as a standalone unit, the QuickPanel View/Control is the ideal solution for factory floor HMI

and control.

￥17664.00
￥15456.00
Weight：3.500KG
Quantity：
(Inventory: 33)
Consultation
Product parameters
  • Telephone:+86-15305925923
  • contacts:Mr.Wang
  • Email:wang@kongjiangauto.com
Description

Congratulations on your purchase of a QuickPanel View/Control, the most

advanced compact control computer available. The QuickPanel View/Control is

available in different configurations to suit your requirements, either as a fullfeatured HMI, or as a combination of HMI and controller for local and distributed

control applications. Equally at home in a networked environment or as a standalone unit, the QuickPanel View/Control is the ideal solution for factory floor HMI

and control.

GE IC754CBL12CTD 12'QuickPanel View & QuickPanel Control

Powered by Microsoft Windows CE.NETTM, today’s embedded control operating
system of choice, the QuickPanel View/Control provides a fast track for application
program development. The commonality with other versions of Windows
simplifies porting your existing program code. Another benefit of Windows CE is
the familiarity of the user interface, shortening the learning curve for operators and
developers alike. The availability of third-party application software makes this
operating system even more attractive.
The 12" QuickPanel View & QuickPanel Control is an all-in-one microcomputer
designed for maximum flexibility. The design, based on an advanced Intel®
microprocessor, brings together a high-resolution touch-screen operator interface
with a variety of I/O options. With many standard ports and expansion busses from
which to choose, you can connect to most industrial equipment.
The QuickPanel View/Control is equipped with several memory types to satisfy
even the most demanding applications. A 32 MB section of DRAM is split between
the operating system, an object store, and application memory. Functioning as a
virtual hard drive, a 32 MB or 64MB section of non-volatile FLASH memory
(depending on your model) is divided between the operating system and persistent
storage for application programs. The retentive memory consists of 512 KB of
battery-backed SRAM for data storage, ensuring your valuable data will never be
lost, even during a power failure.
The many features of the QuickPanel View/Control make it an obvious choice for a
world of applications. Your smart choice will provide reliable operation for years tocome.


Copy Project to Flash Card
RestorePCCard is a custom utility for transferring CIMPLICITYTM Machine EditionTM
Projects between compatible QuickPanel View/Control units via CF cards.
Caution: Ensure that the copy or update operation is complete (i.e., no busy or
wait cursor displays) before disconnecting power.
To copy a Machine Edition project onto a CF card
1. Ensure there is a blank CF card in the in the CF port.
2. Double tap the Copy Project to Flash Card icon on the desktop.
3. Tap Yes when the Proceed with Copy to CF Card confirmation dialog box appears.
The system copies the project onto the blank CF Card.
To update a Machine Edition project
You can update a Cimplicity Machine Edition application currently stored on the
QuickPanel View/Control with a revision stored on a CF Card.
1. Insert the CF Card containing an upgraded version of the Machine Edition project in the CF port.
2. Reboot the machine (see page 13).
The QuickPanel View/Control automatically loads the new project from the CF
Card, overwriting the old project on the machine.
3. Remove the CF Card from the slot.
HTTP File Transfer Utility
The HTTP File Transfer Utility (HFTU) is a small, standalone command line
program that allows you to send and delete files to and from computers over a
network. The HFTU uses the HTTP protocol, so you can even send files to
computers over the Internet.
Run the HTTP utility from a command line prompt, from a batch file (.BAT) or as
an application call in a script. The HTTP utility is an executable (.EXE) file included
in the 12" QuickPanel View & QuickPanel Control’s operating system.
The HTTP utility currently supports two file transfer commands: COPY and
DELETE.
Note: In order to function, the HTTP File Transfer utility requires both computers to
have web servers that support PUT functionality. (Most web servers support PUT,
including the CIMPLICITY Machine Edition web server installed with the runtimes
for View and Logic Developer - PC.) If in doubt, check the documentation for your
web server.
TOUCH SCREEN DISPLAY
The QuickPanel View/Control has an integrated flat-panel display providing 15 bits
per pixel for a total of 32,768 colors. The back-lit 12-inch diagonal panel employs
TFT technology to provide a bright operator interface. To extend the backlight’s
life, it can be set to turn off automatically.
The display supports a resolution of 800 by 600 pixels.
To adjust the display brightness
1. In the Control Panel, double-tap Display and choose the Brightness tab.
The Brightness dialog box appears.
2. Drag the Brightness slider between Lowest and Highest.
3. Tap OK to exit the control panel.

4. Run the Backup program to save settings through a power cycle (see page 13)
IC7540BL12CTD

IC754CGL12CTD

IC754CSF12CTD

IC754CSL12CTD

IC754VBL12CTD

IC754VGL12CTD

IC754VSL12CTD

To enhance the QuickPanel View/Control’s capabilities with additional flash
memory, the unit is equipped with a CF (Compact Flash) Type 2 port on its side.
A CF card is inserted in this port with the card’s front facing the back of the unit
(the narrow side slot on the card should be toward the bottom).
Note: For full protection from electrostatic discharge, peel off the paper label on
the side of the CF card facing the bezel to allow contact between the card and the
internal frame ground contacts on the CF connector.
The card should slide in easily—to avoid damage, do not force it.
The Copy Project to Flash Card utility (see page 16) lets you transfer Cimplicity
Machine Edition projects between QuickPanel View/Control units via CF Cards.
No Compact Flash cards are supplied with the QuickPanel View/Control. A list of
cards (and other devices) that have been tested and are compatible can be found
by visiting www.gefanuc.com/support and choosing QuickPanel from the Product
List.
