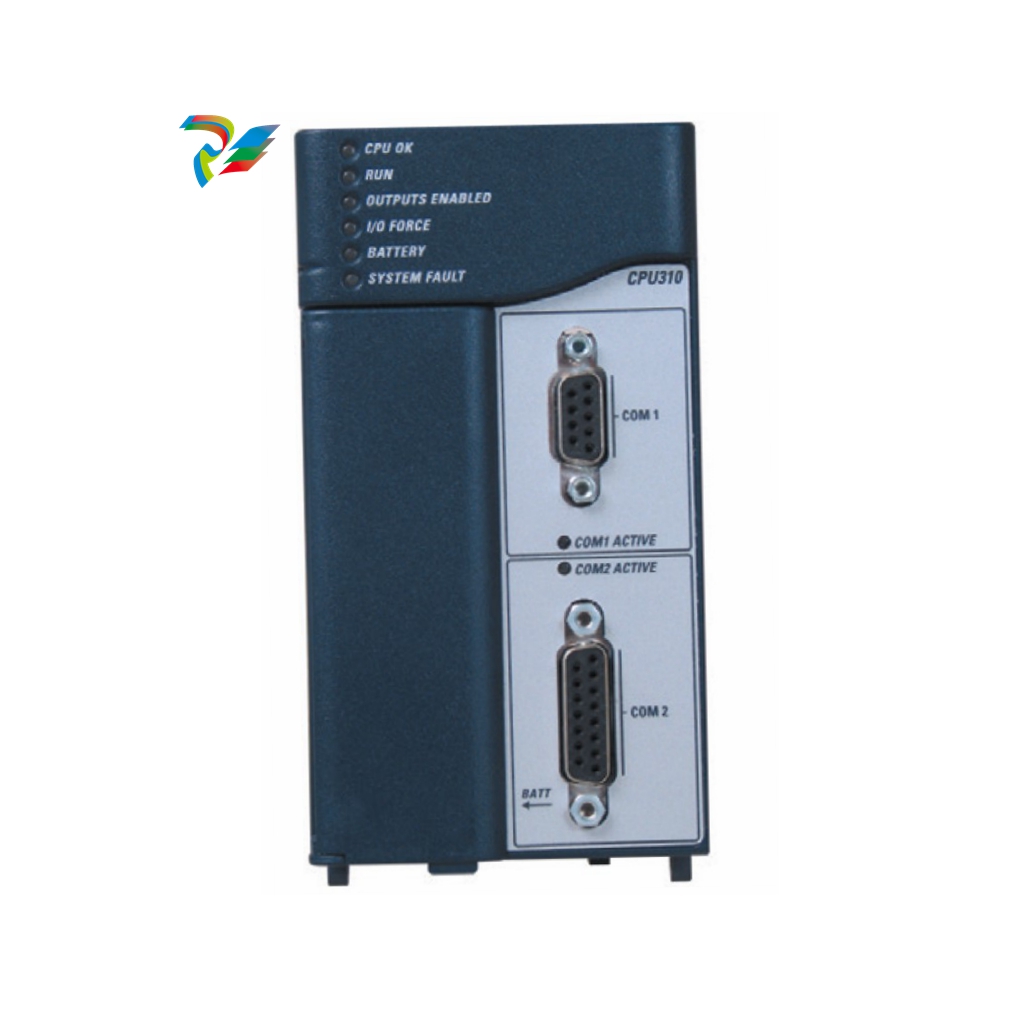

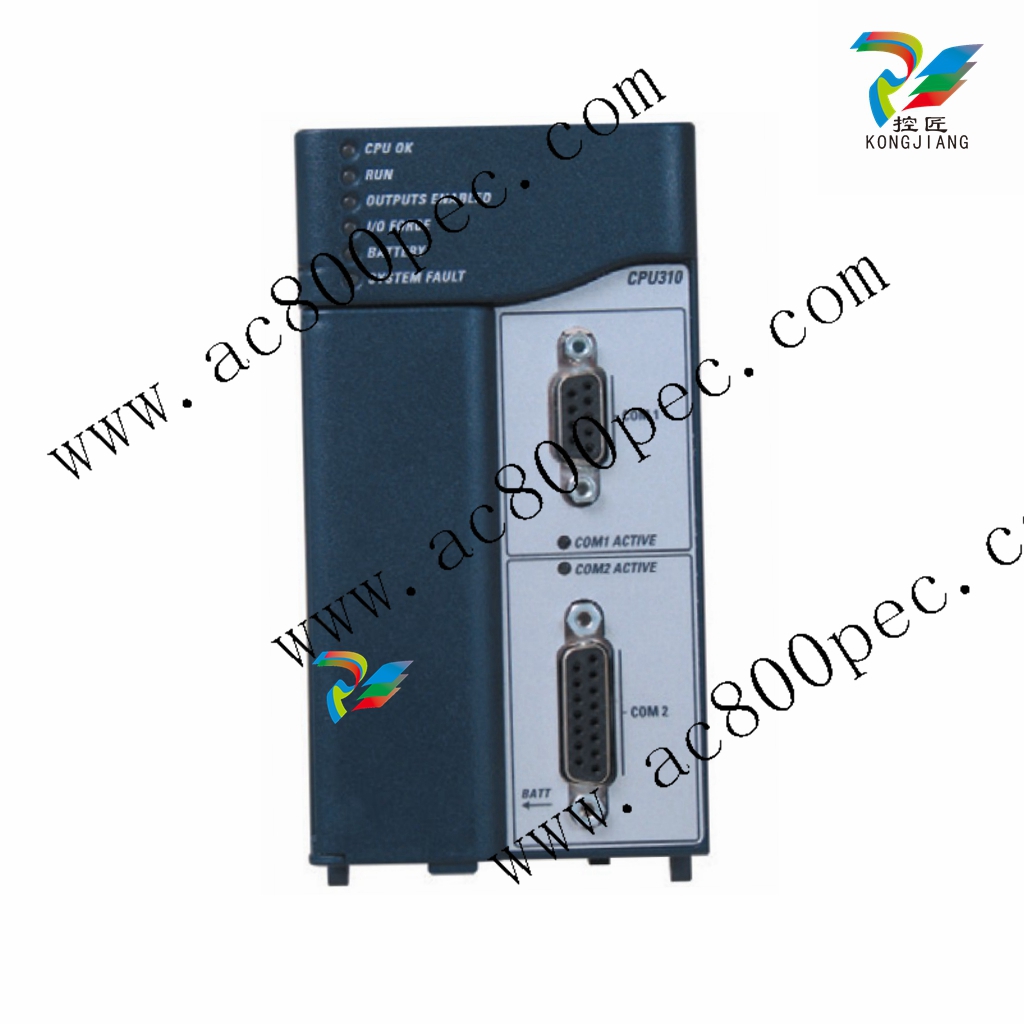

GE IC695CPU310 CPU with two built-in serial ports
Examples of Typical Application using a PACSystems RX3iApplication: 1000 Watt Low Inertia Motor with Brake. Configuration for Controller (Example application requiring (120)
24 VDC inputs and (80) Relay outputs AC power supply)
Qty Part Number Description
Controller, I/O and Display
1 IC695CPU310 CPU with two built-in serial ports
1 IC695PSA040 120/240 VAC, 125 VDC Power Supply, current available 9 Amps @ 3.3 VDC; 6 Amps @ 5 VDC; 1.6 Amps @ 24 VDC maximum
1 IC695CHS016 16 Slot Universal Base
4 IC694MDL660 Discrete Input Module, 24 VDC Positive Logic, 32 points (Requires terminal block)
5 IC694MDL940 Discrete Output Module, Relay 2.0 A per point Form A, 16 points (Terminal block included)
4 IC694TBB032 Terminal Block, Box Style
1 IC693DSM314 Servo Motion Module, 4 analog axes supported per module
1 IC693ACC336 DSM Analog Servo Interface Terminal Board
1 IC693CBL324 DSM Analog TB Interface Cable, 1 m (3.28 feet)
1 IC800VMCI010 VersaMotion flying lead I/O interface cable, 1 m (3.28 feet)
Servo Amplifier and Motor
1 IC800VMM10LBKSE25 VersaMotion 1000 Watt Low Inertia Servo Motor with brake. Motor has keyway and oil seal
1 IC800VMA102 Servo Amplifier, 1000 Watts, 220 VAC
1 IC800VMCB1030 Brake and Power Cable for 1000 Watt servo motor with brake, 3 m (9.8 feet)
1 IC800VMCE1030 Encoder Cable for 1000 Watt and greater, 3 m (9.8 feet)
1 IC800VMTBC005 I/O Terminal Block and Cable (0.5 meters)
1 IC800VMCS030 Communications Cable from Servo Driver to PC, 3 m (9.8 feet)
Programming Software for Control, Display and Motion
1 BC646MPP001 Machine Edition Professional Development Suite with Proficy GlobalCare Complete. Includes VersaMotion configuration tool,
View Development for QuickPanel and PLC Standard with programming cable. Proficy GlobalCare with 15 months of free
upgrades which is renewable on an annual basis.

Utilizing field-proven Series 90-70 PLC,
Genius I/O, and VersaMax I/O products,
GMR (Genius Modular Redundancy)
system is a modular redundancy
system developed by GE, forming a
flexible and powerful safety system
up to and including SIL 3.
GMR contains three subsystems; the
control unit is the PLC subsystem,
and there is an input subsystem
and an output subsystem. All of the
subsystems can be formed to simplex,
duplex or triplex redundancy.
GMR provides advanced and abundant
diagnostic abilities that are easily
programmed by using Proficy Machine
Edition software. The safety system
must be configured using all parts
that are TUV certified, as defined in
the specified configuration of the GMR
documentation
