ABB TB511-ARCNET Terminal base



ABB TB511-ARCNET Terminal base
Extreme situations

Terminal blocks suitable for extreme environmental conditions without XC version markings.

Figure 3 (see part number 1SAP3... (label)) is used to identify the XC version.

Tips!

Not using wall mounted accessories will damage the module!

During screw assembly, using wall fittings (TA526) can prevent module bending and damage.

The wall fitting TA526 must be inserted.

1. Similar to a DIN rail, fasten TA526 into the rear of the module. A TA526 rotates 180 degrees.

2. Use screws (M4, maximum torque of 1.2 Nm) to tighten the module from the front end.

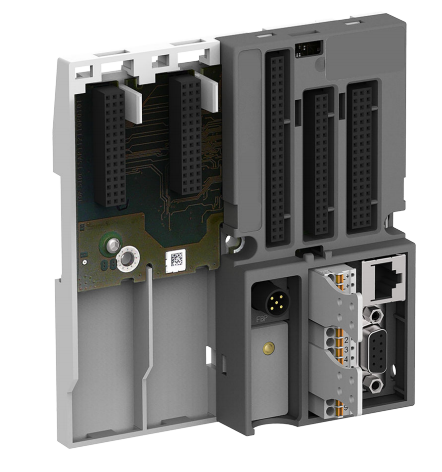

1. I/O bus

2 processor module slots

3 communication module slots

4 fieldbus plug interface, not suitable for terminal block TB523-2ETH

5 Power Supply 24 VDC

6 serial interface COM1

7 Network interface: TB5xx ETH: Ethernet, TB5xx-ARCNET： ARCNET

8 TB5x1: Serial interface COM2, TB5x3-2ETH: Second Ethernet network interface

9 wall mounted holes

1.5.1 Power Supply

Pin allocation label function description

The terminal board has been removed and inserted

L++24 V DC power supply voltage positive pin

L++24 V DC power supply voltage positive pin

M 0 V power supply voltage negative pin

M 0 V power supply voltage negative pin

FE functional grounding

1.5.2 Serial Interface COM1

pin assignment

Pin Pin

signal

Interface

explain

Terminal P

RS-485

Terminal P

two

RxD/TxD-P

RS-485

Receive/send, positive pole

three

three

，WOO

WO0

four

RxD/TxD-N

RS-485

Receive/send, negative pole

five

four

Terminal N

RS-485

Terminal N

six

five

RTS

RS-232

Request to send (output)

six

TxD

RS-232

Send data (output)

nine

seven

SGND

Signal grounding

Signal grounding

The terminal board has been removed

The terminal board has been inserted

RS-232

enter

eight

RxD

Receive data (input)

nine

CTS

RS-232

Clear send (input)

Tips!

Idle connector!

Ensure that the terminal board is always connected to the terminal block, even if the interface is not in use.

1.5.3 Serial Interface COM2

pin assignment

serial interface

Pin Pin

signal

Interface

explain

one

FE

Functional grounding

two

TxD

RS-232

send data

output

three

RxD/TxD-P

RS-485

Receive/Send

positive electrode

RTS

RS-232

Request to send

output

five

SGND

Signal grounding

0V power supply output

six

+5V

5V power supply output

seven

RxD

RS-232

receive data

input

eight

RxD/TxD-N

RS-485

Receive/Send

negative pole

nine

CTS

RS-232

Clear send

input

shield

FE

Functional grounding

Tips!

There is a risk of corrosion!

If XC equipment is used in a salt spray environment, idle connectors and slots may be corroded.

For XC device TA535, idle connectors and slots should be protected with TA535 protective covers.
