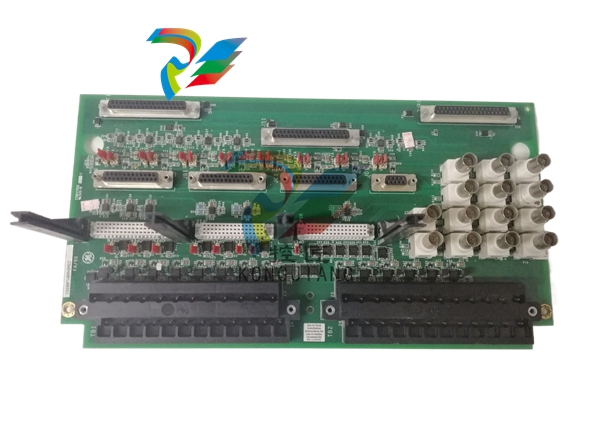

GE 996D957G1 996D956-0 PCB Circuit Boards Precision Electronics for Industrial Control
Material:High-grade FR-4 substrate with gold-plated contacts Operating Temperature:-40"C to +85"C Power Consumption:5W Board Size:152mm x 102mm Number of Layers:Double-sided PCB Thickness:0.635mm Connection Ports:24-pin DIP socket for easy connection Certifications:UL, CE, FCC compliant The GE 996D957G1 & 996D956-0 PCB Circuit Boards are designed for seamless integration into complex industrial control systems, ensuring robust performance under demanding conditions.
Equipped with high-quality FR4 epoxy resin substrates, these boards offer superior thermal stability and electrical insulation, guaranteeing longevity and reliability. Featuring an IP20 enclosure rating, they provide adequate protection against dust and splashing water, making them suitable for a wide range of industrial environments. With a versatile operating temperature range of -40"C to +85"C, these circuit boards can withstand extreme environmental conditions without compromising performance.
Each board is meticulously tested to meet stringent quality standards, ensuring compatibility with various industrial automation components and systems. These PCBs support a power supply of 12V DC, offering a reliable and efficient energy solution for industrial applications, with a load capacity of up to 5A per channel, allowing for flexible customization based on specific system requirements. These PCB circuit boards from GE are engineered for high performance in industrial control systems, offering reliable signal processing capabilities across a variety of applications.
Main Functions
Power system monitoring and control:
The power interface board can be used for power system monitoring and control equipment to ensure the safe, stable and reliable operation of the power system.
Power plant automation:
In the power plant, it can be used to connect and manage the power supply of the mastering system and monitoring equipment to improve the automation level of the power plant.
Power transformer and distribution:
Applicable to substations and distribution stations, it is used to govern the power supply of transformers, circuit breakers and other equipments to ensure the high efficiency of power transmission and distribution.
Industrial Process Mastering:
In manufacturing and chemical workshops, this power interface board can be used for power management of automation systems, inner and control equipment to enhance productivity and safety.
Building Automation:
It can be used in building automation system, power supply to lighting, air conditioning, security equipment, etc., to achieve intelligent management of building equipment.
Railway flag signal system:
In the railway system, it is used in the power management of railway flag signal equipment and control system to ensure the stable operation of railway signal system.
Smart Grid:
In the smart grid, the power interface board can be used to connect and manage the digital power equipment and promote the intelligent development of the power grid.
Traffic Flag Signal System:
In the traffic flag signal system of routes and intersections, it is used to supply power to the flag master and equipment to ensure the normal display of traffic signals.
Aerospace:
In aviation and aerospace, the power interface board can be used in the control system of aircraft and spacecraft to provide stable and reliable power support.
It is suitable for land initiatives, oilfield equipment and other categories, providing power support for various land engineering equipment.
