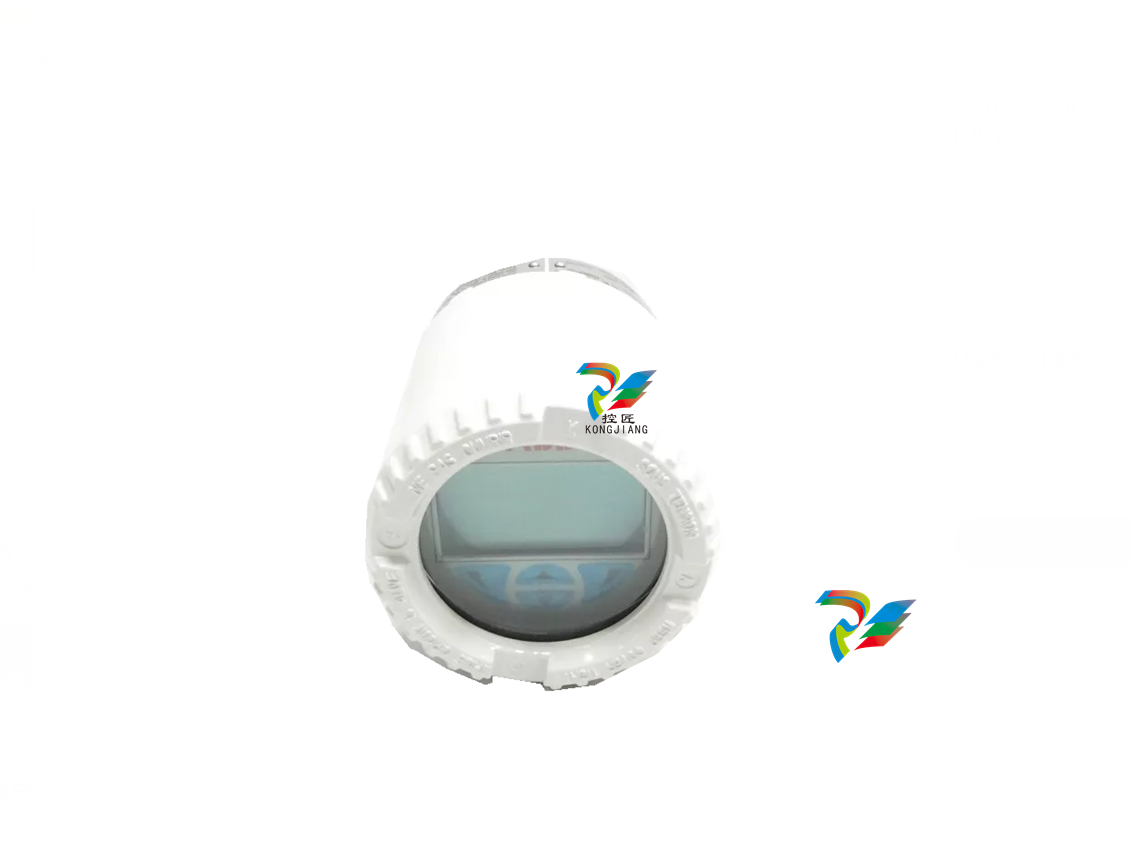

ABB temperature transmitter TTF300-H5
ABB temperature transmitter TTF300-H5
ABB temperature transmitter TTF300-H5 is a temperature transmitter product produced by ABB, belonging to the TTF300 series. However, it should be noted that when it comes to the suffix "- H5", it may represent a specific configuration, version, or application scenario of the product, but not all TTF300 models will directly use "- H5" as a suffix. Therefore, the following information will be based on the general characteristics of ABB TTF300 series temperature transmitters and cover as many features as possible that may be relevant to "- H5" (if applicable).
Overview of ABB TTF300 series temperature transmitter
1. Product features:
High precision measurement: The TTF300 series temperature transmitter provides high-precision temperature measurement, which helps improve the accuracy and efficiency of process control.
Multi protocol support: Supports multiple communication protocols such as HART, PROFIBUS PA, or FOUNDATION Fieldbus, making it easy to integrate with different control systems.
Enhanced diagnostic information: Provides rich diagnostic information that helps quickly locate and solve potential problems.
Flexible configuration: It can be configured and set up in various ways, such as DAT200 asset management software, FDT/DTM tools, or local HMI displays.
2. Technical parameters (example, specific parameters may vary by model):
Measurement range: Depending on the selected sensor and configuration, it can cover a wide temperature range.
Accuracy: Usually has a high measurement accuracy, such as ± 0.5% or higher.
Power supply: Generally powered by 24VDC, the output is a 4-20mA two-wire signal.
Explosion proof rating: may include options such as intrinsic safety type (ia Ⅱ CT6) and explosion-proof type (d Ⅱ CT4), suitable for different hazardous areas.
Environmental adaptability: It has a wide working temperature range and good electromagnetic compatibility.
3. Application scenarios:
The TTF300 series temperature transmitter is widely used in industrial fields such as petroleum, chemical, power, metallurgy, etc., for various temperature measurement and control scenarios.
Explanation on the suffix "- H5"
Since '- H5' is not a standard suffix for TTF300 series temperature transmitters, it may represent some special configuration or customization option. Specifically, it may involve the following aspects:
Specific features: may have added certain specific features or improved certain performance parameters.
Application scenarios: may have been optimized for specific application scenarios.
Customized service: It may be one of the customized service results provided by ABB to customers.
