ABB-PP865/3BSE043448R501-Industrial touch screen panel
❤ Add to collection

ABB-PP865/3BSE043448R501-Industrial touch screen panel

+86-15305925923
Mr.Wang
wang@kongjiangauto.com

The Panel 800 operator panel is developed to satisfy the demands of humanmachine communication. Built-in functions such as displaying and controlling text,

dynamic indication, time channels, alarm and recipe handling are included


65463.00
¥68743.00
Weight:4.200KG
Quantity:
(Inventory: 33)
Consultation
Product parameters
  • Telephone:+86-15305925923
  • contacts:Mr.Wang
  • Email:wang@kongjiangauto.com
Description

The Panel 800 operator panel is developed to satisfy the demands of humanmachine communication. Built-in functions such as displaying and controlling text,

dynamic indication, time channels, alarm and recipe handling are included



ABB-PP865/3BSE043448R501-Industrial touch screen panel

The operator panel work, for the most part, in an object-oriented way, making it  easy to understand and use. The configuration operation of the panel is made in a  personal computer, using the configuration tool Panel Builder 800. The project is  then transferred and stored in the operator panel. The operator panel can be connected to many types of automation equipment, such  as PLCs, servos or drives. In this manual the expression “the controller“ is used as a  general term for the connected equipment. This manual explains how to install the operator panel. Please refer to the manual  Panel Builder 800. Programming and Installation (3BSE043445Rxxx) for further  information. The release history of the Panel 800 is presented below.

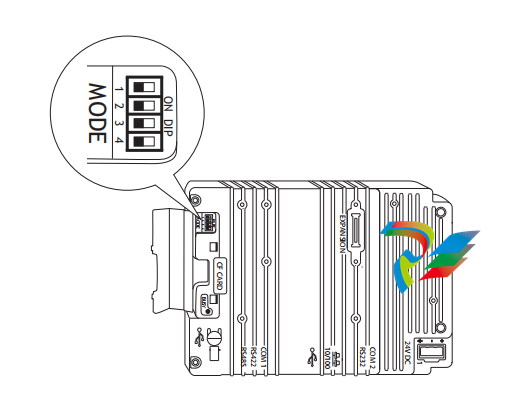

Mode Switches All mode switches must be in OFF position during operator panel use. The mode switches should not be touched unless by qualified personnel. The operator panel has four mode switches (DIP switches) located on the back of  the operator panel. The drawing below shows where the switches are located

MODE 1234 Description 0000 Run mode, normal operation. 0010 System Restore, resets the file system and registry & re-installs the  system program (OPsys_bxxx.CAB). Restores the operator panel to  factory settings. Note: It is possible that the system program in the operator panel has  been updated after production (for example in stock or by an  integrator). This update/newer version of the system program will be  deleted and replaced with the version that was used in production if  the operator panel is restored to the factory settings with this System  Restore function. However, the system program in the operator panel  can be updated again to the latest version by using the Update  Operator Panel System Program function in the configuration  software for the operator panels. 0100 Image Load mode, allows upgrading of the complete software  package in the operator panel.  Note: All files including the file system in the operator panel will be  deleted when upgrading with Image Loader. 1000 Service Menu mode, the service menu for the system program is  shown. Allows the user to set IP configuration, erase the project and  calibrate the touch screen. 1110 Self-test. xxx1 Hard reset ( forces the panel to reset)

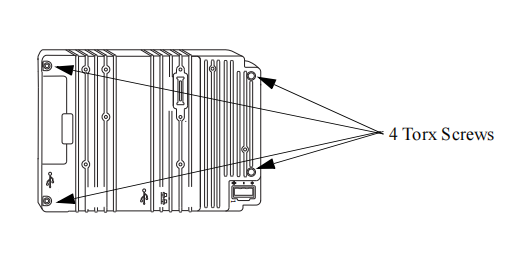

Internal Compact Flash Memory Card An internal Compact Flash memory card can be used to expand the project memory. Compact Flash cards of type I and II are supported by the operator panels.  Recommended Compact Flash memory cards are SiliconSystems SiliconDrive,  SanDisk Industrial Grade and Cactus 203-, 302-, 303-series. Installation Perform the following steps to install an internal Compact Flash card in the operator  panel:  1. Turn off the power to the panel. 2. Remove the back cover on the operator panel, using a torx screwdriver  (T10*50)

Follow the instructions in the manual for the operator panel to make settings for the  Ethernet / TCP/IP project transfer in the configuration tool. Technical Specifications • Single chip USB to 10/100 Mbps Fast Ethernet. • Compliant with USB specifications 1.0. 1.1. and 2.0. • Full/High Speed USB Device with bus power capabilities. • IEEE 802.3u 100BASE-T, TX, and T4 compatible. • Embedded 7K*16 bit SRAM, 256*16 bit SRAM and 8 FIFOs. • Supports both full-duplex or half-duplex operation Fast Ethernet. • Supports suspended mode and remote wake up. • Optional PHY power down mode for power savings. • Supports automatic loading of Ethernet ID, USB Descriptors and Adapter  Configuration from EEPROM on power-on initialization. • Ethernet PHY loop-back diagnostic capability. Connections to the Controller For information about the cables to be used when connecting the operator panel to  the controller, please refer to the help file for the driver in question. Other Connections and Peripherals Cables, peripheral equipment and accessories must be suitable for the application  and its environment. For further details or recommendations, please refer to the  supplier. CB810 is not approved for fixed installation or for use when the Panel 800 is  installed and/or running. It should only be used for project/file transfer between a  PC and the Panel 800. CB810 cannot be connected directly to the Panel 800. When using a compact flash card, do not remove the card when the busy indicator  is illuminated.
