Available in a variety of display sizes, the QuickPanel View bundled visualization solution
provides the tools required for today’s application needs. By integrating the best-selling
QuickPanel family of touch screens with award-winning Proficy Machine Edition software, QuickPanel View delivers flexible, scalable performance on a rugged hardware
platform. The intuitive environment of Proficy View - Machine Edition software helps
reduce application development time, and connectivity is made easy with a family of
serial, Ethernet and Fieldbus interfaces.

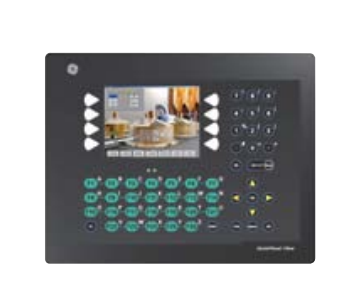

GE IC754VGI08CTD Operator Interfaces
QuickPanel View - Europe, Middle East and Africa Operator InterfacesAvailable in a variety of display sizes, the QuickPanel View bundled visualization solution
provides the tools required for today’s application needs. By integrating the best-selling
QuickPanel family of touch screens with award-winning Proficy Machine Edition soft ware, QuickPanel View delivers flexible, scalable performance on a rugged hardware
platform. The intuitive environment of Proficy View - Machine Edition software helps
reduce application development time, and connectivity is made easy with a family of
serial, Ethernet and Fieldbus interfaces.
Operator Interfaces
IC754VGI08CTD IC754VGI12MTD IC754VGI12CTD
Product Name
QuickPanel View Display,
8” TFT-Color
Intermediate
QuickPanel View Display,
12” Monochrome
Intermediate
QuickPanel View Display,
12” TFT-Color
Intermediate
Lifecycle Status Active Active Active
Display Size 8.5” (Diagonal) 12.1 Inch (Diagonal) 12.1 Inch (Diagonal)
Display Type TFT Monochrome TFT
Resolution 800 x 600 pixels 800 x 600 pixels 800 x 600 pixels
Memory: DRAM 32 MB 32 MB 32 MB
Memory: Expandable To 64 MB or 96 MB To 96 MB To 96 MB
Serial: Com #1 RS232/RS485 RS232/RS485 RS232/RS485
Serial: Com #2 N/A N/A N/A
Ethernet: LAN #1 10/100 Mbps 10/100 Mbps 10/100 Mbps
Ethernet: LAN #2 N/A N/A N/A
Communication Expansion
GE Genius,
Data Highway Plus†,
DeviceNet Slave, &
PROFIBUS Slave
GE Genius,
Data Highway Plus†,
DeviceNet Slave, &
PROFIBUS Slave
GE Genius,
Data Highway Plus†,
DeviceNet Slave, &
PROFIBUS Slave
Compact Flash One, Type 2 One, Type 2 One, Type 2
Agency Approval
UL - Class 1 Div 2 (A, B, C, D)
ATEX - Class 1 Zone 2
CE Mark
UL/cUL - Class 1 Div 2 (A, B, C, D)
ATEX - Class 1 Zone 2
CE Mark
UL/cUL - Class 1 Div 2 (A, B, C, D)
ATEX - Class 1 Zone 2
CE Mark
Environmental Rating
NEMA 4/4X, UL50 Type 4/4X,
IP65 when properly mounted
in an IP65 rated enclosure
NEMA 4/4X,
IP65 when properly mounted
in an IP65 rated enclosure
NEMA 4/4X,
IP65 when properly mounted
in an IP65 rated enclosure
Panel Cut Out (W x H x D)
228mm x 186mm x 77mm
(8.97” x 7.34” x 3.03”)
302mm x 228mm x 60mm
(11.88” x 8.96” x 2.37”)
302mm x 228mm x 60mm
(11.88” x 8.96” x 2.37”)
Bezel Dimensions and Depth
(W x H x D)
249mm x 208mm x 9mm
(9.8” x 8.18” x 0.35”)
337mm x 263mm x 10mm
(13.26” x 10.34” x 0.38”)
337mm x 263mm x 10mm
(13.26” x 10.34” x 0.38”)
Input Voltage 10.8 to 30.0 VDC 12 VDC @ ±20% or
24 VDC @ ±20%
12 VDC @ ±20% or
24 VDC @ ±20%
Power Consumption 24W Less than 48W @ 24 VDC Less than 48W @ 24 VDC
Operating Temperature 0 to 60°C (32 to 140°F) 0 to 50°C (32 to 122°F) 0 to 50°C (32 to 122°F)
Storage Temperature -20 to 70°C (-4 to 158°F) -20 to 70°C (-4 to 158°F) -20 to 70°C (-4 to 158°F)
Operating Humidity 10% to 90% non-condensing 10% to 85% non-condensing 10% to 85% non-condensing
Indicators - LEDs bi-color (pwr), tri-color (user) bi-color (pwr), tri-color (user) bi-color (pwr), tri-color (user)
