GE IC754VGB06MTD Operator Interfaces
❤ Add to collection

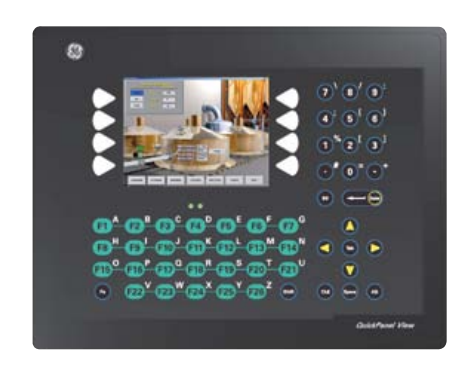

GE IC754VGB06MTD Operator Interfaces

+86-15305925923
Mr.Wang
wang@kongjiangauto.com

Available in a variety of display sizes, the QuickPanel View bundled visualization solution

provides the tools required for today’s application needs. By integrating the best-selling

QuickPanel family of touch screens with award-winning Proficy Machine Edition software, QuickPanel View delivers flexible, scalable performance on a rugged hardware

platform. The intuitive environment of Proficy View - Machine Edition software helps

reduce application development time, and connectivity is made easy with a family of

serial, Ethernet and Fieldbus interfaces

18880.00
¥18800.00
Weight:3.550KG
Quantity:
(Inventory: 88)
Consultation
Accessories
  • ABB-Binary I/O m
    Original :¥15774.00
    With a price :¥15774
    Quantity
  • ABB-Optical star
    Original :¥9993.00
    With a price :¥9993
    Quantity
  •
    Original :¥
    0.00

      With the total price :¥
    0.00
Product parameters
  • Telephone:+86-15305925923
  • contacts:Mr.Wang
  • Email:wang@kongjiangauto.com
Description

Available in a variety of display sizes, the QuickPanel View bundled visualization solution

provides the tools required for today’s application needs. By integrating the best-selling

QuickPanel family of touch screens with award-winning Proficy Machine Edition software, QuickPanel View delivers flexible, scalable performance on a rugged hardware

platform. The intuitive environment of Proficy View - Machine Edition software helps

reduce application development time, and connectivity is made easy with a family of

serial, Ethernet and Fieldbus interfaces




GE IC754VGB06MTD Operator Interfaces

QuickPanel View - Europe, Middle East and Africa Operator Interfaces
Available in a variety of display sizes, the QuickPanel View bundled visualization solution
provides the tools required for today’s application needs. By integrating the best-selling
QuickPanel family of touch screens with award-winning Proficy Machine Edition soft ware, QuickPanel View delivers flexible, scalable performance on a rugged hardware
platform. The intuitive environment of Proficy View - Machine Edition software helps
reduce application development time, and connectivity is made easy with a family of
serial, Ethernet and Fieldbus interfaces.
Operator Interfaces
IC754VGB06MTD IC754VHB06MTD IC754VGB06CTD IC754VGI06MTD
Product Name
QuickPanel View Display,
6” Monochrome
Basic
QuickPanel View Display,
6” Monochrome
Basic
QuickPanel View Display,
6” TFT
Basic
QuickPanel View Display,
6” Monochrome
Intermediate
Lifecycle Status Active Active Active Active
Display Size 5.7 Inch (Diagonal) 5.7 Inch (Diagonal) 5.7 Inch (Diagonal) 5.7 Inch (Diagonal)
Display Type Monochrome Monochrome 6” TFT Monochrome
Resolution 320 x 240 pixels 320 x 240 pixels 320 x 240 pixels 320 x 240 pixels
Memory: DRAM 16 MB 16 MB 16 MB 32 MB
Memory: Expandable No No No To 96 MB
Serial: Com #1 RS232/RS485 RS232/RS485 RS232/RS485 RS232/RS485
Serial: Com #2 None None None None
Ethernet: LAN #1 Download only Download only Download only 10/100 Mbps
Ethernet: LAN #2 None None None None
Communication Expansion
None None None GE Genius,
Data Highway Plus†,
DeviceNet Slave, &
PROFIBUS Slave
Compact Flash None None None One, Type 2
Agency Approval
UL/cUL - Class 1 Div 2 (A, B, C, D)
ATEX - Class 1 Zone 2
CE Mark
UL/cUL - Class 1 Div 2 (A, B, C, D)
ATEX - Class 1 Zone 2
CE Mark
UL/cUL - Class 1 Div 2 (A, B, C, D)
ATEX - Class 1 Zone 2
CE Mark
UL/cUL - Class 1 Div 2 (A, B, C, D)
ATEX - Class 1 Zone 2
CE Mark
Environmental Rating
NEMA 4/12/4X,
IP65 when properly mounted
in an IP65 rated enclosure
NEMA 4/12/4X,
IP65 when properly mounted
in an IP65 rated enclosure
NEMA 4/12/4X,
IP65 when properly mounted
in an IP65 rated enclosure
NEMA 4/12/4X,
IP65 when properly mounted
in an IP65 rated enclosure
Panel Cut Out (W x H x D)
156mm x 123.5mm x 51.5mm
(6.14” x 4.86” x 2.026”) or
200mm x 155mm x 66mm
(7.95” x 6.12” x 2.60”)
156mm x 123.5mm x 51.5mm
(6.14” x 4.86” x 2.026”) or
200mm x 155mm x 66mm
(7.95” x 6.12” x 2.60”)
156mm x 123.5mm x 51.5mm
(6.14” x 4.86” x 2.026”) or
200mm x 155mm x 66mm
(7.95” x 6.12” x 2.60”)
156mm x 123.5mm x 51.5mm
(6.14” x 4.86” x 2.026”) or
200mm x 155mm x 85mm
(7.95” x 6.12” x 3.33”)
Bezel Dimensions and Depth
(W x H x D)
216mm x 170mm x 29mm
(8.50” x 6.68” x 1.13”) or
216mm x 170mm x 7mm
(8.50” x 6.68” x 0.28”)
216mm x 170mm x 29mm
(8.50” x 6.68” x 1.13”) or
216mm x 170mm x 7mm
(8.50” x 6.68” x 0.28”)
216mm x 170mm x 29mm
(8.50” x 6.68” x 1.13”) or
216mm x 170mm x 7mm
(8.50” x 6.68” x 0.28”)
216mm x 170mm x 29mm
(8.50” x 6.68” x 1.13”) or
216mm x 170mm x 7mm
(8.50” x 6.68” x 0.28”)
Input Voltage 12 to 30.0 VDC 12 to 30.0 VDC 12 to 30.0 VDC 12 to 30.0 VDC
Power Consumption Less than 24W @ 24 VDC Less than 24W @ 24 VDC Less than 24W @ 24 VDC Less than 24W @ 24 VDC
Operating Temperature -10 to 60°C (14 to 140°F) -10 to 60°C (14 to 140°F) -10 to 60°C (14 to 140°F) -10 to 60°C (14 to 140°F)
Storage Temperature -20 to 70°C (-4 to 158°F) -20 to 70°C (-4 to 158°F) -20 to 70°C (-4 to 158°F) -20 to 70°C (-4 to 158°F)
Operating Humidity 10% to 85% non-condensing 10% to 85% non-condensing 10% to 85% non-condensing 10% to 85% non-condensing
Indicators - LEDs bi-color (pwr), tri-color (user) bi-color (pwr), tri-color (user) bi-color (pwr), tri-color (user) bi-color (pwr), tri-color (user)


Operator Interfaces

• Shared tags for increased
productivity – applications developed
for QuickPanel View can share tags
with other Proficy Machine Edition
applications, eliminating the need to
enter the data more than once
• Migration of applications developed
with QuickDesigner
• Extensive library of pre-configured
animation objects
• UL Class 1 Div 2 (A, B, C, D), ATEX
Class 1, Zone 2, CE Mark, DNV†
Available on select models. See following pages
for availability.
Proficy Machine Edition
