ABB REF 541 Feeder terminals


ABB REF 541 Feeder terminals

FEATURES

• Feeder terminal for protection, control,  measurement and supervision of medium  voltage networks

• New application areas for power quality  measurement, protection, capacitor bank protection and control and motor protection

• Voltage and current measurement via conventional measuring transformers or current and voltage sensors

• Fixed man-machine interface including a  large graphic display, or an external display module for flexible switchgear installation

• Extended functionality including protection, control, measurement, communication, power quality and condition  monitoring

• Protection functions including e.g. nondirectional and directional overcurrent and  earth-fault protection, residual voltage,  overvoltage and undervoltage protection, thermal overload protection, CBFP and  auto-reclosing

• Control functions including local and  remote control of switching objects, status indication of the switching objects and interlockings on bay and station level

• Measurement of phase currents, phase-to-phase and phase-to-neutral voltages,  residual current and voltage, frequency,  power factor, active and reactive power  and energy, etc.

• Condition monitoring including circuitbreaker condition monitoring, trip circuit  supervision and internal self-supervision of  the feeder terminal

• Additional functions including synchrocheck, frequency protection, capacitor  bank protection and control, measurement  of current and voltage harmonics

• RTD/analogue module for temperature  measurement, current/voltage measurement and mA-outputs

• Communication over two communication  interfaces: one for local communication  with a PC and the other for remote communication via a substation communication  system

• Part of the ABB Substation Automation  system

Application

The REF 541, REF 543 and REF 545 feeder  terminals are designed to be used for protection, control, measurement and supervision of  medium voltage networks. They can be used  with different kinds of switchgear including  single busbar, double busbar and duplex systems. The protection functions also support different types of networks such as isolated  neutral networks, resonant-earthed networks  and partially earthed networks. Application  area also covers medium-sized three phase  asynchronous motors as well as protection  and control of shunt capacitor banks used for  reactive power compensation. In addition to protection, measurement, control and condition monitoring functions, the feeder terminals are provided with a large amount of PLC  functions allowing several automation and  sequence logic functions needed for substation automation to be integrated into one unit.

Design

The feeder terminals REF 541, REF 543 and  REF 545 differ from each other regarding the  number of digital inputs and outputs available. Please, refer to section “Ordering” for more details. These feeder terminals incorporate a wide range of feeder terminal functions:

• Protection functions

• Measurement functions

• Power quality functions

• Control functions

• Condition monitoring functions

• General functions

• Communication functions

• Standard functions

Protection functions

Protection is one of the most important functions of the REF 54_ feeder terminal. The  protection function blocks are independent of  each other and have their own setting groups,  data recording, etc.

Either Rogowski coils or conventional current transformers can be used for protection  functions based on current measurement.  Correspondingly, voltage dividers or voltage  transformers are used for protection functions  based on voltage measurement.

For further information about functionality levels and the protection functions included  in them, refer to the table “Functionality levels, protection functions” in section  “Ordering”.


  • ABB 3BHT300009R1 DO620 Digital Output 32ch, 60VDC
  • ABB 3BHT300006R1 DO610 Digital Output 32ch 24VDC
  • ABB 0338434M-REF Refurbished DLM 02, Link module, as of V3
  • ABB DLM01 EXCITATION REDUNDANCY CONTROL SYSTEM
  • ALSTOM V4561484-0100 PCB circuit boards
  • ABB NE870 Network Router 3BSE080239R1
  • ABB DI610 – 32-Channel Digital Input Module for Industrial Automation
  • ABB DDO02 Industrial Digital Output Module
  • ABB 0369627MR DDO01 - DIGITAL OUTPUT
  • ABB DDI03 Module
  • ABB 0369626M-EXC Exchange of DDI 01, Digital input as of V 3
  • ABB Y0338701M DCP10 - CPU MODULE 8 MB
  • ABB DCP02 CPU MODULE
  • ABB 0369629M-REF Refurbished DAO 01, Analog output, as of V3
  • ABB DAI03 Digital Input Module
  • ABB D-20-0-1102 control module
  • ABB BB510 (DC5256) Digital Control Module
  • ABB BRC-300 Bridge Controller and Process Bus Adapter
  • ABB CI520V1 AF100 Communication Interface
  • ABB 3BHT300003R1 CI610 IOB_A Bus Extender for Basic Unit
  • ABB CI615 Controller Module
  • ABB EXC3BSE012868R1 CI626V1 AF100 Communication Interface
  • ABB CI627 Advanced Industrial Control Module
  • ABB 3BSE020520R1 CI810B AF 100 Fieldbus Comm. Interface
  • ABB CP450 Installation and Operation Manual
  • ABB CR-M4LS Logical socket for 2c/o or 4c/o CR-M relay
  • ABB 3HAC14550-2/09A Single servo drive unit
  • ABB 3HAC17326-1/02 Motor M26 Type B
  • ABB 3HNA001572-001 MCCB-02
  • ABB 3HNE 00313-1 TILLV.0317 Machine No. 64-25653
  • ABB 3HNE00313-1 (with 10 m cable and plug)
  • ABB 61615-0-1200000 Panel Controller
  • ABB AI610 – 32 Channel 12-bit Analog Input Module
  • ABB AI625 Analog Input 16ch, 12 Bit, 4-20 mA
  • ABB AI835A System 800xA hardware selector
  • ABB 3BHT300008R1 AO610 Analog Output 16ch, 12bit
  • ABB 3HAB8101-8/08Y Servo Drive Module
  • ABB 3HAC025466-001 Advanced Control Module for Industrial Automation
  • Rolls-Royce Marine AS 5880-PC1002 REV-A DEP. Steering - TENFJORD PCB Card
  • Rolls-Royce 5880-pc1002 Version A Dep Steering Gear-Tenfjord PCB Card 99046
  • Rolls-Royce Marine Lauer LCA 325. P2 PROFIBUS-DP Network Display Panel UN924
  • Rolls-Royce Marine UN924 Digital Display Controller
  • Rolls-Royce UN930 Digital Display Controller 24V
  • Rolls-Royce UN31 ECR Panel 000127603
  • Rolls-Royce Marine AS UN991.1 Distribution Plate
  • Rolls-Royce Propulsion Control Boards
  • Rolls-Royce SLIO 02 Canman controller network
  • Rolls-Royce Electronics 1071 Automatic Display Type No. 07918 B UN 921 ECR 24VDC
  • Rolls-Royce PCC1030C ULSTEIN Panel Controller Card
  • Rolls-Royce KAMEWA Propeller Control Room Panel Basic R160637A
  • Rolls-Royce Ulstein-UMAS V Marine Automation UN925 Panel Controller Roller for Parts
  • Rolls-Royce Marine AS UN921 Operator Panel
  • Rolls-Royce Marine r10I53s / R10I53S Panel Computer 98H0101A0000I Version 1.9
  • ABB 3BHB003689 Multifunction Controller Module
  • ABB 3ASC25H204 DAPU100 high-performance processor module

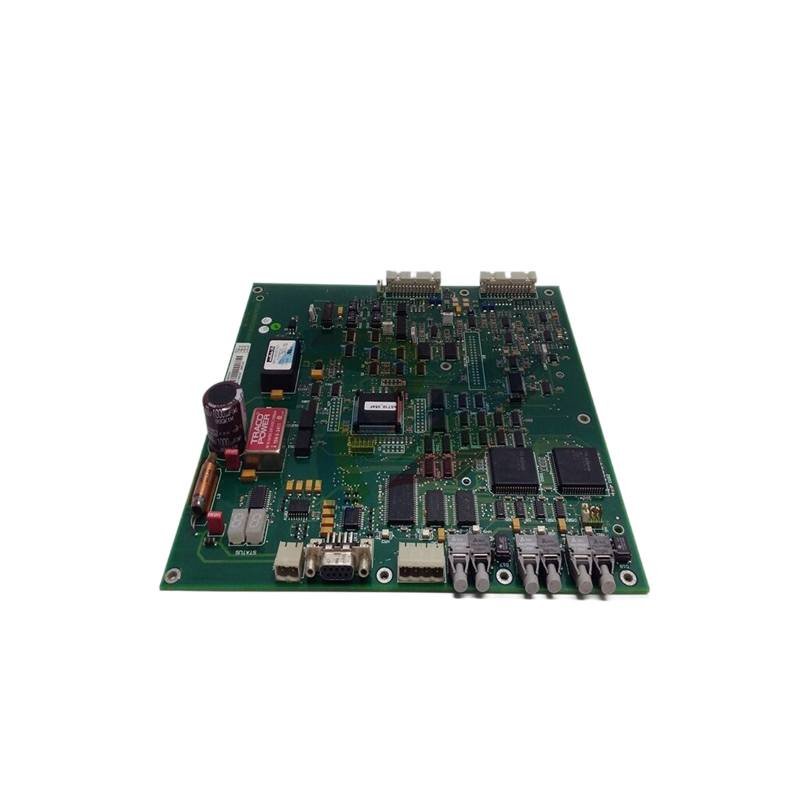

  • ABB 3ASC25H203 Module
