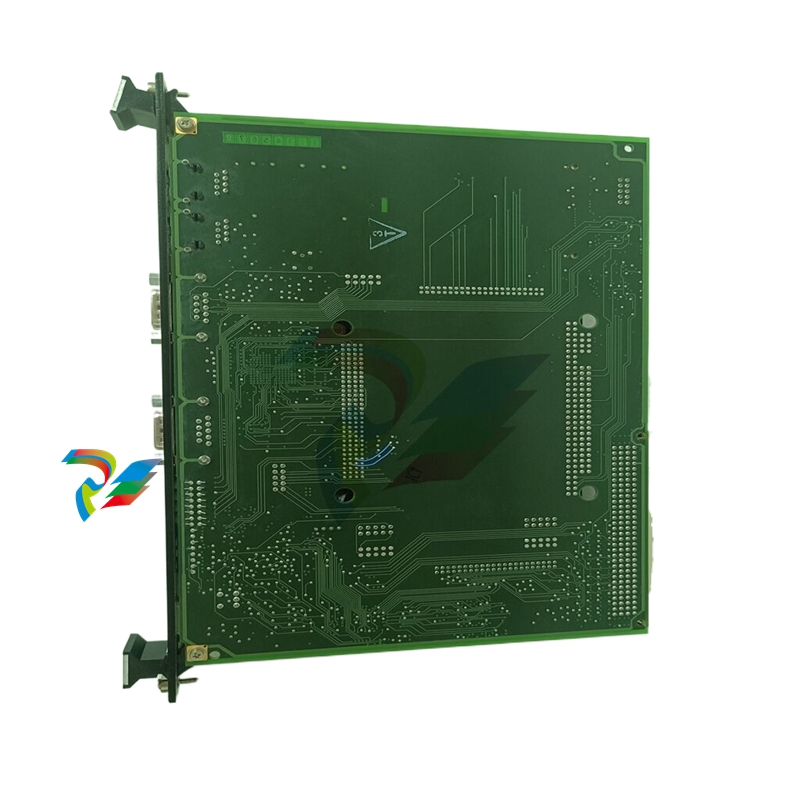

GE V7768 single board computers
GE V7768 single board computers
Overview
GE’s V7768/V7769* are single board computers (SBCs) in a dual-slot, passively cooled, VME Eurocard form factor.
The V7768* is a full featured Intel® CoreTM 2 Duo or Celeron® M-based SBC, and the V7769* is a full featured Intel Core 2 Duo-based SBC. The V7768/V7769 utilize the advanced technology of Intel’s 945GM chipset and the ICH7-M I/O Controller Hub. The 945GM chipset runs on a 533 MHz front-side bus with the Celeron M processor and a 667 MHz front-side bus with the Core 2 Duo processor.
The V7768/V7769 are compliant with the VMEbus Specification VITA 1-1994 and feature a transparent PCI-to-VME bridge, allowing your board to function as a system controller or peripheral CPU in multi-CPU systems.
The V7768 is a single-slot board, and the V7769 is a dual-slot board. The V7769 has the same functionality as the V7768 and also connects to the ACC-0623* (which will be referred to as the mezzanine board throughout this manual), making it a dual-slot board. Because the functionality is so similar, this manual will refer to both boards (V7768/V7769) throughout unless the material is referring to the V7768 or V7769 only.
Desktop Features of the V7768/V7769
• Up to 2.0 GByte DDR2 SDRAM (One SODIMM)
• SVGA port (front I/O)
• Dual Gigabit Ethernet (GbE) (front I/O)
• One RS232/422 COM port (front I/O)
• One RS232/422 COM support (rear I/O)
• Two USB 2.0 ports (front I/O)
• Four USB 2.0 support (rear I/O)
• Supports two SATA connections (rear I/O)
• One 2.5-in. SATA hard drive (optional for V7769 only)
• Dual SAS connector (front I/O on V7769 only)
• Real-Time clock/calendar
• Front panel reset switch
• PS/2 Keyboard/Mouse connection (front I/O)
• Onboard parallel connector
Embedded Features of the V7768/V7769
• Remote booting out the front panel only
• Up to 8 GByte of bootable CompactFlash (optional)
• PCI-X capable PMC site with VITA 35 P2 I/O (factory populated on V7768 and main board of V7769)
• VITA 1-1994 with byte swap
• 32 KByte NVRAM
• Software-selectable Watchdog Timer with reset
• PMC expansion site Chapter 3: Embedded PC/RTOS Features
Intel 945GM Chipset
The V7768/V7769 incorporate the latest Intel chipset technology, the 945GM. The Intel 945GM chipset is an optimized integrated graphics solution with up to a 667 MHz system bus. The chipset has a low power design, advanced power management, supporting up to 2 GByte of DDR2 system memory. The 945GM is a Memory Controller Hub (MCH) component, providing the processor interface, system memory interface (DDR2 SDRAM) and SVGA port.
Key features for the 945GM:
• 533 MHz Processor system bus controller for the Celeron M
• 667 MHz Processor system bus controller for the Intel Core 2 Duo
• Up to 2 GByte DDR2 Memory via SODIMM
• High-speed DMI architecture interface for communication with the ICH7-M (I/O controller)
