GE IC210EAR008 Discrete Expansion Units
Programmable Controllers
The Durus Controllers support a maximum of 7 I/O expansion modules and 1 communications
module. The expansion supports a maximum of 3 discrete modules, 1 analog input module,
1 temperature input module (RTD), and 2 analog output expansion units.
Discrete Expansion Units

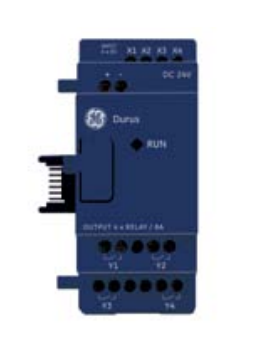

IC210EAR008 IC210EAR208 IC210EDR008 IC210EDD008
Product Name
8 point discrete expansion
(4) AC Inputs, (4) Isolated
Relay Out (8 Amps), AC input
power
8 point discrete expansion
(4) 24 VAC Inputs, (4) Isolated
Relay Out (8 Amps), AC input
power
8 point discrete expansion
(4) 24 VDC Inputs, (4) Isolated
Relay Output (8 Amps), 24 VDC
input power
8 point discrete expansion
(4) 24 VDC Inputs, (4) 24 VDC
Out (Transistor 0.5 Amp), 24
VDC input power
Lifecycle Status Active Active Active Active
Number of Discrete Inputs/Outputs 4 In/ 4 Out 4 In/ 4 Out 4 In/ 4 Out 4 In/ 4 Out
Input Power Voltage 85 to 240 VAC; 85 to 240 VDC 24 VAC 24 VDC 24 VDC
Power Supply Power Consumption 90 mAmps 90 mAmps 90 mAmps 90 mAmps
Input Device Voltage 85 to 240 VAC; 85 to 240 VDC 24 VAC 24 VDC 24 VDC
Dimensions (W x H x D) mm 38 mm x 90 mm x 58 mm 38 mm x 90 mm x 58 mm 38 mm x 90 mm x 58 mm 38 mm x 90 mm x 58 mm

Durus Programmable Controllers
The Durus Controllers support a maximum of 7 I/O expansion modules and 1 communica tions module.
The total expansion supports 3 discrete modules, 1 analog input module, 1
temperature input module (RTD), and 2 analog output expansion units.
Analog Expansion Unit
IC210EAI004 IC210EPT004 IC210EAO002
Product Name
4 point analog expansion
(4) analog inputs
(voltage and current, 12 bit),
12/24 VDC input power
Only one analog expansion
supported on the Durus Controller
4 channel PT 100, 12bit,
PT100 (-100°~600°).
Maximum of temperature
modules supported on
the Durus Controller.
2 channel analog out expansion
(0 – 10VDC or 0 – 20mA).
Maximum of 2 analog
output modules supported on
the Durus Controller.
Lifecycle Status Active Active Active
Number of Channels 4 4
Input Type
Output Type
Analog Input Range 0 to 10 VDC; 0 to 20 mA
Analog Output Range 0 to 10VDC
0 to 20mA
Resolution
12 bits 0.1C 10mV for Voltage
40 micro Amps for Current
Analog Output Register Range 10mV for Voltage
40 micro Amps for Current
Temperature Range -100 to 600C
Dimensions (W x H x D) mm 38 mm x 90 mm x 58 mm 38mm x 90mm x 58mm 38mm x 90mm x 58mm
