VersaMax provides several types of snap-together I/O carriers and interposing terminals
to provide maximum wiring flexibility, as well as module hot insertion and removal.
VersaMax carriers support IEC box-style, spring-style, and barrier-style terminals and are
also available as snap-on auxiliary terminal strips and interposing terminals that can be
mounted separately and connected to a connector-style carrier by an I/O cable.
GE IC200CHS022 Carriers
Industrial I/O
Carriers
VersaMax provides several types of snap-together I/O carriers and interposing terminals
to provide maximum wiring flexibility, as well as module hot insertion and removal.
VersaMax carriers support IEC box-style, spring-style, and barrier-style terminals and are
also available as snap-on auxiliary terminal strips and interposing terminals that can be
mounted separately and connected to a connector-style carrier by an I/O cable.

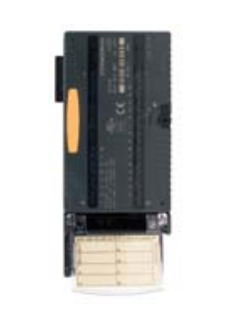

IC200CHS022 IC200CHS025
Product Name VersaMax Compact I/O Carrier,
Local Box Clamp Connection Style
VersaMax Compact I/O Carrier,
Local Spring Clamp Connection Style
Lifecycle Status Active Active
Field Termination Type Integrated Integrated
Wiring Termination Style Local Box Local Spring
Orientation on Module on Base Vertical Vertical
Dimensions (W x H x D) 66.8 mm (2.63 in) x 163.5 mm (6.45 in) x 70 mm (2.75 in),
not including the height of DIN Rail
66.8 mm (2.63 in) x 163.5 mm (6.45 in) x 70 mm (2.75 in),
not including the height of DIN Rail
Cables N/A N/A

VersaMax I/O Industrial I/O
Carriers
VersaMax provides several types of snap-together I/O carriers and interposing terminals to
provide maximum wiring flexibility, as well as module hot insertion and removal. VersaMax
carriers support IEC box-style, spring-style, and barrier-style terminals and are also avail able as snap-on auxiliary
terminal strips and interposing terminals that can be mounted
separately and connected to a connector-style carrier by an I/O cable.
IC200CHS001 IC200CHS002 IC200CHS005
Product Name
VersaMax I/O Carrier,
Local Barrier Style
VersaMax I/O Carrier,
Local Box Style
VersaMax I/O Carrier,
Local Spring Clamp
Connection Style
Lifecycle Status Active Active Active
Field Termination Type Integrated Integrated Integrated
Wiring Termination Style Barrier Box Spring
Orientation on
Module on Base Horizontal Horizontal Horizontal
Dimensions (W x H x D)
110.5 mm (4.35 in) x
139.7 mm (5.5 in) x
70 mm (2.75 in),
not including the
height of DIN Rail
110.5 mm (4.35 in) x
139.7 mm (5.5 in) x
70 mm (2.75 in),
not including the
height of DIN Rail
110.5 mm (4.35 in) x
139.7 mm (5.5 in) x
70 mm (2.75 in),
not including the
height of DIN Rail
Cables N/A N/A N/A
