ABB FPBA-01 PROFIBUS DP adapter module
❤ Add to collection

ABB FPBA-01 PROFIBUS DP adapter module

+86-15305925923
Mr.Wang
wang@kongjiangauto.com

1. Pull out the lock.

2. Install the module carefully to an option

module slot of the drive. See the drive

hardware manual.

3. Push in the lock.

4. Tighten the screw to torque 0.8 N·m using

a Torx TX10 screwdriver.

￥15000.00
￥15000.00
Weight：2.200KG
Quantity：
(Inventory: 20)
Consultation
Accessories
  • MOOG-G122-829A00
    Original ：￥28283.00
    With a price ：￥28283    		 Quantity
  • Motorola-MVME550
    Original ：￥37774.00
    With a price ：￥37774    		 Quantity
    •
    Original ：￥
    0.00

      With the total price ：￥
    0.00
Product parameters
  • Telephone:+86-15305925923
  • contacts:Mr.Wang
  • Email:wang@kongjiangauto.com
Description

1. Pull out the lock.

2. Install the module carefully to an option

module slot of the drive. See the drive

hardware manual.

3. Push in the lock.

4. Tighten the screw to torque 0.8 N·m using

a Torx TX10 screwdriver.



ABB FPBA-01 PROFIBUS DP adapter module

Safety instructions
WARNING! Obey the safety instructions. If you ignore them, injury or death, or damage to the
equipment can occur. See the user’s manual.
Mechanical installation
Electrical installation

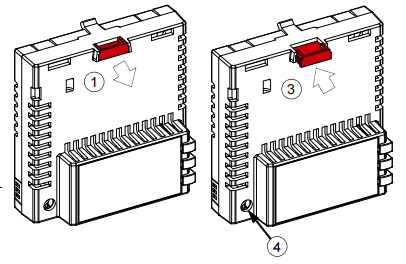

 Layout of the module
1. Pull out the lock.
2. Install the module carefully to an option
module slot of the drive. See the drive
hardware manual.
3. Push in the lock.
4. Tighten the screw to torque 0.8 N·m using
a Torx TX10 screwdriver.
WARNING! Do not use excessive force,
or leave the screw too loose. Over tightening can damage the screw or
module. A loose screw decreases the EMC
performance, and can even cause an operation
failure.
No. Description
1 Lock
2 Mounting and grounding screw
3 Bus connector [X1]
4 Diagnostic LEDs


Connection procedure
It is recommended to use a PROFIBUSapproved D-SUB 9 connector. These
connectors have a built-in termination network
and inductors for station capacitance
compensation.
Connect the cable to the D-SUB connector as
shown in this figure.
Start-up
When the module is connected to the drive, the drive control program sets the applicable parameters.
See the appropriate drive manual.
 Basic parameter settings
To take the settings into use, validate and refresh the parameters with parameter 51.27 FBA par refresh.
Further information
Index Name Value
20.01 Ext1 commands Fieldbus A
22.11 Speed ref1 source FBA A ref 1
28.11 Frequency ref1 source FBA A ref 1
50.01 FBA A enable Enable (or select the option slot in which the module is installed)
50.02 FBA A comm loss func Fault
51.02 Node address Set the node address of the module according to the network configuration.
51.05 Profile The ABB Drives communication profile is the default value.
52.01 FBA A data in1 SW 16bit
52.02 FBA A data in2 Act 16bit
53.01 FBA A data out1 CW 16bit
53.02 FBA A data out2 Ref1 16bit
