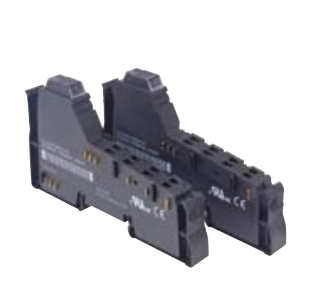

GE IC220PWR001 Power Terminals
Industrial I/OPower Terminal modules supply power to the main circuit (UM). In addition, this module
can be used to supply power for a segment circuit (Us).
Power Terminals
IC220PWR001 IC220PWR002 IC220PWR003 IC220PWR101 IC220PWR201
Product Name
Power Terminal
24 VDC
Power Terminal
Fused
24 VDC
Power Terminal
Fused with Diagnostics
24 VDC
Power Terminal
120 VAC
Power Terminal
230 VAC
Lifecycle Status Active Active Active Active
Input Voltage 24 VDC 24 VDC 24 VDC 120 VAC 230 VAC
Input Voltage Range 19.2 - 30 VDC 19.2 - 30 VDC 19.2 - 30 VDC 108 -135 VAC 12 -253 VAC
Maximum Current 8 Amps 8 Amps 6.3 Amps 8 Amps 8 Amps
Overload/Short Circuit in
Segment Circuit No Fuse Fuse No No
Surge Voltage/Over Voltage Yes, suppressor diode
for voltage limitation
Yes, suppressor diode
for voltage limitation
Yes, suppressor diode
for voltage limitation
Yes, VAR 275 VAC Yes, VAR 275 VAC
Polarity Reversal
Yes, diode connected in
parallel as protection
against polarity reversal
Yes, diode connected in
parallel as protection
against polarity reversal
Yes, diode connected in
parallel as protection
against polarity reversal
N/A N/A
Current Consumption from
Local Bus UL (mA) N/A N/A 25 mA, maximum N/A N/A
LED Indicators 24 VDC Voltage
Present
24 VDC Voltage
Present and Blown Fuse
Bus Diagnostics and
Blown Fuse
120 VAC supply
Present
230 VAC supply
Present
Required Terminal Strip (1) IC220TBK087
(Contains 10 strips)
(1) IC220TBK087
(Contains 10 strips)
(1) IC220TBK087
(Contains 10 strips)
(1) IC220TBK204 (1) IC220TBK204

VersaPoint and VersaSafe I/O Industrial I/O
Segment Terminals
Segment Terminals are used to create a partial circuit (segment circuit) within a main
24 VDC circuit.
IC220PWR011 IC220PWR012 IC220PWR013 IC220PWR014
Product Name
Segment Terminal
24 VDC
Segment Terminal
Fused
24 VDC
Segment Terminal
Fused with Diagnostics
24 VDC
Segment Terminal
Electronic Fused
24 VDC
Lifecycle Status Active Active Active Active
Input Voltage 24 VDC 24 VDC 24 VDC 24 VDC
Input Voltage Range 19.2 - 30 VDC 19.2 - 30 VDC 19.2 - 30 VDC 19.2 - 30 VDC
Maximum Current 8 Amps 8 Amps 6.3 Amps 8 Amps
Overload/Short Circuit in
Main Circuit No 6.3 Amp slow blow fuse 6.3 Amp slow blow fuse Electronic Fuse
Surge Voltage/Over Voltage Protective circuits of
the power terminal
Protective circuits of
the power terminal
Protective circuits of
the power terminal
Protective circuits of
the power terminal
Polarity Reversal Protective circuits of
the power terminal
Protective circuits of
the power terminal
Protective circuits of
the power terminal
Protective circuits of
the power terminal
Current Consumption from
Local Bus UL (mA) N/A N/A 25 mA, maximum 30 mA, maximum
LED Indicators 24 VDC Voltage
Present
24 VDC Voltage
Present and Blown Fuse
Bus Diagnostics and
Blown Fuse
Bus Diagnostics and
Blown Fuse
Required Terminal Strip (1) IC220TBK087
(Contains 10 strips)
(1) IC220TBK087
(Contains 10 strips)
(1) IC220TBK087
(Contains 10 strips)
(1) IC220TBK087
(Contains 10 strips)
