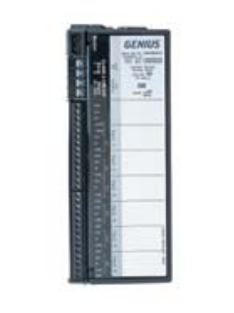

GE IC660BPM100 PowerTRAC Monitoring Module
❤ Add to collection

GE IC660BPM100 PowerTRAC Monitoring Module

+86-15305925923
Mr.Wang
wang@kongjiangauto.com

The Genius PowerTRAC block is used in many types of power monitoring and industrial applications. The PowerTRAC block

monitors current and voltage inputs and stores digitized waveform values for each input. From these values, the block

calculates RMS voltage, current, active power, reactive power, KWH, and power factor. The block automatically sends this

calculated data to a host PLC or computer approximately twice per second. The same data can be displayed on a Genius

Hand–held Monitor, either locally or from any connection point on the bus.

A PowerTRAC block can be used with a wye– or delta–configured three–phase power system or with a single–phase power

system. It accepts voltage inputs from one to three potential transformers, and current inputs from up to three line current

transformers, plus a neutral current transformer.

￥5000.00
￥5000.00
Weight：3.550KG
Quantity：
(Inventory: 50)
Consultation
Accessories
  • ABB-07KR51-Centr
    Original ：￥11222.00
    With a price ：￥11222    		 Quantity
  • ABB-3BSE020269R0
    Original ：￥16364.00
    With a price ：￥16364    		 Quantity
    •
    Original ：￥
    0.00

      With the total price ：￥
    0.00
Product parameters
  • Telephone:+86-15305925923
  • contacts:Mr.Wang
  • Email:wang@kongjiangauto.com
Description

The Genius PowerTRAC block is used in many types of power monitoring and industrial applications. The PowerTRAC block

monitors current and voltage inputs and stores digitized waveform values for each input. From these values, the block

calculates RMS voltage, current, active power, reactive power, KWH, and power factor. The block automatically sends this

calculated data to a host PLC or computer approximately twice per second. The same data can be displayed on a Genius

Hand–held Monitor, either locally or from any connection point on the bus.

A PowerTRAC block can be used with a wye– or delta–configured three–phase power system or with a single–phase power

system. It accepts voltage inputs from one to three potential transformers, and current inputs from up to three line current

transformers, plus a neutral current transformer.



GE IC660BPM100 PowerTRAC Monitoring Module

Industrial I/O
The Genius PowerTRAC block is used in many types of power monitoring and industrial applications. The PowerTRAC block
monitors current and voltage inputs and stores digitized waveform values for each input. From these values, the block
calculates RMS voltage, current, active power, reactive power, KWH, and power factor. The block automatically sends this
calculated data to a host PLC or computer approximately twice per second. The same data can be displayed on a Genius
Hand–held Monitor, either locally or from any connection point on the bus.
A PowerTRAC block can be used with a wye– or delta–configured three–phase power system or with a single–phase power
system. It accepts voltage inputs from one to three potential transformers, and current inputs from up to three line current
transformers, plus a neutral current transformer.
PowerTRAC Monitoring Module
IC660BPM100
Product Name
Genius I/O PowerTrac Monitoring Block, Accurately measures RMS voltage,
current, power, VARs, power factor, watt–hours, and line frequency,
even with distorted waveforms.115 VAC/125 VDC Powered
Lifecycle Status Mature
Network Support Genius Bus
Input Range 0 to 120 VAC RMS at 47 to 63 Hz
Number of Points (1) Three Phase
Calculated Data
Voltage phase A to B
Voltage phase B to C
Voltage phase C to A
Voltage phase A to N (for line–to–neutral potential transformers only)
Voltage phase B to N (for line–to–neutral potential transformers only)
Voltage phase C to N (for line–to–neutral potential transformers only)
Current phase A
Current phase B
Current phase C
Auxiliary CT current
Active power phase A
Active power phase B
Active power phase C
Reactive power phase A
Reactive power phase B
Reactive power phase C
Total power factor Total watt–hours/KWH/MWH
Fundamental VARS phase A
Fundamental VARS phase B
Fundamental VARs phase C
Fundamental Power Factor
Harmonic VARS as % of Volt–Amps phase A
Harmonic VARs as % of Volt–Amps phase B
Harmonic VARs as % of Volt–Amps phase C
Total Harmonic VARs as % of Volt–Amps
Line Frequency
Temperature Alarm
Extended Watt-hours (high)
Extended Watt-hours (low)
Accuracy 0.25% reading +0.25% full scale
Operating Voltage 115 VAC/230 VAC (90–265 VAC), 47–63Hz
or 125 VDC (100–150 VDC), 35 VA max.

Dimensions (W x H x D) 11.00” (27.94cm) x 5.21” (13.23cm) x 8.06” (20.47)

Accessories and Cables

IC660BSM021 Genius Bus Switching Module, 24/48 VDC Mature
IC660BSM120 Genius Bus Switching Module, 115 VAC/125 VDC Mature
IC660BLC001 Genius bus Cable w/Connectors Alpha 9823 15 In (Qty 3) Active
IC660BLC003 Genius bus Cable w/Connectors Alpha 9823 3 Ft Active
IC660BLM506 Bus Terminator 150 Ohm (Qty 4) Active
IC660BLM508 Bus Terminator 75 Ohm (Qty 4) Active
IC660BLM507 Genius Block Puller Active
Hand Held Monitor
IC660HHM501 Hand-Held Monitor can be used to configure and trouble shoot Genius blocks. Kit
includes Cable and Battery Charger Mature
IC660BCM501 Hand-Held Monitor Battery Charger Active
IC660BPM500 Hand-Held Monitor Battery Pack Mature
