GE VMIVME-5620 Intelligent HSD Emulator
❤ Add to collection

GE VMIVME-5620 Intelligent HSD Emulator

+86-15305925923
Mr.Wang
wang@kongjiangauto.com

GE VMIVME-5620 Intelligent HSD Emulator

¥28756.00
¥27740.00
Weight:4.000KG
Quantity:
(Inventory: 31)
Consultation
Product parameters
  • Telephone:+86-15305925923
  • contacts:Mr.Wang
  • Email:wang@kongjiangauto.com
Description

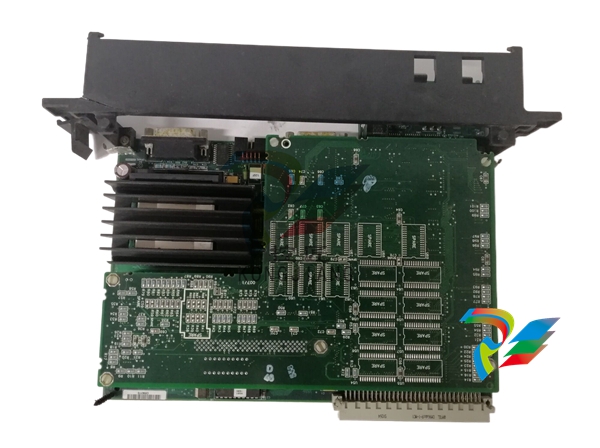

GE VMIVME-5620 Intelligent HSD Emulator


GE VMIVME-5620 Intelligent HSD Emulator

DESCRIPTION

The VMIVME-5620 is an Encore  HSD-compatible HSD emulator implemented on a double  Eurocard. Two flat 50-conductor cables with socket  connectors at both ends connect the VMIVME-5620 to the  Encore HSD/IBL Interface or other HSD-compatible device.The VMIVME-5620 uses an integrated VMEbus  interface (Cypress VIC068), and an on-board local bus with  processor and memory that interprets lists (IOCL) of  host-based I/O Control Blocks (IOCBs). The VMEbus  interface provides variable width host global memory access,  and interrupts to the host interrupt handler. Figure 1 is a block  diagram of the VMIVME-5620.

FEATURES

• High-performance HSD interface designed to minimize host software  overhead

• Executes commands from lists in memory

• IBL compatibility high or low priority

• HSD external mode support

• Data buffering (FIFOs)

• Data chaining and command chaining

• 68020 microprocessor

• Block transfers

• 32-bit DMA transfers over HSD bus

• 4 Mbyte/s transfer rate (VMIVME-5620 to VMIVME-5620)

• Programmable VMEbus address modifiers (as master)

• Programmable interrupt vectors and level

• HSD compatibility as HSD master or HSD slave

• VMEbus compatible (ANSI/IEEE STD 1014 - 1987 IEC 821 and 297)

• MA32: MBLT32 as VME master

• SAD024: SD32 as VMEbus slave

• VMEbus-to-VMEbus link using two boards

• 250-foot maximum cable length

• Front panel fail LED

• Jumper-selectable slave address

• Bus release: ROR, RWD, FAIR, RCLR

• Jumper-enabled system controller

HSD MASTER MODE

The VMIVME-5620 can  operate in the HSD master mode, which is the mode used to  drive HSD peripherals. It fully implements this mode,  sending External Function Commands to the HSD peripheral  device, receiving device status, and transferring data blocks  to or from the device, all by interpreting an IOCL in VMEbus  global memory. Further, it supports External Mode, in which  the HSD peripheral device controls addressing and data  transfers to or from VMEbus global memory.

INTERbus LINK (IBL) MODE

The  VMIVME-5620 can operate in the INTERbus Link (IBL)  mode. This mode permits two HSD-compatible controllers,  one of which may be an Encore HSD controller, to form a  high-speed link. The IBL mode reroutes some signals on the  HSD interface so that a crossed cable is not necessary.

DATA FIFOs

Data FIFOs are provided so that data  transfers on the VMEbus may take place asynchronously with  the data transfers on the cable. The data FIFOs are 512  transfers deep (2,048 bytes).

PROGRAMMING CONSIDERATIONS

The  VMIVME-5620 operates as both VMEbus master and slave.  As a slave, the board receives setup parameters from the host  CPU. These setup parameters are written into Control  Registers and provide information such as: interrupt vectors, interrupt levels, and an address that points to a location in  global memory which contains the Input Output Control  Blocks (IOCBs).

TRANSFER SPECIFICATIONS

Maximum Block Size: 256 Kbyte (16-bit transfer  counter)

Transfer Width: 32, 16, or 8 bits per HSD cycle

Transfer Mode: Bidirectional half-duplex

Address Counters: 32-bit

Command/Control: From list in memory, D32 or D16  or D8 (EO) DMA

I/O Cables: Two 50-conductor (twisted pair flat-ribbon)  (Cables not included)

Maximum Cable Length: 250 ft

PHYSICAL/ENVIRONMENTAL

Temperature: 0 to 55 °C, operating -20 to 85 °C, storage

Humidity: 20 to 80 percent relative, noncondensing

Altitude: Operation to 10,000 ft

Dimensions: Double height Eurocard (6U) (160 mm x 233.35 mm)
