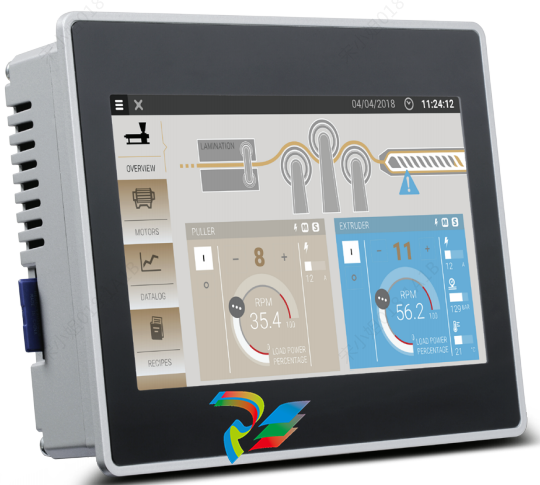

UniOP eTOP33B HMI device

UniOP eTOP33B HMI device

DESCRIPTION

The eTOP33B is a state-of-the-art HMI device with touchscreen interface and 10.4” TFT color  graphic display. Support for 64K colors in the brilliant TFT display will increase the realism of the  images. The VGA resolution makes it the ideal choice for high-end HMI applications.

SPECIFICATION

• 10.4” TFT color display

• VGA (640x480 pixel) resolution

• 64K colors

• Resistive touchscreen

• Connection to industrial bus systems and  Ethernet (requires optional plug-in modules)

• Compatible with video input module

• 32 MB internal user memory

Highlights

The eTOP HMI panels are part of the UniOP family of touchscreen products. All of the eTOP  products support the rich common functionalities of the UniOP operator panels:

• Powerful and intuitive programming with  the UniOP Designer 6 software

• Support of more than 130 communication  drivers for industrial devices

• Optional modules for fieldbus systems  (Profibus DP, CANopen, DeviceNet,  Interbus) and Ethernet. Ethernet modules  allow connection to field devices as well  as programming the HMI from Designer.

• Dual-driver communication capability

• Vector graphic capabilities including the  support of multiple layers and object  transparency.

• Video input option.

• Display dynamic data in numerical, text,  bargraph and graphic image formats

• Data acquisition and trend presentation.  Trend data can be transferred to an host  computer using the Ethernet connection.

• Analog gauge objects

• Recipe data storage. Recipe data can be  transferred to an host computer using the Ethernet connection.

• Multilanguage applications. The number  of runtime languages is limited only by the  available memory. All text information in  the application can be exported in Unicode  format for easier translation.

• Powerful macro editor to configure  touchscreen operation

• Alarms and historical alarm list. Alarm and event information can be printed or  transferred to an host computer using the Ethernet connection.

• Eight level password protection.

• Report printing to serial printer. Reports  are freely configurable using Designer.

• Ethernet-based UniNet network to share  data between UniOP HMIs and to serve  data using UniNet OPC Server.

Environmental  Conditions

Operating temperature： 0 to 45 °C

Storage temperature： -20 to +70 °C

Operating and storage：5 – 85 % RH non-condensing

Protection class：IP65 (front panel)

Dimensions

Faceplate LxH：287x232 mm (11.30x9.14“)
