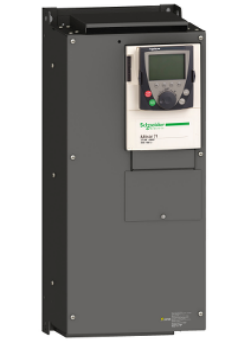

schneider-ATV71 frequency converter ATV71HD75N4
❤ Add to collection

schneider-ATV71 frequency converter ATV71HD75N4

+86-15305925923
Mr.Wang
wang@kongjiangauto.com

ATV71HD75N4

ATV71 75kW 3P 380VAC, 75KW, Ordinary coating, Chinese surface

Board, EMC, reactor

19292.00
¥17373.00
Weight:3.500KG
Quantity:
(Inventory: 999)
Consultation
Product parameters
  • Telephone:+86-15305925923
  • contacts:Mr.Wang
  • Email:wang@kongjiangauto.com
Description

ATV71HD75N4

ATV71 75kW 3P 380VAC, 75KW, Ordinary coating, Chinese surface

Board, EMC, reactor


schneider-ATV71 frequency converter ATV71HD75N4

Main information

Product series Altivar 71

Product type: Frequency converter

High power machinery with complex application fields

Component Name ATV71

Electric motor power (kW) 75 kW, 3-phase on... 380... 480 V

Motor power 100 hp, 3-phase on... 380... 480 V

Maximum motor cable length 100 m shielded cable

200m unshielded cable

Power supply voltage 380...480 V - 15...10 %

Number of phases in the power grid: 3 phases

Line current 137 A suitable for 480 V 3-phase 75 kW/100 hp

167 A is suitable for 380 V 3-phase 75 kW/100 hp

Integrated EMC Filter

Assembly method with heat sink

Apparent power 109.9 kVA on... 380 V 3-phase 75 kW/100 hp

Expected line Isc 22 kA suitable for 3-phase

Rated output current 124 A at... 2.5 kHz 460 V 3-phase 75 kW/100 hp

160 A on... 2.5 kHz 380 V 3-phase 75 kW/100 hp

Maximum transient current of 240 A, suitable for 60 seconds, 3-phase, 75 kW/100 hp

264 A is suitable for 2 seconds, 3 phases, 75 kW/100 hp

Output frequency 0.1... 500 Hz

Rated switching frequency 2.5 kHz

Switching frequency 1... 16 kHz adjustable

2.5... 16 kHz available

Unbalanced machine of asynchronous motor control configuration file ENA system (energy adaptation system)

Voltage/frequency ratio (2 or 5 points)

Flux Vector Control with Sensors (FVC) (Current Vector)

Sensorless flux vector control (SFVC) (voltage or current vector)

Polarization without impedance is applicable for modeling any data center

Product Function: Asynchronous Motor

Synchronous motor

Power supply voltage limits 323…528 V

Power supply frequency 50...60 Hz - 5...5 %

Power supply frequency limits 47.5...63 Hz

Speed range 1... 100. Suitable for asynchronous motors in open-loop mode with no speed feedback

1... 1000 is suitable for asynchronous motors in closed-loop mode with encoder feedback

1... 50 is suitable for synchronous motors in open-loop mode without speed feedback

Speed accuracy+/-0.01% nominal speed in closed-loop mode with encoder feedback 0.2 Tn to Tn

+/-10% nominal slip distance without speed feedback 0.2 Tn to Tn

Torque accuracy+/-15% in open-loop mode without speed feedback

+/-5% in closed-loop mode with encoder feedback

Instantaneous over torque 170%+/-10% of nominal motor torque for 60 seconds every 10 minutes

+/-10% of 220% nominal motor torque for 2 seconds

Braking torque<=150% with braking or lifting resistor

30% without braking resistor

Synchronous motor control configuration mode vector control without speed feedback

Control loop PI monitoring

Motor slip compensation can suppress

Automatically regardless of load conditions

Adjustable

Cannot use voltage/frequency ratio (2 or 5 points)

Diagnostic 1 LED (red) device voltage:

Output voltage<=power supply voltage

Circuit between isolated power supply and control

Type of cable for mounting in an

enclosure

Comes with a NEMA Class 1 kit: 3-wire UL 508 cable on... 40 ° C, copper 75 ° C/PVC

Comes with an IP21 or IP31 kit: 3-wire IEC cable at 40 ° C, copper at 70 ° C/PVC

Without installation kit: 1-wire IEC cable on... 45 ° C, copper 70 ° C/PVC

Without installation kit: 1-wire IEC cable on... 45 ° C, copper 90 ° C/XLPE/EPR

Electrical connection terminal, clamping force: 2.5 mm ², AWG 14 (AI1-/AI1+, AI2. AO1. R1A, R1B, R1C, R2A, R2B, LI1...LI6. PWR)

Terminal, clamping force: 150 mm ² (L1/R, L2/S, L3/T, U/T1. V/T2. W/T3. PC/-, PO, PA/+, PA, PB)

Tightening torque 0.6 N.m (AI1-/AI1+, AI2. AO1. R1A, R1B, R1C, R2A, R2B, LI1...LI6. PWR)

41 N.m, 360 lb. Internal (L1/R, L2/S, L3/T, U/T1. V/T2. W/T3. PC/-, PO, PA/+, PA, PB)

Internal power supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC+/-5%,<10 mA, protection type: overload and short circuit protection

Internal power supply: 24 V DC (21... 27 V),<200 mA, protection type: overload and short circuit protection

Analog input quantity 2

Analog input type AI1-/A1+bipolar differential voltage:+/-10 V DC 24 V maximum, resolution 11 bits+sign bit

AI2 software - configurable current: 0... 20 mA, impedance: 242 Ω, resolution 11 bits

AI2 software - configurable voltage: 0... 10 V DC 24 V maximum, impedance: 30000 Ω, resolution 11 bits

Input sampling time 2 ms+/-0.5 ms (AI1-/Al1+) - Analog input

2 ms+/-0.5 ms (Al2) - Analog input

2 ms+/-0.5 ms (LI1... LI5) - Discrete Input

2 ms+/-0.5 ms (LI6) if configured as logical input - discrete input

Response time<=100 ms within STO (safe torque off)

AO1 2 ms,  Tolerance+/-0.5 ms suitable for analog output

R1A, R1B, R1C 7 ms,  Tolerance+/-0.5 ms suitable for discrete output

R2A, R2B 7 ms,  Tolerance+/-0.5 ms suitable for discrete output

Absolute accuracy precision+/-0.6% (AI1-/Al1+) for temperature fluctuations of 60 ° C

+/-0.6% (AI2) for temperature variation of 60 ° C

+/-1% (AO1) for temperature fluctuations of 60 ° C

Maximum linearity error+/-0.15% (AI1-/Al1+, AI2)

+/- 0.2 % (AO1)

Analog output quantity 1

Analog output model AO1 software - configurable logic output 10 V 20 mA

AO1 software - configurable current 0... 20 mA, impedance: 500 Ω, resolution 10 bits

AO1 software - configurable voltage 0... 10 V DC, impedance: 470 Ω, resolution 10 bits

Discrete output quantity 2

Output type configurable relay logic: (R1A, R1B, R1C) NO/NC -100000 times

Configurable relay logic: (R2A, R2B) NO -100000 times

Minimum switch current [Imin] 3 mA on... 24 V DC suitable for configurable relay logic

The maximum switch current R1. R2: 2 A is 250 V AC inductive load on..., cos phi=0.4

R1. R2: 2 A on... 30 V DC inductive load, cos phi=0.4

R1. R2: 5 A on... 250 V AC resistive load, cos phi=1

R1. R2: 5 A on... 30 V DC resistive load, cos phi=1

Discrete input quantity 7

Digital input types LI1... LI5: Programmable 24V DC and Level 1 PLC, impedance: 3500 Ω

LI6: Switch - configurable 24 V DC and Level 1 PLC, impedance: 3500 Ω

LI6: The switch can be configured with PTC probes 0... 6. impedance: 1500 Ω

PWR: Safe input 24V DC, impedance: 1500 Ω, compliant with ISO 13849-1 Class D

Discrete input logic negative logic (leakage) (LI1... LI5),>16 V (state 0),<10 V (state 1)

Positive Logic (Source) (LI1... LI5),<5 V (State 0),>11 V (State 1)

Negative logic (leakage) (LI6) If configured as a logic input,>16 V (state 0),<10 V (state 1)

Positive Logic (Source) (LI6) If configured as a logical input,<5 V (State 0),>11 V (State 1)

Acceleration and deceleration tilt are independently linearly adjustable from 0.01 to 9000 seconds

S. U or custom

Slope adaptation beyond braking capacity, using resistors

Braking to stop using DC injection

Protection type to prevent exceeding speed limit: Drive

Prevent input phase loss: Drive

Braking on control circuit: Drive

Input phase failure: Drive

Line power overvoltage: Drive

Bus power supply undervoltage: drive

Overcurrent between output phase line and ground: driving

Overheating protection: Drive

DC bus overvoltage: driver

Short circuit between motor phase lines: Drive

Thermal protection: Drive

Motor phase failure: Motor

Dismantling power supply: motor

Thermal protection: motor

Insulation resistance>1 m Ω, grounded for 1 minute, 500 V DC

Frequency resolution analog input: 0.024/50 Hz

Display unit: 0.1 Hz

Communication Port Protocol CANopen

Modeling any data center

Port type 1 RJ45 (front panel) is suitable for modeling any data center

1 RJ45 (terminal) suitable for modeling any data center

RJ45 pin type SUB-D 9 is suitable for CANopen

Physical interface 2-wire RS485 suitable for modeling any data center

Transmission frame RTU is suitable for modeling any data center

Transmission rates of 4800 bps, 9600 bps, 19200 bps, and 38.4 Kbps are suitable for modeling any data center terminal

9600 bps, 19200 bps suitable for modeling any data center front panel

20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps for CANopen

Data format 8-bit, 1 stop, even check applicable to any data center modeling front panel

8-bit, parity or non configurable parity check applicable to any data center modeling terminal

Address numbers 1... 127 are suitable for CANopen

1... 247 is applicable for modeling any data center

Access method from (station) CANopen

Marking CE

Operating position vertical direction+/-10 °

Height 630 mm

Depth 290 mm

Width 320 mm

Product weight 44 kg

Functionality is full

Specific applications, other applications

Tab communication card compatible with CC Link

Programmable card inside the controller

Communication card compatible with DeviceNet

Communication card compatible with Ethernet/IP

Communication card compatible with Fipio

I/O expansion card


  • KUKA KR FORTEC-2 new generation heavy-duty ground six axis robot
  • KUKA Robots KR 1000 titan; KR 1000 L750 titan With F Variants Assembly Instructions
  • KUKA KR 600 FORTEC heavy-duty six axis ground mounted industrial robot
  • KUKA KR 500 MT FORTEC Heavy duty Six Axis Industrial Robot
  • KUKA KR 360 FORTEC Heavy duty Six Axis Industrial Robot
  • KUKA Sunrise Cabinet Med Medical Edition Robot Controller User Manual
  • KUKA Robots KR SCARA HO Assembly Instructions
  • KUKA Robots KR QUANTEC-2 PA Assembly Instructions
  • KUKA Robots KR QUANTEC-2 K and KR QUANTEC-2 P With K-F and P-C Variants Assembly Instructions
  • KUKA Robots KR QUANTEC-2 HO Assembly Instructions
  • KUKA Robots KR QUANTEC-2 HC Assembly Instructions
  • KUKA KR QUANTEC-2 series heavy-duty ground mounted six axis industrial robot
  • KUKA KR QUANTEC PA series heavy-duty palletizing robot
  • KUKA KR IONTEC-2 series six axis industrial robot
  • KUKA KR IONTEC ultra series six axis heavy-duty industrial robot
  • KUKA KR IONTEC HO Robot Assembly Manual
  • KUKA Robots KR CYBERTECH-3 HW Assembly Instructions
  • KUKA Robots KR CYBERTECH-3 Assembly Instructions
  • KUKA Robots KR CYBERTECH-2 arc Assembly Instructions
  • KUKA Robots KR CYBERTECH nano-2 Assembly Instructions
  • KUKA KR CYBERTECH CR HO (KR   20   R1810-HO) assembly instructions
  • KUKA Robots KR CYBERTECH With F variant Assembly Instructions
  • KUKA KR CYBERTECH CR (KR 20 R1810-CR) Clean Room (CR) Version 6-Axis Industrial Robot
  • KUKA KR AGILUS-3 ultra series small six axis serial robot
  • KUKA KR 300 R2700-2 C-F Cast Ceiling Mounted 6-Axis Heavy duty Industrial Robot
  • KUKA KR 20 R1820-2 E Six Axis Industrial Robot
  • Assembly instructions for KUKA KR AGILUS-3 small six axis robot
  • KUKA KR AGILUS-2 New Generation Small Six Axis Robot
  • KUKA KR 1000 1300 titan PA; KR 1000 L950 titan PA With F Variants Assembly Instructions
  • KUKA KR 700 PA/KR 700 PA Arctic Installation Guide
  • KUKA KR 18 R1450-3 PP six axis ground mounted industrial robot
  • KUKA 12 SCARA Series 4-axis SCARA Horizontal Joint Robot
  • KUKA KR 4 R600 Small Six Axis Industrial Robot
  • Installation Guide for KUKA KR 3 R540 Small 6-Axis Industrial Robot
  • KUKA LBR iiwa CR Clean 7-Axis Lightweight Collaborative Robot
  • KUKA KR AGILUS sixx series six axis industrial robot operation instructions
  • KUKA 4-axis heavy-duty SCARA horizontal multi joint robot KR 60 R1200 Z400 CS
  • KUKA KR 23 SCARA-2 CS SCARA Horizontal Multi Joint Robot
  • KUKA KR 20 SCARA CS Robot Assembly Instructions
  • KUKA KR 15 DELTA-2 Assembly Manual
  • KUKA KR 13 SCARA-2 CS Assembly Manual
  • KUKA KR 3 D1200 (Standard Delta Robot) Assembly Instructions
  • KUKA KR 3 D1200 HM Assembly Manual
  • KUKA LBR Med 7 R800, LBR Med 14 R820 Medical Edition Robot
  • KUKA Robots LBR iiwa 7 R800, LBR iiwa 14 R820 Operating instructions
  • KUKA LBR iiwa CR (Clean Room Version Robot) Operating Instructions
  • Lauer PCStopline series text operation panel
  • KUKA LBR iisy (MA_LBR_iisy V5) assembly manual
  • KUKA LBR iisy 3 R760 Assembly Manual
  • KUKA LBR iico Collaborative Robot Assembly Manual
  • Lauer LCAstarline (LCA300/LCA320/LCA325) Text Display Screen
  • Lauer PCS950/PCS950c/PCS950e operation console
  • Lauer EPC Series Industrial Embedded Human Computer Integrated PC User Guide
  • Bonfiglioli Precision Planetary Gearbox TIR-STD ENG R07
  • Bonfiglioli ACT/ACU Cold Plate Inverter Installation Instructions
  • Bonfiglioli EM-RES-02 Expansion Module
  • Bonfiglioli EM-RES-01 Expansion Module
  • Bonfiglioli EM-IO-04 Expansion Module
  • Bonfiglioli EM-IO-03 Expansion Module
  • Bonfiglioli EM-IO-02 Expansion Module
  • Bonfiglioli Vectron EM-IO-01 Expansion Module
  • Bonfiglioli F series gearbox
  • Installation, operation, maintenance, and spare parts of Bonfiglioli HF series reducers
  • Installation, Operation, and Maintenance of Bonfiglioli 300-300M Series ATEX Reducer
  • Bonfiglioli R3 series planetary gearbox
  • Bonfiglioli C series inline helical gear explosion-proof reducer
  • Bonfiglioli EM-ENC-05 Expansion Module
  • Bonfiglioli EM-ENC-04 Expansion Module
  • Bonfiglioli EM-ENC-03 Expansion Module
  • Bonfiglioli EM-ENC-02 Expansion Module
  • Bonfiglioli CM-CAN CANopen communication module
  • Bonfiglioli EM-SYS System Bus Expansion Module
  • Bonfiglioli CM-PDP Profibus DP Communication Module
  • Bonfiglioli CM-232/CM-485/CM-485T Modbus Communication Manual
  • Bonfiglioli BMS series precision planetary servo reduction motor
  • Bonfiglioli ACTION series ACT210 (230V), ACT410 (400V) frequency converter operation manual
  • Bonfiglioli ACT series frequency converter
  • Bonfiglioli HDP/HDO series gear unit IOM installation, operation and maintenance instructions
  • Installation, operation, and maintenance of Bonfiglioli 300-300M series reducers
  • Bonfiglioli 300M Modular planetary gearboxe
  • Bonfiglioli 3/H series heavy-duty modular gearbox
  • Bonfiglioli KRG-KCG-KSD hydraulic coupling
  • Bonfiglioli Vectron BTD-BCR servo motor
  • Bonfiglioli BTD-BCR synchronous servo motor
  • Bonfiglioli VF-W series ATEX explosion-proof worm gear reducer
  • Bonfiglioli EM-ENC-03 Expansion Module
  • Installation, operation, maintenance, and spare parts instructions for Bonfiglioli EVOX-CP series helical gear reducers (including ATEX explosion-proof models)
  • Installation, operation, and maintenance IOM instructions for Bonfiglioli C/A/F/S series gear reducers (including ATEX explosion-proof versions)
  • Bonfiglioli BX-BE-BN-MX-ME-BXN-MNN Motor Installation, Operation and Maintenance Manual
  • Bonfiglioli VF-W IE2-IE3 Worm Gear Reduction Motor: Complete Selection, Verification, and On site Implementation Technical Guide
  • Bonfiglioli VF-W series ATEX worm gear reducer
  • Bonfiglioli RAN series bevel gear angle reducer
  • Bonfiglioli Industry&Automation Business Unit Integrated Products
  • Bonfiglioli EVOX platform CP coaxial helical gear reduction motor
  • Bonfiglioli C-A-F-S Series IE2-IE3-IE4 three series reducers
  • Complete selection, calibration, and common selection of Bonfiglioli C-A-F industrial gear units
  • Bonfiglioli C series explosion-proof helical gear reducer
  • Bonfiglioli BN-BE-BX-BY series three-phase asynchronous motor
  • Bonfiglioli BMD series permanent magnet AC synchronous servo motor
  • Bonfiglioli A-series spiral bevel gear right angle servo reduction motor
  • Installation, Operation, and Maintenance Instructions for Bonfiglioli AS Series Reducer
  • Bonfiglioli Active series high-end frequency converter
  • Bonfiglioli EM-IO-04 Expansion Module
  • Bonfiglioli EM-ENC-02 Expansion Module
  • Bonfiglioli A-series spiral bevel gear reducer sample
  • Bonfiglioli Industrial Transmission Products
  • Bonfiglioli RAN series gearbox
  • Bonfiglioli Active 401/201 frequency converter
  • Alcatel Lucent OmniAccess Stellar AP1301 Indoor Wi Fi 6 (802.11ax) Wireless Access Point
  • Alcatel Lucent Enterprise (ALE) Mobile Handheld Terminal Electronics
  • Alcatel Lucent MDR-8000 Digital Microwave Radio
  • Alcatel 1660 SM Release 5 Optical Multi Service Node
  • Alcatel Lucent OmniSwitch 6850 Stackable LAN Switch
  • Alcatel Lucent 7750 Service Router (SR) series business router
  • Alcatel 1600 series SDH optical transmission equipment
  • Alcatel Lucent 9500 MPR Release 3 ANSI Microwave Packet Radio Equipment
  • Alcatel Lucent 7450 operator Ethernet service switch
  • Alcatel Advanced REFLEXES (OmniPCX 4400) telephone
  • Alcatel Lucent OmniSwitch 6850E Stacked Gigabit Switch
  • Alcatel Lucent OmniSwitch 6450 Stackable Gigabit Ethernet Switch Series
  • Lucent Stinger ATM DSL Access Concentrator
  • Alcatel Lucent 1660SM OMSN (Optical Multi Service Node) series next-generation SDH equipment
  • ALCATEL-LUCENT 9500 MICROWAVE PACKET RADIO
  • Atlas Copco MT Focus 6000 Tightening Controller
  • Atlas Copco Power MACS 4000 Fixed Nut Runner (Servo Tightening Shaft) Control System
  • Atlas Copco Neos compressor specific frequency converter
  • Atlas Copco Power Focus 8 (PF8) Series New Generation Tightening Controller Platform
  • Atlas Copco Power Focus 4000 Controller
