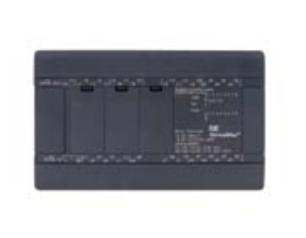

GE IC200UMM002 Micro Motion Expansion Unit
❤ Add to collection

GE IC200UMM002 Micro Motion Expansion Unit

+86-15305925923
Mr.Wang
wang@kongjiangauto.com

The Micro Motion expansion module is ideal for either Micro integrated motion control or

standalone motion control over serial or Ethernet networking. The Micro Motion expansion

module is loaded with features and supports a wide range of stepper and servo control.

The module supports a powerful function set, with up to 256 move profiles stored on the

module. Micro Motion module supports the Portable Memory device (removable Flash

device) for easy program storage of the motion moves.

￥11122.00
￥11122.00
Weight：3.550KG
Quantity：
(Inventory: 55)
Consultation
Accessories
  • ABB-07KR51-Centr
    Original ：￥11222.00
    With a price ：￥11222    		 Quantity
  • ABB-3BSE020269R0
    Original ：￥16364.00
    With a price ：￥16364    		 Quantity
    •
    Original ：￥
    0.00

      With the total price ：￥
    0.00
Product parameters
  • Telephone:+86-15305925923
  • contacts:Mr.Wang
  • Email:wang@kongjiangauto.com
Description

The Micro Motion expansion module is ideal for either Micro integrated motion control or

standalone motion control over serial or Ethernet networking. The Micro Motion expansion

module is loaded with features and supports a wide range of stepper and servo control.

The module supports a powerful function set, with up to 256 move profiles stored on the

module. Micro Motion module supports the Portable Memory device (removable Flash

device) for easy program storage of the motion moves.



GE IC200UMM002 Micro Motion Expansion Unit

VersaMax Nano and Micro Programmable Controllers
The Micro Motion expansion module is ideal for either Micro integrated motion control or
standalone motion control over serial or Ethernet networking. The Micro Motion expansion
module is loaded with features and supports a wide range of stepper and servo control.
The module supports a powerful function set, with up to 256 move profiles stored on the
module. Micro Motion module supports the Portable Memory device (removable Flash
device) for easy program storage of the motion moves.
Micro Motion Expansion Unit
IC200UMM002 IC200UMM102
Product Name VersaMax Micro 2 Axis Motion Module VersaMax Micro 2 Axis Motion Module
Lifecycle Status Active Active
Micro Type Restrictions Micro 20, 40, 64 Support Only Micro 20, 40, 64 Support Only
Number of Axis 2 2
Follower Mode Axis A can follow B or Axis B can follow A within the module only. Axis A can follow B or Axis B can follow A within the module only.
Motion Control Method
Motion commands can be controlled by Micro 20, 40, 64 or by Modbus
Slave interface (RS-232 IC200USB001 or RS-485 IC200USB002) or Ether net (IC200UEM001)
Motion commands can be controlled by Micro 20, 40, 64 or by Modbus
Slave interface (RS-232 IC200USB001 or RS-485 IC200USB002) or
Ethernet (IC200UEM001)
Power Voltage 24 VDC 120/240VAC
Input Voltages line driver (5V) 24 DC line driver (5V) 24 DC
Output Voltages 5VDC and 24VDC 5VDC and 24VDC
Max Speed 500k Pulse/s 500k Pulse/s
Number of Moves Stored
on Unit 256 (non-volatile) 256 (non-volatile)
Move Types (1) Absolute + Increment method (2) Increment method (1) Absolute + Increment method (2) Increment method
Position Rollover Linear, rotation Linear, rotation
Positioning Command Unit Pulse, µm, inch, degree, Free-form Pulse, µm, inch, degree, Free-form
Speed Command Range 6.25 to 500k Pulse/second 6.25 to 500k Pulse/second
Acceleration and
Deceleration Liner Acc/Dec, S-shaped Acc/Dec Liner Acc/Dec, S-shaped Acc/Dec
Dwell Time 0 to 65535 ms (1 ms unit) 0 to 65535 ms (1 ms unit)
Acc/Dec Rate 1 to 50,000,000 (pulse/s2, µm/s2, inch/s2, degree/s2 ) 1 to 50,000,000 (pulse/s2, µm/s2, inch/s2, degree/s2 )
Backlash Correction 0 to 65,535 ( pulses, µm, inch, degree, Free-form ) 0 to 65,535 ( pulses, µm, inch, degree, degree, Free-form )
Range Range +2,147,463,647 to –2,147,463,648 pulses Range +2,147,463,647 to –2,147,463,648 pulses
Pulse Output Type (1) Pulse column [ CW / CCW ] (2) Clock + direction signal
[ CK/direction ]
(1) Pulse column [ CW / CCW ] (2) Clock + direction signal
[ CK/direction ]
Pulse Output Method Line Driver Output Line Driver Output
Operating Mode Auto operation and manual operation Auto operation and manual operation
Home Function Free homing Low-speed homing High-speed homing 1 (OFF edge)
High-speed homing 2 (marker stop)
Free homing Low-speed homing High-speed homing 1 (OFF edge)
High-speed homing 2 (marker stop)
Manual (JOG) operation Manual input signal or pulse output by command Manual input signal or pulse output by command
Feedrate Override Function 1 to 100% (Speed scale rate) 1 to 100% (Speed scale rate)
High Speed
Input Registration Differential Input. Supports Windowing Differential Input. Supports Windowing
Motion Module
I/O Assignment
Inputs:
A-Channel position data from encoder. (differential)
B-Channel position data from encoder. (differential)
Z-Channel position data from encoder. (differential)
Positioning finish signal from servo driver (COIN)
Home limit switch input
Common for Digital Inputs
Jog Forward
Jog Reverse
Feedrate Override
Estop
Drive OK/Ready
Outputs:
Clockwise Pulse (Pulse) (differential)
Counter Clockwise Pulse (Direction) (differential)
Inputs:
A-Channel position data from encoder. (differential)
B-Channel position data from encoder. (differential)
Z-Channel position data from encoder. (differential)
Positioning finish signal from servo driver (COIN)
Home limit switch input
Common for Digital Inputs
Jog Forward
Jog Reverse
Feedrate Override
Estop
Drive OK/Ready
Outputs:
Clockwise Pulse (Pulse) (differential)
Counter Clockwise Pulse (Direction) (differential)
Portable Memory
Module Support Yes Yes
I/O Bus Data Assignement
Module requires 8 words in and 8 words out. The module appears
as two expansion units. A maximum of two motion modules allowed
per controller. If one motion module is in system, 2 additional discrete
or analog expansions can be used.
Module requires 8 words in and 8 words out. The module appears
as two expansion units. A maximum of two motion modules allowed
per controller. If one motion module is in system, 2 additional discrete
or analog expansions can be used.

Dimensions (WxHxD) mm 150x90x76 150x90x76

Programmable Controllers
IC200DTX200 IC200DTX450
IC200DTX850
IC200DTX650
GE VersaMax DataPanels are ideal for a broad range of applications ranging from
simple timer/counter/register access to full text message display with numeric keypad.
All VersaMax DataPanels are preprogrammed to connect quickly to a VersaMax Micro
or Nano PLC without user configuration.
DataPanels Operator Interfaces
IC200DTX200 IC200DTX450 IC200DTX650 IC200DTX850
Product Name
Operator Interface for
changing timer/counter/
register values. 2x16
character LCD backlight
display and 6 operation keys.
No stored messaging,
PLC stores messages.
Requires IC200CBL550
cable or equivalent.
Operates on 5 VDC @
100 mA from Micro or Nano.
Operator Interface with
up to 200 stored messages.
2x16 character LCD
backlight display and
6 function keys.
Requires IC200CBL555
or equivalent.
Operates on external
24 VDC @ 40 mA.
Operator Interface with
up to 200 stored messages.
4x16 character LCD
backlight display and
8 function keys.
Requires IC200CBL555
cable or equivalent.
Operates on external
24 VDC @ 80 mA.
Operator Interface with
up to 200 stored messages.
4x20 character LCD
backlight display,
8 function keys and
numeric keypad.
Requires IC200CBL555
cable or equivalent.
Operates on external
24 VDC @ 50 mA.
Lifecycle Status Active Active Active Active
Characters Per Line 16 16 16 20
Function Keys 0 6 8 8
Numeric Keypad 0 0 0 Yes
Memory Size (Number of Messages) Messages stored in PLC 200 stored in
operator interface
200 stored in
operator interface
200 stored in
operator interface
DataPanel Dimensions (WxHxD) mm 108x60x27 108x60x45 96x96x44 182x101x37
Number of Lines 2 2 4 4
Display Type LCD Display with Backlight LCD Display with Backlight LCD Display with Backlight LCD Display with Backlight
Operating Temperature 0°C to +50°C 0°C to +50°C 0°C to +50°C 0°C to +50°C
NEMA Rating NEMA 4 NEMA 4 NEMA 4 NEMA 4
Programming Software None required DataDesigner
(IC752DDZ000)
DataDesigner
(IC752DDZ000)
DataDesigner
(IC752DDZ000)
  • KUKA TITAN-2 Ultra Ground Overloading Six Axis Robot
  • Assembly instructions for KUKA KR SCARA-2 CS series robotic arm body
  • KUKA MA KR SCARA X Installation Guide
  • KUKA KR FORTEC-2 Ultra Heavy duty Ground Six Axis Robot Mechanical Assembly Manual
  • KUKA KR FORTEC-2 new generation heavy-duty ground six axis robot
  • KUKA Robots KR 1000 titan; KR 1000 L750 titan With F Variants Assembly Instructions
  • KUKA KR 600 FORTEC heavy-duty six axis ground mounted industrial robot
  • KUKA KR 500 MT FORTEC Heavy duty Six Axis Industrial Robot
  • KUKA KR 360 FORTEC Heavy duty Six Axis Industrial Robot
  • KUKA Sunrise Cabinet Med Medical Edition Robot Controller User Manual
  • KUKA Robots KR SCARA HO Assembly Instructions
  • KUKA Robots KR QUANTEC-2 PA Assembly Instructions
  • KUKA Robots KR QUANTEC-2 K and KR QUANTEC-2 P With K-F and P-C Variants Assembly Instructions
  • KUKA Robots KR QUANTEC-2 HO Assembly Instructions
  • KUKA Robots KR QUANTEC-2 HC Assembly Instructions
  • KUKA KR QUANTEC-2 series heavy-duty ground mounted six axis industrial robot
  • KUKA KR QUANTEC PA series heavy-duty palletizing robot
  • KUKA KR IONTEC-2 series six axis industrial robot
  • KUKA KR IONTEC ultra series six axis heavy-duty industrial robot
  • KUKA KR IONTEC HO Robot Assembly Manual
  • KUKA Robots KR CYBERTECH-3 HW Assembly Instructions
  • KUKA Robots KR CYBERTECH-3 Assembly Instructions
  • KUKA Robots KR CYBERTECH-2 arc Assembly Instructions
  • KUKA Robots KR CYBERTECH nano-2 Assembly Instructions
  • KUKA KR CYBERTECH CR HO (KR   20   R1810-HO) assembly instructions
  • KUKA Robots KR CYBERTECH With F variant Assembly Instructions
  • KUKA KR CYBERTECH CR (KR 20 R1810-CR) Clean Room (CR) Version 6-Axis Industrial Robot
  • KUKA KR AGILUS-3 ultra series small six axis serial robot
  • KUKA KR 300 R2700-2 C-F Cast Ceiling Mounted 6-Axis Heavy duty Industrial Robot
  • KUKA KR 20 R1820-2 E Six Axis Industrial Robot
  • Assembly instructions for KUKA KR AGILUS-3 small six axis robot
  • KUKA KR AGILUS-2 New Generation Small Six Axis Robot
  • KUKA KR 1000 1300 titan PA; KR 1000 L950 titan PA With F Variants Assembly Instructions
  • KUKA KR 700 PA/KR 700 PA Arctic Installation Guide
  • KUKA KR 18 R1450-3 PP six axis ground mounted industrial robot
  • KUKA 12 SCARA Series 4-axis SCARA Horizontal Joint Robot
  • KUKA KR 4 R600 Small Six Axis Industrial Robot
  • Installation Guide for KUKA KR 3 R540 Small 6-Axis Industrial Robot
  • KUKA LBR iiwa CR Clean 7-Axis Lightweight Collaborative Robot
  • KUKA KR AGILUS sixx series six axis industrial robot operation instructions
  • KUKA 4-axis heavy-duty SCARA horizontal multi joint robot KR 60 R1200 Z400 CS
  • KUKA KR 23 SCARA-2 CS SCARA Horizontal Multi Joint Robot
  • KUKA KR 20 SCARA CS Robot Assembly Instructions
  • KUKA KR 15 DELTA-2 Assembly Manual
  • KUKA KR 13 SCARA-2 CS Assembly Manual
  • KUKA KR 3 D1200 (Standard Delta Robot) Assembly Instructions
  • KUKA KR 3 D1200 HM Assembly Manual
  • KUKA LBR Med 7 R800, LBR Med 14 R820 Medical Edition Robot
  • KUKA Robots LBR iiwa 7 R800, LBR iiwa 14 R820 Operating instructions
  • KUKA LBR iiwa CR (Clean Room Version Robot) Operating Instructions
  • Lauer PCStopline series text operation panel
  • KUKA LBR iisy (MA_LBR_iisy V5) assembly manual
  • KUKA LBR iisy 3 R760 Assembly Manual
  • KUKA LBR iico Collaborative Robot Assembly Manual
  • Lauer LCAstarline (LCA300/LCA320/LCA325) Text Display Screen
  • Lauer PCS950/PCS950c/PCS950e operation console
  • Lauer EPC Series Industrial Embedded Human Computer Integrated PC User Guide
  • Bonfiglioli Precision Planetary Gearbox TIR-STD ENG R07
  • Bonfiglioli ACT/ACU Cold Plate Inverter Installation Instructions
  • Bonfiglioli EM-RES-02 Expansion Module
  • Bonfiglioli EM-RES-01 Expansion Module
  • Bonfiglioli EM-IO-04 Expansion Module
  • Bonfiglioli EM-IO-03 Expansion Module
  • Bonfiglioli EM-IO-02 Expansion Module
  • Bonfiglioli Vectron EM-IO-01 Expansion Module
  • Bonfiglioli F series gearbox
  • Installation, operation, maintenance, and spare parts of Bonfiglioli HF series reducers
  • Installation, Operation, and Maintenance of Bonfiglioli 300-300M Series ATEX Reducer
  • Bonfiglioli R3 series planetary gearbox
  • Bonfiglioli C series inline helical gear explosion-proof reducer
  • Bonfiglioli EM-ENC-05 Expansion Module
  • Bonfiglioli EM-ENC-04 Expansion Module
  • Bonfiglioli EM-ENC-03 Expansion Module
  • Bonfiglioli EM-ENC-02 Expansion Module
  • Bonfiglioli CM-CAN CANopen communication module
  • Bonfiglioli EM-SYS System Bus Expansion Module
  • Bonfiglioli CM-PDP Profibus DP Communication Module
  • Bonfiglioli CM-232/CM-485/CM-485T Modbus Communication Manual
  • Bonfiglioli BMS series precision planetary servo reduction motor
  • Bonfiglioli ACTION series ACT210 (230V), ACT410 (400V) frequency converter operation manual
  • Bonfiglioli ACT series frequency converter
  • Bonfiglioli HDP/HDO series gear unit IOM installation, operation and maintenance instructions
  • Installation, operation, and maintenance of Bonfiglioli 300-300M series reducers
  • Bonfiglioli 300M Modular planetary gearboxe
  • Bonfiglioli 3/H series heavy-duty modular gearbox
  • Bonfiglioli KRG-KCG-KSD hydraulic coupling
  • Bonfiglioli Vectron BTD-BCR servo motor
  • Bonfiglioli BTD-BCR synchronous servo motor
  • Bonfiglioli VF-W series ATEX explosion-proof worm gear reducer
  • Bonfiglioli EM-ENC-03 Expansion Module
  • Installation, operation, maintenance, and spare parts instructions for Bonfiglioli EVOX-CP series helical gear reducers (including ATEX explosion-proof models)
  • Installation, operation, and maintenance IOM instructions for Bonfiglioli C/A/F/S series gear reducers (including ATEX explosion-proof versions)
  • Bonfiglioli BX-BE-BN-MX-ME-BXN-MNN Motor Installation, Operation and Maintenance Manual
  • Bonfiglioli VF-W IE2-IE3 Worm Gear Reduction Motor: Complete Selection, Verification, and On site Implementation Technical Guide
  • Bonfiglioli VF-W series ATEX worm gear reducer
  • Bonfiglioli RAN series bevel gear angle reducer
  • Bonfiglioli Industry&Automation Business Unit Integrated Products
  • Bonfiglioli EVOX platform CP coaxial helical gear reduction motor
  • Bonfiglioli C-A-F-S Series IE2-IE3-IE4 three series reducers
  • Complete selection, calibration, and common selection of Bonfiglioli C-A-F industrial gear units
  • Bonfiglioli C series explosion-proof helical gear reducer
  • Bonfiglioli BN-BE-BX-BY series three-phase asynchronous motor
  • Bonfiglioli BMD series permanent magnet AC synchronous servo motor
  • Bonfiglioli A-series spiral bevel gear right angle servo reduction motor
  • Installation, Operation, and Maintenance Instructions for Bonfiglioli AS Series Reducer
  • Bonfiglioli Active series high-end frequency converter
  • Bonfiglioli EM-IO-04 Expansion Module
  • Bonfiglioli EM-ENC-02 Expansion Module
  • Bonfiglioli A-series spiral bevel gear reducer sample
  • Bonfiglioli Industrial Transmission Products
  • Bonfiglioli RAN series gearbox
  • Bonfiglioli Active 401/201 frequency converter
  • Alcatel Lucent OmniAccess Stellar AP1301 Indoor Wi Fi 6 (802.11ax) Wireless Access Point
  • Alcatel Lucent Enterprise (ALE) Mobile Handheld Terminal Electronics
  • Alcatel Lucent MDR-8000 Digital Microwave Radio
  • Alcatel 1660 SM Release 5 Optical Multi Service Node
  • Alcatel Lucent OmniSwitch 6850 Stackable LAN Switch
  • Alcatel Lucent 7750 Service Router (SR) series business router
  • Alcatel 1600 series SDH optical transmission equipment
  • Alcatel Lucent 9500 MPR Release 3 ANSI Microwave Packet Radio Equipment
  • Alcatel Lucent 7450 operator Ethernet service switch
  • Alcatel Advanced REFLEXES (OmniPCX 4400) telephone
  • Alcatel Lucent OmniSwitch 6850E Stacked Gigabit Switch
  • Alcatel Lucent OmniSwitch 6450 Stackable Gigabit Ethernet Switch Series
  • Lucent Stinger ATM DSL Access Concentrator
  • Alcatel Lucent 1660SM OMSN (Optical Multi Service Node) series next-generation SDH equipment
  • ALCATEL-LUCENT 9500 MICROWAVE PACKET RADIO
  • Atlas Copco MT Focus 6000 Tightening Controller
