GE IC693MDL230 Analog input/output module
❤ Add to collection

GE IC693MDL230 Analog input/output module

+86-15305925923
Mr.Wang
wang@kongjiangauto.com

The 120 volt AC Isolated Input module for the Series 90-30 Programmable Logic Controller

provides 8 isolated input points, each with a common power input terminal. The input circuits are

reactive (resistor/capacitor) inputs. Current into an input point results in a logic 1 in the input

status table (%I). Input characteristics are compatible with a wide range of user-supplied input

devices, such as pushbuttons, limit switches, and electronic proximity switches. Power to operate

the field devices must be supplied by the user. This module requires an AC power source, it

cannot be used with a DC power source.

￥18677.00
￥15675.00
Weight：1.100KG
Quantity：
(Inventory: 22)
Consultation
Product parameters
  • Telephone:+86-15305925923
  • contacts:Mr.Wang
  • Email:wang@kongjiangauto.com
Description

The 120 volt AC Isolated Input module for the Series 90-30 Programmable Logic Controller

provides 8 isolated input points, each with a common power input terminal. The input circuits are

reactive (resistor/capacitor) inputs. Current into an input point results in a logic 1 in the input

status table (%I). Input characteristics are compatible with a wide range of user-supplied input

devices, such as pushbuttons, limit switches, and electronic proximity switches. Power to operate

the field devices must be supplied by the user. This module requires an AC power source, it

cannot be used with a DC power source.

GE IC693MDL230 Analog input/output module

120 Volt AC Isolated Input, 8 Point
IC693MDL230
The 120 volt AC Isolated Input module for the Series 90-30 Programmable Logic Controller
provides 8 isolated input points, each with a common power input terminal. The input circuits are
reactive (resistor/capacitor) inputs. Current into an input point results in a logic 1 in the input
status table (%I). Input characteristics are compatible with a wide range of user-supplied input
devices, such as pushbuttons, limit switches, and electronic proximity switches. Power to operate
the field devices must be supplied by the user. This module requires an AC power source, it
cannot be used with a DC power source.

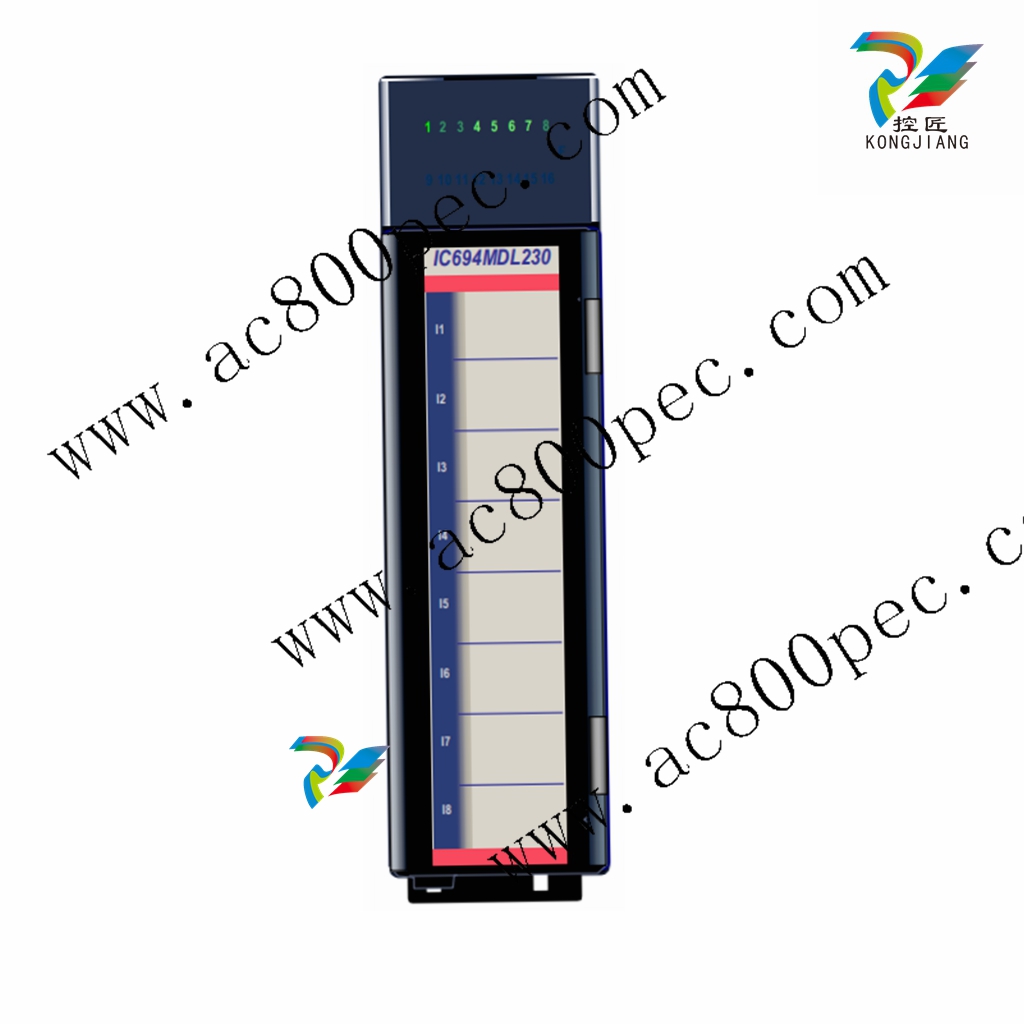

LED indicators which provide the ON/OFF status of each point are located at the top of the
module. This LED block has a horizontal row with eight green LEDs labeled A1 through 8
(points 1 through 8). An insert goes between the inside and outside surface of the hinged door.
The surface towards the inside of the module (when the hinged door is closed) has circuit
wiring information, and circuit identification information can be recorded on the outside
surface. The outside left edge of the insert is color-coded red to indicate a high-voltage
module. This module can be installed in any I/O slot of a 5 or 10-slot baseplate in a Series
90-30 PLC system.
Table 6-1. Specifications for IC693MDL230
Rated Voltage
Input Voltage Range
120 volts AC, 50/60 Hz
0 to 132 volts AC, 50/60 Hz
Inputs per Module
Isolation
8 (each input point has a separate common)
1500 volts RMS between field side and logic side
500 volts RMS between inputs
Input Current 14.5 mA (typical) at rated voltage
Input Characteristics:
On-state Voltage
Off-state Voltage
On-state Current
Off-state Current
On response Time
Off response Time
74 to 132 volts AC
0 to 20 volts AC
6 mA minimum
2.2 mA maximum
30 ms maximum
45 ms maximum

Power Consumption 60 mA (all inputs on) from 5 volt bus on backplane

IC693MDL230 Input Module Field Wiring Information
The following figure provides wiring information for connecting user supplied input devices
and power source to the 120 volt AC Isolated input module. Note that since each input is
isolated (separate) from each of the other inputs, each input can be powered by a separate AC
power source.
