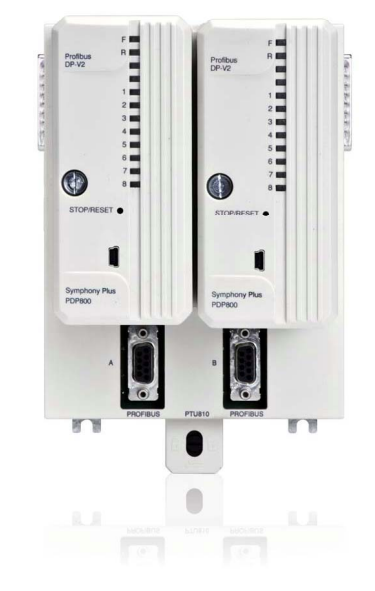

ABB PDP800 PROFIBUS DP
HPC800 controller seamlessly integrates field
devices through its PDP800 PROFIBUS
interface module
Profibus DP-V0,-V1 and -V2
Transmission rates from 9.6 Kbps to 12Mbps
Standard Profibus Diagnostic functions
SOE Time-Stamping with S800 1/O or other
devices that support this feature
Master & Line Redundancy
Up to 64 Profibus Slaves per PDP800
Communicates to HPC800 Controller via
HN800 [Redundant]
Up to 8 redundant PDP800's can be
connected to 1 HPC800

Symphony Plus

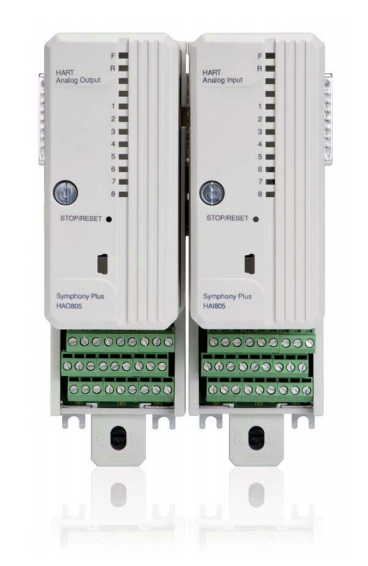

S+ Control & I/O: HAI805 / HAO805 HART I/O
HART I/O Modules
HAI805-8 Analog Inputs
HAO805-8 Analog Outputs
Dedicated HART modem for eachI/O Channel
Communicate to Controller via
[Redundant] HN800
Secondary /Tertiary HART variables:
Variables available in Controller
(can be used in control strategy)
Update rates: less than 1 sec
Up to 4 secondary/tertiary variables
per channel or device

Symphony Plus
S+ Control & I/O: PNI800 Communications Interface
PNI800:
Computer Interface to PN800
CIU for PN800 S+ Plant Network
Preserves current SWinterface
for existing Composer Harmony
& S+ Operations applications!
One required for each HMI and
one for every 10 engineering
consoles

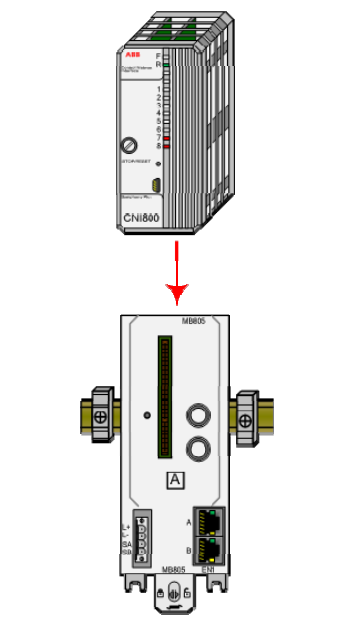

MB805: Single Module Base
Module mounting base for
PNI800 modules
