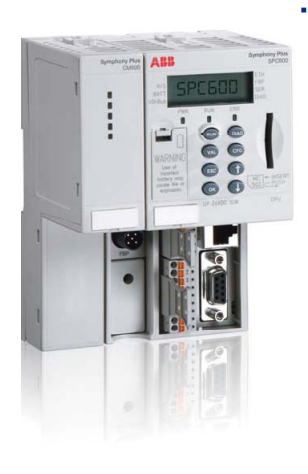

ABB SPC600 Symphony Plus S+ Control and I/O
CPU options for:User programs
Data memory
Processing speeds
Two serial interfaces integrated for programming
and communication
Optional CPU with integrated Ethernet
Up to four communication modules
Distributed and local l/O expansion
Libraries with technology functions (e.g.PLCopen)
Environmental packaging for harsh environments
Extended operating temperature, immunity to
vibration and hazardous gases, use at high altitudes,etc.
Programming using IEC61131-5 language
Program using C

Integrated communication
Ethernet or ARCNET
MODBUS RTU
CS31(2-wire connection)
ASCII
Fieldbus independent interface for slave
communication
PROFIBUS DP,CANopen, DeviceNet
With additional communication modules as
master or multi-master (up to 4)
Ethernet with switch
PROFIBUS DP (V0/V1),DeviceNet,
CANopenRCOM
Serial interface for free protocol, MODBUS,
CS31,or ASCII
Real-time Ethernet:EtherCAT, PROFINET
PROFINET Safety

Onboard Ethernet (optional):
• Programming via PC
• Internet protocols (web server,
FTP, e-mail, time sync, and more)
Terminal base:
• Easy snap-on of CPU and optional
communication modules
• CPU performance upgrade is
• IEC 60870-5-104
COM2 (Sub-D9, RS-232 / RS485) p pg
convenient and fast
• Pre-wiring of CPU connections
C i ti d l
( )
• Programming via PC
• ASCII protocol
• Modbus-RTU (master or slave)
Communication mod
ule:
• Up to 4 communication modules in
any combination
COM1 (spring terminal, RS-232 /
RS485)
• P i i PC Programming via PC
• CS31 bus (master)
• ASCII protocol
• Modbus-RTU (master or slave)
