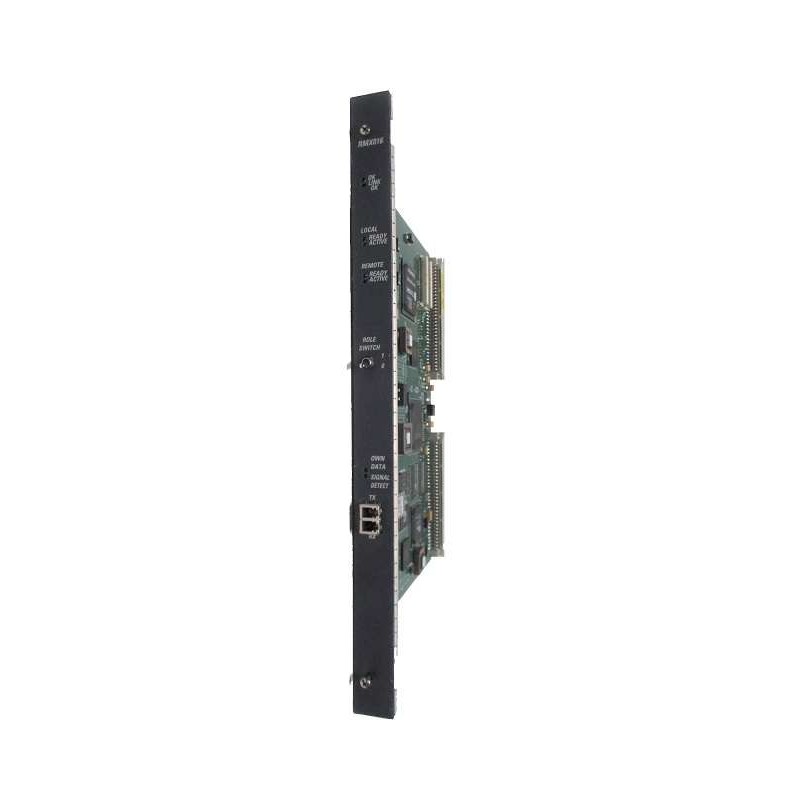

GE IC698RMX016 Communications Modules
Programmable Controllers
1.9 www.ge-ip.com GE Intelligent Platforms Control Systems Solutions
PACSystems features a variety of communications options for distributed control
and/or I/O, supporting a wide range of communication protocols and configurations.
These communication modules are easy to install and quick to configure. Some distributed
I/O communications modules allow for numerous remote drops or additional racks, while
others provide an interface for GE products up to 7500 feet away from the controller.
Communications Modules
IC698RMX016 IC698CMX016 IC698ETM001
Product Name Redundancy Memory
Xchange Module
Control Memory
Xchange Module
RX7i Standalone
Ethernet Module 10/100
Lifecycle Status Active Active Active
Module Type Redundancy Communications
(High Availability)
Control Memory Xchange Ethernet Controller
Supports Redundancy Yes No No
Protocols Supported N/A N/A N/A
Effective Data Rate 2.12 gigabaud 2.12 gigabaud N/A
Electrical Isolation
Non-isolated differential
communication
Non-isolated differential
communication
N/A
Communications Processor Speed N/A N/A N/A
Simultaneous Communication Speed N/A N/A N/A
Individual Communication Speed N/A N/A N/A
Reflective Memory Available 16 Mbytes 16 Mbytes N/A
Distance Between Nodes Up to 300 meters Up to 300 meters N/A
Access Time
400 ns (worst-case),
200 ns (best-case)
400 ns (worst-case),
200 ns (best-case)
N/A
Transfer Rate
6.2 Mbyte/s without
redundant transfer,
3.2 Mbyte/s with
redundant transfer
6.2 Mbyte/s without
redundant transfer,
3.2 Mbyte/s with
redundant transfer
N/A
Cable Requirements
Connector
(LC type, conforms to IEC61754-20)
Cable (ST Type Fiber-Optic
Multimode; 62.5 Micron core)
Connector
(LC type, conforms to IEC61754-20)
Cable (ST Type Fiber-Optic
Multimode; 62.5 Micron core)
N/A
Built-in Serial Ports
None None 2 Twisted pair 10 Base
T/100 Base TX RJ-45
Current Required from 5V Bus 1.2 Amps 1.2 Amps N/A

PACSystems RX7i Programmable Controllers
1.10 GE Intelligent Platforms Control Systems Solutions www.ge-ip.comAccessories
IC690CDR002 User Manuals, InfoLink CD-ROM Documentation, Single-user License Active
IC697ACC621 Short Rack Fan Assembly, 120 VAC Active
IC697ACC624 Short Rack Fan Assembly, 240 VAC Active
IC697ACC644 Short Rack Fan Assembly, 24 VDC Active
IC697ACC721 Rack Fan Assembly, 120 VAC Active
IC697ACC724 Rack Fan Assembly, 240 VAC Active
IC697ACC736 Cable Shield Clamping Assembly Active
IC697ACC744 Rack Fan Assembly, 24 VDC Active
IC698ACC701 Replacement Battery Active
IC698ACC720 Gasketed Filler Faceplate, Double-width Active
IC698ACC735 Gasketed Filler Faceplate, Single-width ActiveCables
IC200CBL001 Station Manager Cable for Ethernet Interface Active
IC600WD002 I/O Expansion Cable, 2 feet (0.6 meters) Mature
IC600WD005 I/O Expansion Cable, 5 feet (1.5 meters) Mature
IC600WD010 I/O Expansion Cable, 10 feet (3.0 meters) Mature
IC600WD025 I/O Expansion Cable, 25 feet (7.5 meters) Mature
IC600WD050 I/O Expansion Cable, 50 feet (15 meters) Mature
