ABB FF/HSE Module FI840F
❤ Add to collection

ABB FF/HSE Module FI840F

+86-15305925923
Mr.Wang
wang@kongjiangauto.com

Features

… ARM-CPU with integrated Ethernet controller, 32-bit data

bus, 32-bit address bus

… Flash EPROM for module CPU and protocol software.

… Software/firmware update without EPROM exchange.

… Separate memory for module CPU.

… Shared memory for data exchange between main proces sor and module CPU. Data protection by parity check.

… Automatic detection if 10BaseT or 100BaseTX is con nected.


￥11050.00
￥12000.00
Weight：3.500KG
Quantity：
(Inventory: 20)
Consultation
Accessories
  • ABB-PP886-Touch
    Original ：￥22831.00
    With a price ：￥22831    		 Quantity
  • ABB-1TGC908006M0
    Original ：￥19745.00
    With a price ：￥19745    		 Quantity
    •
    Original ：￥
    0.00

      With the total price ：￥
    0.00
Product parameters
  • Telephone:+86-15305925923
  • contacts:Mr.Wang
  • Email:wang@kongjiangauto.com
Description

Features

… ARM-CPU with integrated Ethernet controller, 32-bit data

bus, 32-bit address bus

… Flash EPROM for module CPU and protocol software.

… Software/firmware update without EPROM exchange.

… Separate memory for module CPU.

… Shared memory for data exchange between main proces sor and module CPU. Data protection by parity check.

… Automatic detection if 10BaseT or 100BaseTX is con nected.




ABB FF/HSE Module FI840F
Features

… ARM-CPU with integrated Ethernet controller, 32-bit data
bus, 32-bit address bus
… Flash EPROM for module CPU and protocol software.
… Software/firmware update without EPROM exchange.
… Separate memory for module CPU.
… Shared memory for data exchange between main processor and module CPU. Data protection by parity check.
… Automatic detection if 10BaseT or 100BaseTX is connected.
… Electrical isolation for TP interface
… ESD protector on RJ45 socket
… Serial interface/Manchester encoder for generating a serial
bit stream
… EEPROM for configuration data and diagnostic data memory independent from battery buffering.
… Isolator for electrical isolation of the bus signals
… RJ45 connector with two link LEDs.
Description
The FI 840F is a high speed ethernet fieldbus module designed
for fast data exchange in production engineering with decentralized peripherals.

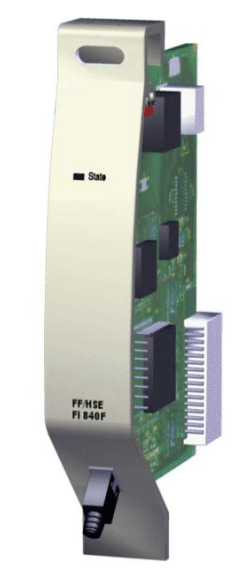

The FF/HSE module FI 840F is a Fieldbus-Foundation®-(FF)-
Master. Using the Control Builder F it is possible to configure
diverse Fieldbus Foundation®-devices.
The FF/HSE module FI 840F is designed to connect the
AC 800F to a FF/HSE network. It can be mounted on slots
F1 ... F4. It is used if high transmission rates are required or
shall be made available for future use. FF/HSE wiring is always
a point-to-point connection. Therefor a networks with more than
two nodes always requires network switches or hubs. RJ-45 female connector (shielded). There are two integrated
LEDs indicating the current communication status. The LEDs
are not labeled but can be identified by their color. The upper
yellow LED indicates the transmission rate, the lower green
LED indicates the communication state.
LED Displays
State
off No voltage applied, module is separated.
green Power on, module is identified and ready
for operation according to the configuration
orange Power on,
module has been identified by AC 800F,
- intermediate state during start-up
Page 18 June 2006
- configuration mode of the boot loader
flashing orange Power on, module has been identified by
AC 800F. Module is not connected to
corrected bus physics
red Power on
- Module not yet identified (on a shortterm basis during start up)
- an error has occurred during module
test
Front Panel Connections
LED FF/HSE Speed
off Module has detected 10 MBit/s data connection.
static yellow Module has detected 100 MBit/s data connection.
LED FF/HSE Link
off No active link, neither 10Mbit nor 100 MBit. No communication possible.
static green Active link. Communication possible. No
data transfer.

flashing green Active link. Communication possible.

Technical Data
Rated voltage 5 V ± 3%, 3.3 V ± 3 % and 2.5 V ± 5 %
Power consumption
in active state 1.4 W - 2.1 W depending on communica tions load
Module memory 8 MBytes synchronous dynamic RAM
Shared memory 1 MByte synchronous static RAM used for
data exchange between CPU board and
module.
Firmware memory 2 MByte Flash EPROM, 32-bit word
length, capable of programming in the sys tem and direct programming from AC 800F
CPU board
EEPROM Serial 16 kBit EEPROM,
write cycles ≥ 107
,
buffering time ≥ 10 years
Weight approx. 0.150 kg
Static characteristics
Power consumption max. 2.1 W
Medium 100BaseTx cable, category 5
Max. segment
length 100 m
Max. number of
nodes per segment 2
Dynamic characteristics
Transmission rate 10 Mbit/s or 100 Mbit/s
