Description
Features
16 points - 8 isolated Form C
- 2 groups of 4 Form A
2 amp per point switching capacity
RC snubber and fuse protection per point
No user power required
Removable field wiring terminal
GE IC697MDL940 Discrete Output Modules
Functions
The 16 point Relay Output Module is versatile,
rugged, and easy to use. It will switch a variety of
low to medium power loads such as relays, contactors,
and lamps.
The resistive rating of the module is 2 amps per point
at 120/240 VAC or 24 VDC and 0.2 amps per point for
125 VDC. Power to energize the relay coils is supplied
by the module and each output is individually fused
and suppressed with an RC snubber.
LED indicators which display the ON - OFF status of
each point on the logic (PLC) side of the circuit are
located at the top of the module.
Field wiring is made to a removable terminal board
and the module is mechanically keyed to ensure correct replacement with a similar module type in the
field. I/O references are user configurable without the
use of jumpers or DIP switches on the module.
Configuration is done using the configuration function of the MS-DOS or Windowsprogramming software running on Windows 95 or Windows NT over
Ethernet TCP/IP or through the SNP port. The Programming Software configuration function is installed
on the programming device. The programming device can be an IBM XT, AT, PS/2 or compatible Personal Computer.
Operation - Relay Output Module
SYSTEM
INTERFACE BACKPLANE
a44515
RELAY
DRIVER
LED
RELAY
DRIVER
LED
V
NO
NC
FUSE 3A
SNUBBER
FORM
C
RELAY
SNUBBER
FORM
A
RELAY
NO
V
FUSE 3A
Figure 1. Block Diagram for IC697MDL940
Output Protection
Fusing
Each output is protected with a 3 amp fuse. Replace
with either of the following types:
3AG - 3.0 amp, 250V, Fast Acting
Metric 5 x 20 mm - 3.0 amp, 250V, Fast Acting
Suppression
Each output is suppressed with an RC snubber to re duce high frequency noise transients on the board.
Proper suppression of the switched load is still recom mended and will contribute to improved system reli ability. Suppression at the load will not only lengthen con tact life, but will also reduce noise transients in the control
wiring.
Fault Mode Selection
This output module can be configured from the pro grammer so that output points assume one of two
states in response to certain operating or default
conditions. These states are:
Maintain existing output state
Turn outputs OFF
For more detailed information on module configuration,
refer to the Programming Software User’s Manual.
Module Mechanical Keying
This module includes a mechanical key that prevents
inadvertent substitution of one module type for
another in a given slot. The key fits a uniquely
shaped area on the board below the connector. Each
module has a key packaged with it.
When the module is first installed, the key latches
onto the backplane center rail. When the module is
extracted, the key remains in the center rail, configur ing the slot to accept only identical module types.
If it is necessary to change the module location in the
rack after the key has been latched onto the center rail
of the rack, the key can be removed by pushing it up ward to unhook the latch while pulling it off the rail.
It may then be reinserted onto the module and the
module inserted into the rack in the desired location.
Note that on;y a power supply can be placed in the
leftmost rack position, and slot 1 (adjacent to the pow er supply) must always contain a CPU (in rack 0 - the
CPU rack), or a Bus Receiver Module (in an expansion
rack).
Field Wiring
The module is wired as shown in Figure 2. You have
the choice of selecting either a normally open or a
normally closed relay contact (or both) for each of the
eight Form C relays, and four normally open contacts
for each group of Form A relays. A connection is provided at the V terminal for a power source for the
load. Each Form C relay and each group of the Form
A relays can switch either an AC or a DC load.
The detachable field wiring terminal board will accept
wire sizes from AWG #22 (0.36 mm) through AWG
#14 (2.1mm). Two wires may be terminated on a
given lug if both wires are the same size. There is
room for a bundle of forty #14 wires to be routed out
through the terminal board cavity.
The wire bundle can be secured to the terminal board
by passing a cable tie through a cleat located at the
lower corner of the terminal board.
Purchase history
| User name | Member Level | Quantity | Specification | Purchase Date |
|---|
Total 0 Record
Customer Reviews
Satisfaction ：
5 Stars
No evaluation information
-

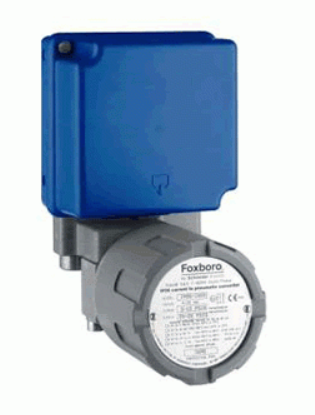

Eckardt SRI986 Intelligent Valve Positioner -

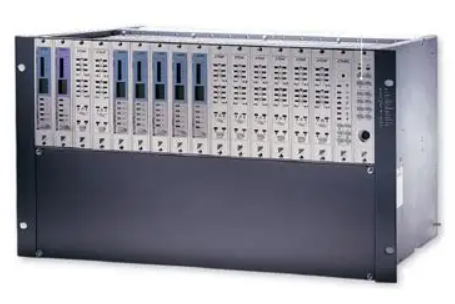

Honeywell System 57 5704 Control System -
Schneider Electric 140CHS 1100 Communication Module -
Moog CD series compact dynamic brushless servo motor -

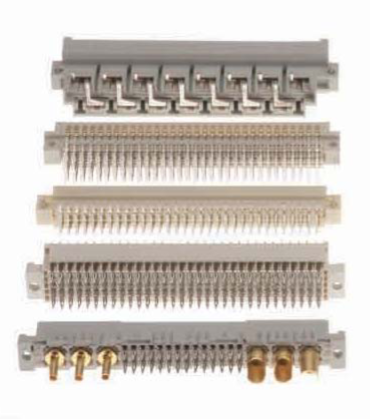

HARTING DIN 41612 connector -
ABB DAPU100 3ASC25H204 Interface Template -

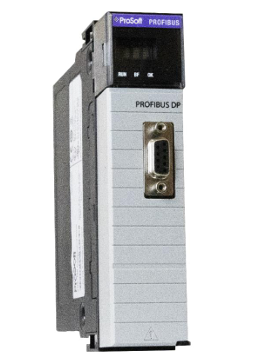

ProSoft Technology ILX56-PBM PROFIBUS DPV1 Master/Slave Module -

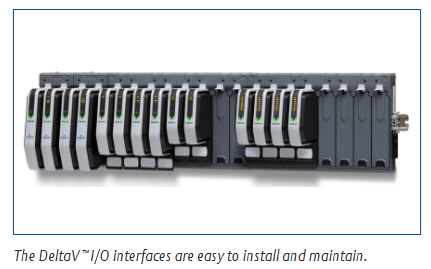

Emerson DeltaV S Series Traditional I/O Modules -

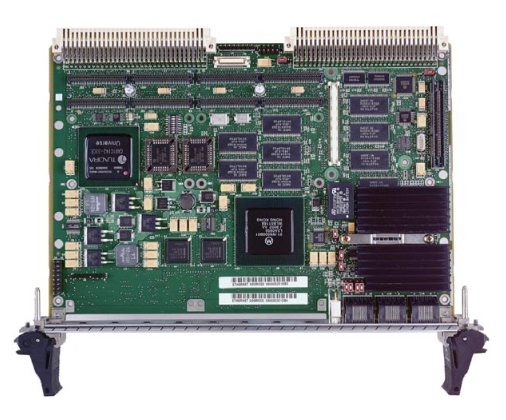

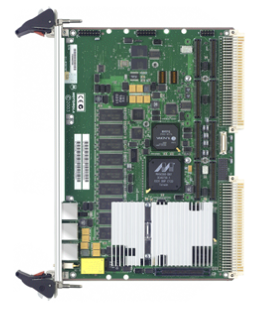

MOTOROLA MVME6100 series VME single board computer -
Emerson MVME5100 Series VME Bus Processor Module -

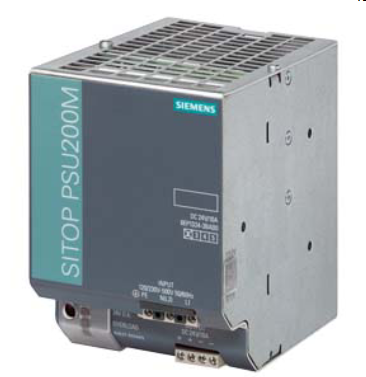

Siemens 6EP1334-3BA00 (SITOP PSU200M) stabilized power supply -

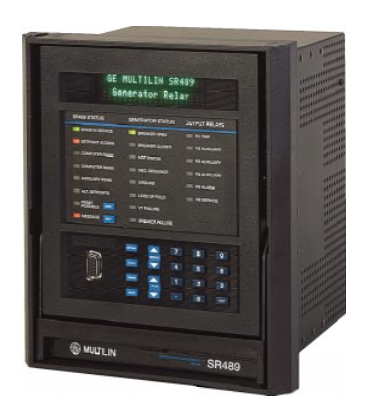

GE Power Management SR489 Generator Management Relay -

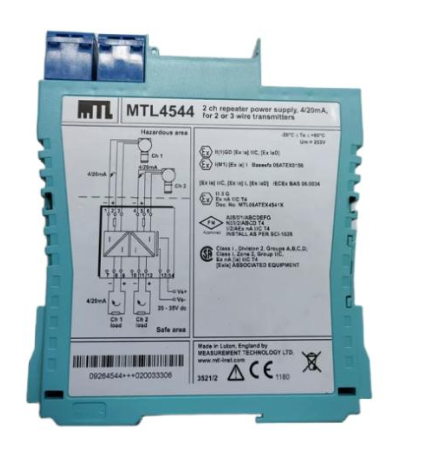

Eaton MTLx544-S Series (MTL4544/S, MTL5544/S) Relay Power Supply -
Emerson MVME5100 Series VME Bus Processor Module -

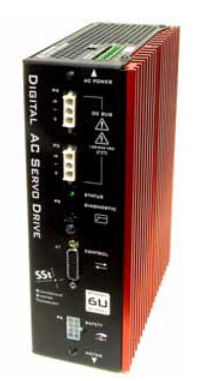

Teknic SSt-6000-U Digital Servo Drive -
HIMA HIMatrix MI 24 01 Safety Related Controller Module -
Horner Automation MAN0344-03 Industrial Controller/Human Machine Interface (HMI) -
Emerson Automation Series MC-PHAI01 (51403479-150) 8-Channel Analog Input Module -

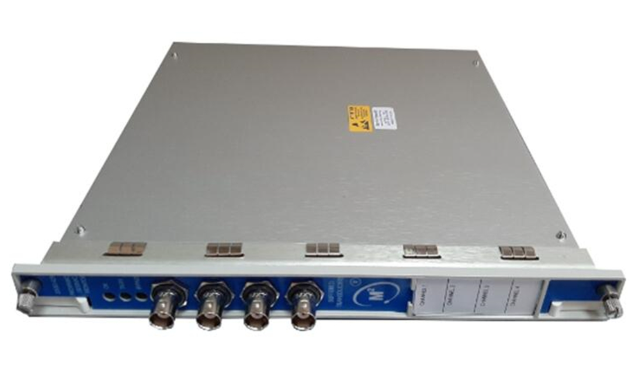

Bently Nevada 3500/42M Proximity Seismic Monitor -
GE VMIACC5595 Embedded Industrial Control Module -

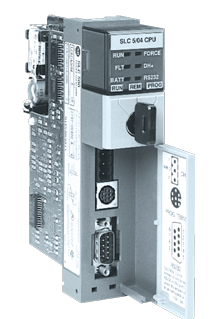

Rockwell SLC ™ 500 series 1747-L543 (SLC 5/04 controller) -

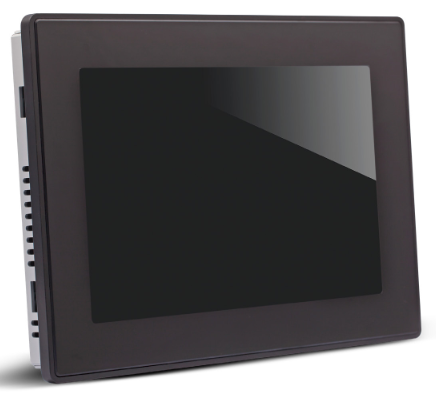

Honeywell WEB-HMI10/CF 10.1 "TFT ARM Cortex-A53 Quad Core 3 Ethernet, 2 USB ports -
Rockwell Automation 1756 Series ControlNet Communication Module -

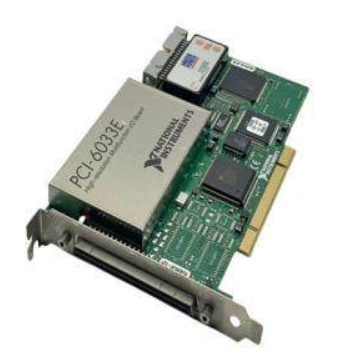

NI 6030E/6031E/6032E/6033E series -
ABB 1TGE120011R1000 motor and feeder control unit -

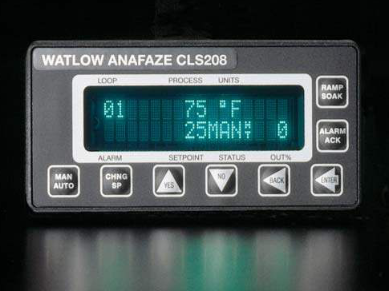

Watlow CLS200 series controller -
Schneider 140DDI84100 Discrete Input Module -
Modicon Quantum 140ACI03000 Analog Input Module -
Rockwell Automation ControlLogix 5570 and 5560 controllers -
ABB IEMMU21 module -
Endress+Hauser Prosonic T FMU30 Ultrasonic Liquid Level Measuring Instrument -
ABB SC510 submodule carrier (without CPU) -

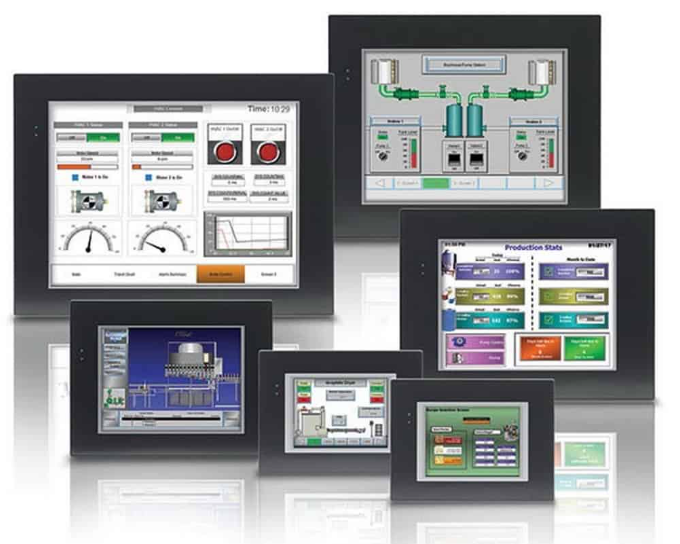

Beijer Mitsubishi Electric E1000 Series Operation Panel -
HIMA HIMatrix F30 Compact Safety Controller -
HIMA HIMax Safety Control System -
HIMA HIMatrix F2 DO 8 01 Remote I/O Module -
HIMA HIQuad X Safety System -
HIMA HIMax X-SB 01 System Bus Module -
KOLLMORGEN Saia PCD Series I/O Modules -
Kollmorgen S700 series digital servo amplifier -
KOLLMORGEN P70360 High Performance Microstep Driver -

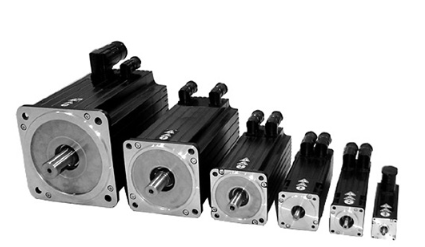

KOLLMORGEN AKM series synchronous servo motor -
KOLLMORGEN AKD ®- N servo drive -
AKD ® Servo driver CANopen communication -
AKD ® Servo drive fault card -
SERVOSTAR ® CD series servo amplifier -
SERVOSTAR ® CD-LITE servo amplifier -
SERVOSTAR ™ 601... 620 digital servo amplifier (S600 series) -
B&R Power Panel 300/400 Touch Screen -
Emerson S-series Mass Connection Solutions -
Emerson DeltaV SIS Logic Solver (SLS1508) -
Emerson DeltaV Ethernet I/O Card (EIOC) -
Emerson DeltaV ™ M-series Traditional I/O -
Emerson DeltaV ™ Electronic Marshalling for Migrations -
Emerson DeltaV Controller -
Emerson DeltaV Bulk Power Supplies -
Emerson DeltaV SD Plus Controller -
Emerson DeltaV M Series Virtual I/O Module 2 (VIM2) -

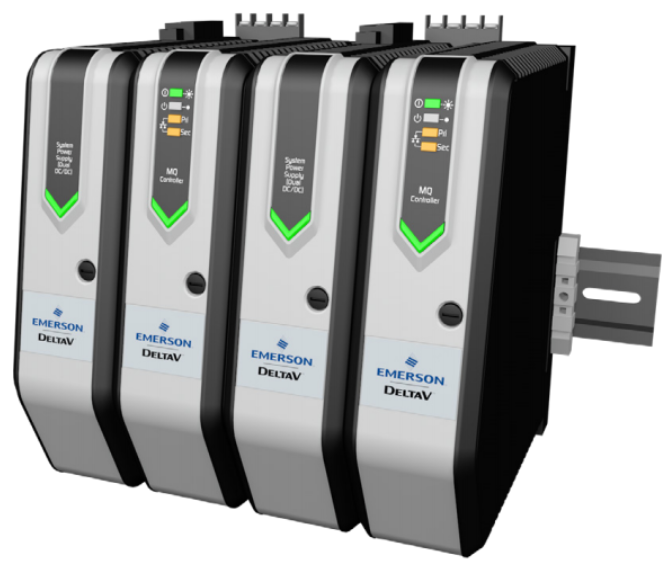

Emerson DeltaV M Series MD Plus Controller -
Emerson Ovation ™ Power system (5X00785G09) -
Emerson DeltaV Intelligent Switch -
Emerson A6110 Dual Channel Shaft Vibration Monitor -
Emerson MMS 3210 Dual Channel Axial Displacement Transmitter -
Emerson MMS 3120 Dual Channel Bearing Vibration Transmitter -
Emerson MMS 677X Dual Channel Bar Chart Indicator -
Emerson Martens Standard Signal Instrument S 1010 -
Emerson CON021 Eddy Current Signal Converter -
AMS 6500 Classic System Protection Card -
Emerson Machine Monitoring Systems RPM Transformer PR 9376 -
Emerson Linear Displacement Sensor PR 9350/.. Series -
Emerson PR 9376 series eddy current sensor system -
Emerson Electric Power Absolute Vibration Sensor (PR 9266/.. And PR 9268/..) -
Emerson Motion Control FX 490 -
Emerson The Ovation ™ Control System -
Emerson Ovation Distributed Control System Input/Output (I/O) Module -
Emerson HART High Performance Analog Input Module -
Emerson Ovation ™ Controller Model OCR1100 -
Emerson PAC8000 Remote I/O -
Emerson A6500-LC LVDT preamplifier -
EMERSON A6370 Overspeed Protection Monitor -
EMERSON A6110 axis relative vibration monitor -
EMERSON FloBoss ™ S600+ Flow Computer -
EMERSON CSI 2130 Machinery Health ™ Analyzer -
AMS 2140 Machinery Health ™ Analyzer -
Emerson AMS Suite: Machinery Health ™ Manager v5.61 Software Installation Guide -
GE Fanuc Series 90-30 Programmable Controller -
GE PACSystems RX7i Controller -
GE Series 90–70 Genius Bus Controller -
GE VersaMax ® Programmable controller -
GE VMIVME-7696 Pentium II processor based on VMEbus single board computer -
GE VMIVME-7695 Single Slot Pentium II Embedded Module Processor -
GE VMIVME-7459 Single Slot VME IDE CD-RW/Hard Disk Module -
GE VMIVME-6016 VMEbus Intelligent 16 Channel Asynchronous Serial Controller -
GE VMIVME-5620 Intelligent HSD Simulator -
GE VMIVME-5588 high-speed reflective memory board -
GE VMIVME-5532L VMEbus fiber optic repeater link -
GE VMIVME-5531L VMEbus fiber optic repeater link -
GE VMIVME-4514A 16 channel scanning analog I/O board -
GE VMIVME-4150 isolated 12 channel 12 bit analog output board -
GE VMIVME-3126 High Resolution Isolated Analog to Digital Converter Board -
GE VMIVME-3100 16 channel 12 bit analog-to-digital converter board -
GE VMIVME-2540 24-Channel Intelligent Counter/Controller -
GE VMIVME-2511 Programmable I/O Board -
GE VMIVME-2510B 64 bit TTL digital I/O board -
GE VMIVME-2128 128 bit high voltage digital output board -
GE VMIMPC-5790 PMC Dual Channel Ultra160 SCSI Host Adapter -
GE VMIVME-2170A 32-bit optically isolated digital output board -
GE VMIPCI-5565 Ultrahigh Speed Fiber-Optic Reflective Memory with Interrupts -

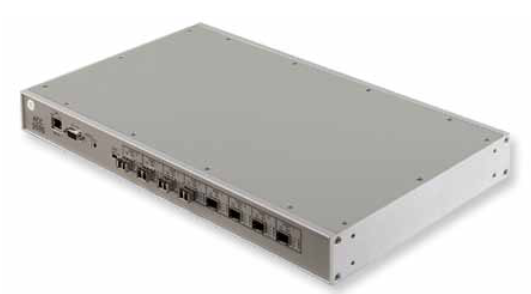

GE VMIACC-5595 2 Gb/s Reflective Memory Hub Component -
