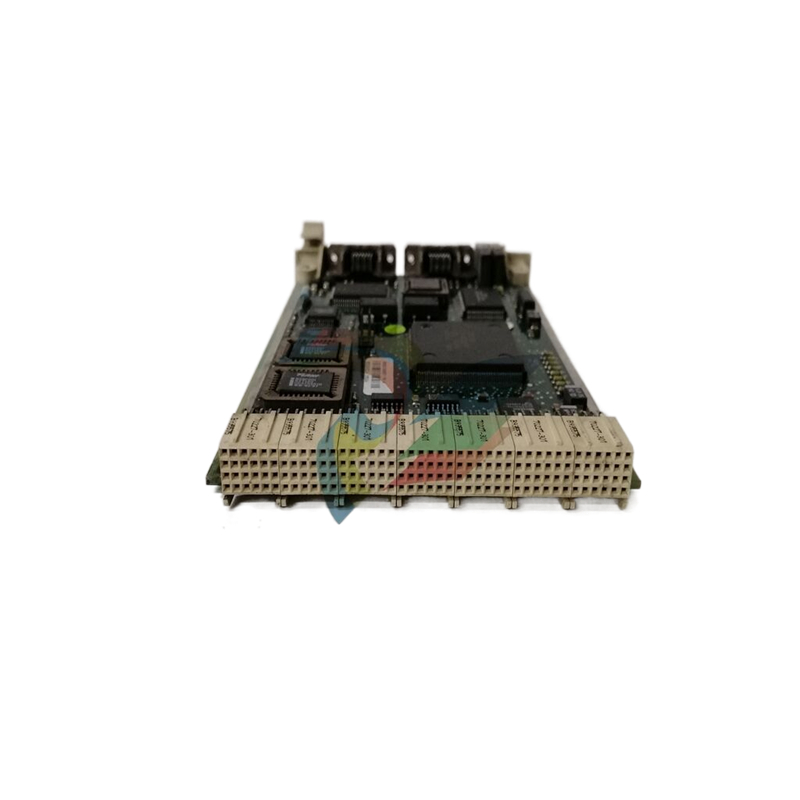

ABB SPIET800 IET800 Ethernet CIU Transfer Module

ABB SPIET800 IET800 Ethernet CIU Transfer Module

Basic Information

Alias: It is also known as IET800, SPIET800 and IET800 are different names for the same module.

Series: ABB Symphony Plus series of control systems belong to the communication module, mainly used to implement the series of control systems between Infi-net network and Ethernet communication conversion.

Origin: Originally from India or Sweden, different batches or specific products may vary due to production schedules and other factors.

Functionality

Communication Protocol Conversion: It can convert the communication protocol between Infi-net controller and host computer, so that Infi-net network-based devices can interact with Ethernet devices, and realise seamless connection between devices under different network architectures.

Data Processing and Transmission: Efficiently sorts, organises and stores the data received from the Infi-net controller, and accurately transmits the data to the host computer via Ethernet according to the TCP/IP protocol. At the same time, it can also correctly forward the data sent by the host computer to the Infi-net controller, ensuring the efficiency and accuracy of data transmission.

Optimised network integration: helps to better integrate Infi-net network into Ethernet-based industrial automation network architecture, simplifies network management and connection complexity, and improves the scalability and flexibility of the entire control system.

Technical Specifications

Power supply: the module usually requires 24VDC DC power supply, the stability of the operating voltage is critical to the normal operation of the module, the voltage fluctuation range should be controlled within ±10% of the rated voltage.

Power consumption: power consumption of about 20W, lower power consumption design helps to reduce the overall energy consumption of the system, but also facilitate the use of some of the more stringent power requirements of the power supply application scenarios.

Dimensions: The external dimensions of the module are approximately 144mm x 80mm x 35mm. The compact size makes it easier to install the module in control cabinets or equipment, and it can be flexibly installed in various limited spaces, saving installation space.

Weight: Weighing approximately 300g, the light weight of the module makes it easy to handle and install, and also reduces the overall weight of the equipment.

Operating Temperature Range: It can work normally in a wide temperature range from - 20℃ to 70℃, adapting to the temperature changes of different industrial environments and ensuring stable and reliable operation even under harsh industrial field conditions.

Storage temperature range: The storage temperature range is from - 40℃ to 85℃, even if the module is not used for a long time or stored in a harsh environment, it is not easy to be damaged.

Application Fields

Industrial automation: Widely used in various industrial automation control systems, such as petrochemical, electric power, metallurgy, pharmaceutical and other industries, to achieve real-time monitoring and control of various equipment and process parameters in the production process.

SCADA system: In the data acquisition and monitoring control system, as a key communication device, it is responsible for collecting and transmitting the data from Infi-net devices to the monitoring centre, providing real-time and accurate production data for the operators, so as to make timely decisions and process optimization.

Intelligent Building: It can be used for building automation system in intelligent buildings to centrally manage and control the HVAC (heating, ventilation and air conditioning) system, lighting system, security system, etc. in the building, so as to improve the efficiency of energy utilisation and operation and management of the building.
