GE FANUC IC698CPE030/CPE040 Central Processing Unit
❤ Add to collection

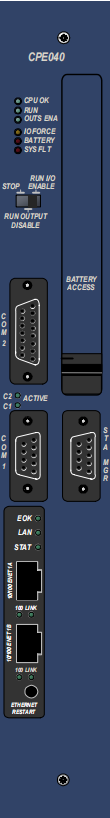

GE FANUC IC698CPE030/CPE040 Central Processing Unit

+86-15305925923
Mr.Wang
wang@kongjiangauto.com

The RX7i CPUs are programmed and configured by the programming software to perform real time  control of machines, processes, and material handling systems. The CPU communicates with I/O and  smart option modules over a rack-mounted backplane using the VME64 Standard format. It  communicates with the programmer and HMI devices via the embedded Ethernet ports or a serial port  using SNP Slave protocol.

12883.00
¥12500.00
Weight:2.400KG
Quantity:
(Inventory: 22)
Consultation
Product parameters
  • Telephone:+86-15305925923
  • contacts:Mr.Wang
  • Email:wang@kongjiangauto.com
Description

The RX7i CPUs are programmed and configured by the programming software to perform real time  control of machines, processes, and material handling systems. The CPU communicates with I/O and  smart option modules over a rack-mounted backplane using the VME64 Standard format. It  communicates with the programmer and HMI devices via the embedded Ethernet ports or a serial port  using SNP Slave protocol.


GE FANUC IC698CPE030/CPE040 Central Processing Unit

CPE030:

600MHz Pentium-M microprocessor with 64 MB of user memory and 64 MB of user flash

CPE040:

1800MHz Pentium-M microprocessor with 64 MB of user memory and 64 MB of user flash

Features

■ Contains 64 Mbytes each of battery-backed user memory and non-volatile flash user memory for

user data (program, configuration, register data, and symbolic variable) storage.

■ Access to bulk memory via reference table %W.

■ Configurable data and program memory.

■ Programming in Ladder Diagram, C, Structured Text, and Function Block Diagram.

■ Auto-located Symbolic Variables that can use any amount of user memory.

■ Support for Series 90-70 discrete and analog I/O, communications, and other modules. For a list

of modules supported, refer to the PACSystems RX7i Installation Manual, GFK-2223.

■ Support for all non-GE Fanuc VME modules supported by Series 90-70.

■ PLC data monitoring over the web. Allows a combined total of up to 16 web server and FTP

connections.

■ Up to 512 program blocks. Maximum size for a block is 128KB.

■ Test Edit mode that allows you to easily test modifications to a running program.

■ Bit-in-word referencing

■ Battery-backed calendar clock.

 CPU and module firmware upgrades via Winloader through CPU’s RS-232 or RS-485 serial port.

■ Three isolated serial ports: an RS-485 serial port, an RS-232 serial port, and an RS-232 Ethernet

station manager serial port.

■ An embedded Ethernet interface with:

− Data exchange using Ethernet Global Data (EGD)

− TCP/IP communication services using SRTP

− Modbus TCP server

− Full PLC programming and configuration services

− Comprehensive station management and diagnostic tools

− Two full-duplex 10BaseT/100BaseT/TX (RJ-45 Connector) ports with an internal network

switch providing auto-negotiated network speed, duplex mode, and crossover detection.

Specifications

Note: For environmental specifications and compliance to standards (for example, FCC or European Union Directives),

refer to Appendix A of the PACSystems RX7i Installation Manual, GFK-2223.

Battery: Memory retention Estimated 30 days using an IC693ACC302 Auxiliary Battery Module

at 20ºC.

For details on the operation of the Auxiliary Battery Module, refer to

the datasheet, GFK-2124.

Note: The IC698ACC701 RX7i Replacement Battery is not

compatible with the CPE030 or CPE040 CPU modules.

Program storage Up to 64 Mbytes of battery-backed RAM

64 Mbytes of non-volatile flash user memory

Power requirements: CPE030

CPE040

+5 VDC: 3.2 Amps nominal

+12 VDC: 0.003 Amps nominal

-12 VDC: 0.003 Amps nominal

+5 VDC: 6.8 Amps nominal

+12 VDC: 0.003 Amps nominal

-12 VDC: 0.003 Amps nominal

Operating temperature: CPE030

CPE040

0 to 50°C (32°F to 122°F)

0 to 60°C (32°F to 140°F) with fan tray

0 to 60°C (32°F to 140°F), fan tray required

Boolean execution speed, typical: CPE030

CPE040

0.069ms per 1000 Boolean contacts/coils

0.02391ms per 1000 Boolean contacts/coils

Time of Day Clock accuracy Maximum drift of ±2 seconds per day

Elapsed Time Clock (internal timing) accuracy ±0.01% maximum

Embedded communications RS-232. RS-485. Ethernet interface

Serial Protocols supported Modbus RTU Slave, SNP, Serial I/O

Ethernet Ports Embedded auto-sensing 10/100 Mbps half/full duplex Ethernet

interface

VME Compatibility System designed to support the VME64 standard ANSI/VITA 1

Program blocks Up to 512 program blocks. Maximum size for a block is 128KB.

Memory

(For a detailed listing of memory areas, refer to

the CPU Reference Manual, GFK-2222.)

%I and %Q: 32Kbits for discrete

%AI and %AQ: configurable up to 32Kwords

%W: configurable up to the maximum available user RAM

Managed memory (Symbolic and I/O variables combined):

configurable up to 10 Mbytes

Ethernet Interface Specifications

Web-based data monitoring Up to 16 web server and FTP connect

Release History

Catalog Number Date CPU Firmware Version Ethernet Firmware Version Comments

IC698CPE040-AA Dec. 2005 CPU: 3.60 Ethernet: 3.60 Initial Release

IC698CPE030-AA April 2006 CPU: 3.60 Ethernet: 3.60 Initial Release

CPU Functional Compatibility

Subject Description

Programmer Version

Requirements

Proficy™ Machine Edition Logic Developer PLC 5.5 SIM 6 or later must be used for

Release 3.60 new features.

C Toolkit Compatibility C Toolkit Release 3.50 Build 34A1 is required for new features in PACSystems Release 3.50

(Use of variables in C Blocks).

Battery Pack

Compatibility

The Auxiliary Battery Module (IC693ACC302A) must be used with the PACSystems RX7i

CPE030/CPE040 CPU for memory retention. The RX7i three-cell lithium battery pack

(IC698ACC701) cannot be used with the CPE030 and CPE040 CPUs.

Series 90-70 Expansion

Rack Compatibility

Series 90-70 expansion racks are supported by the PACSystems RX7i.

PACSystems RX7i CPUs and the RX7i Ethernet Module do not operate in a Series 90-70 rack.

Series 90-70 Main Rack

Compatibility

Series 90-70 Main Racks cannot be used in a PACSystems RX7i system.

PACSystems RX7i CPUs and the RX7i Ethernet Module do not operate in a Series 90-70 rack.

Series 90-70 Module

Compatibility

For a list of modules supported by the RX7i CPUs, refer to the PACSystems RX7i Installation

Manual, GFK-2223.

Insulating Strips for High

Voltage Modules

An insulator strip is required on a high voltage module that is installed to the immediate right of

a module with a metal faceplate. Insulating strips should be installed on the following modules

that have versions earlier than:

IC697MDL240D
IC697MDL640E

IC697MDL241D
IC697MDL340G

IC697MDL250G
IC697MDL341E

IC697MDL251E
IC697MDL350F

Note: Current versions of these modules are shipped with the insulators installed. The strip

is visible on the back of the printed wiring assembly. The RX7i rack is shipped with an Insulator

Kit that includes enough parts to update three Series 90-
