PAC8000 Remote I/O is a completely modular I/O solution for both general purpose and hazardous area applications. Based upon a carrier system, PAC8000 supports a wide range of modules and I/O functions, including intrinsic safety signals. An open architecture allows communication with a variety of different fieldbuses by selecting the appropriate type of Bus Interface Module

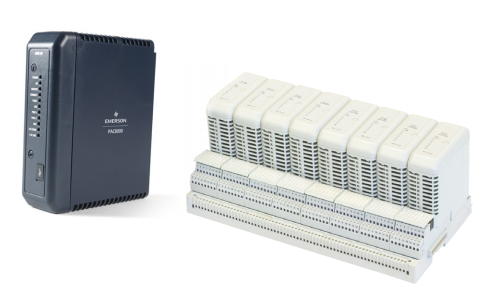

GE PAC8000 Remote I/O The Control for Industries
Designed to resist extreme temperatures,
humidity, corrosive materials, shocks, and
vibration, PAC8000 delivers full specification
performance in even the harshest environments.
In ATEX environments PAC8000 excels – all
components can be mounted and live worked in
Zone 2 / Division 2 and ATEX Zone 1 hazardous
areas. The I/O includes types that can be
connected directly to intrinsically safe (Exi)
or increased safety (Exe) field wiring.
PAC8000 Remote I/O integrates seamlessly with
PACSystems solutions and is connected via
PROFINET or Modbus TCP to RX3i and RSTi-EP
controllers.
Harsh & Hazardous Area Operation
PAC8000 can go where other products cannot. They can be
field mounted and subjected to the following:
n -40°C to +70°C operating range
n ISA Level G3 corrosion
n 30g shocks and 5g vibration
n Operation in Class I, Division 2 and Zone 2 hazardous areas
with I/O module field wiring including intrinsically safe (Exi)
and increased safety (Exe) options
n Supports UL HAZLOC C1D1 and ATEX Zone 1 hazardous areas
with I/O module field wiring including intrinsically safe (Exi)
and increased safety (Exe) options
HART Support
PAC8000 Modbus EBIM can provide HART data directly to
Emerson’s Asset Management System (AMS), allowing remote
configuration and access to field instrument diagnostic
information. PAC8000 can also acquire HART data for use in
the process controlapplication. HART devices may be selected
for regular status monitoring and alerts can be issued if the
status changes. This allows for reduced commissioning time,
reduced downtime, and reduced maintenance costs.
Specifications
Mounting Format
n DIN Rail
Network Interfaces
n PROFINET
n Modbus/TCP
Gateways / Bridges
n HART
Network Redundancy
n MRP
n Dual LAN
System Redundancy
n PNSR or Modbus/TCP
I/O Redundancy
n Dual
Media Support
n Copper & MM Fiber
Media Connector
n 2x RJ45 or 2x SFP
I/O Types
n 24 VDC,
n 115/230 VAC in
n 2-60 VDC,
n 20 - 265 VAC out
n Analog, RTD, Thermocouple
Specialty Modules
n Pulse Test (24 VDC)
n Pulse Input
n Sequence of Events (SoE) Inputs
n ASH Detector
Isolation
n Galvanic Isolation
n DI, DO, AI, AO
Hot Swap
n Yes
Environmentals
n IP20
n-40˚C to 70˚C
n Conformal Coat
n ISA Level G3 corrosion
n 30g shock
n 5g vibration
Agency Approvals
n UL
n UL HAZLOC C1D1
n CE
n ATEX Zone 1
n Intrinsically Safe
Marine
n Lloyd’s Register
