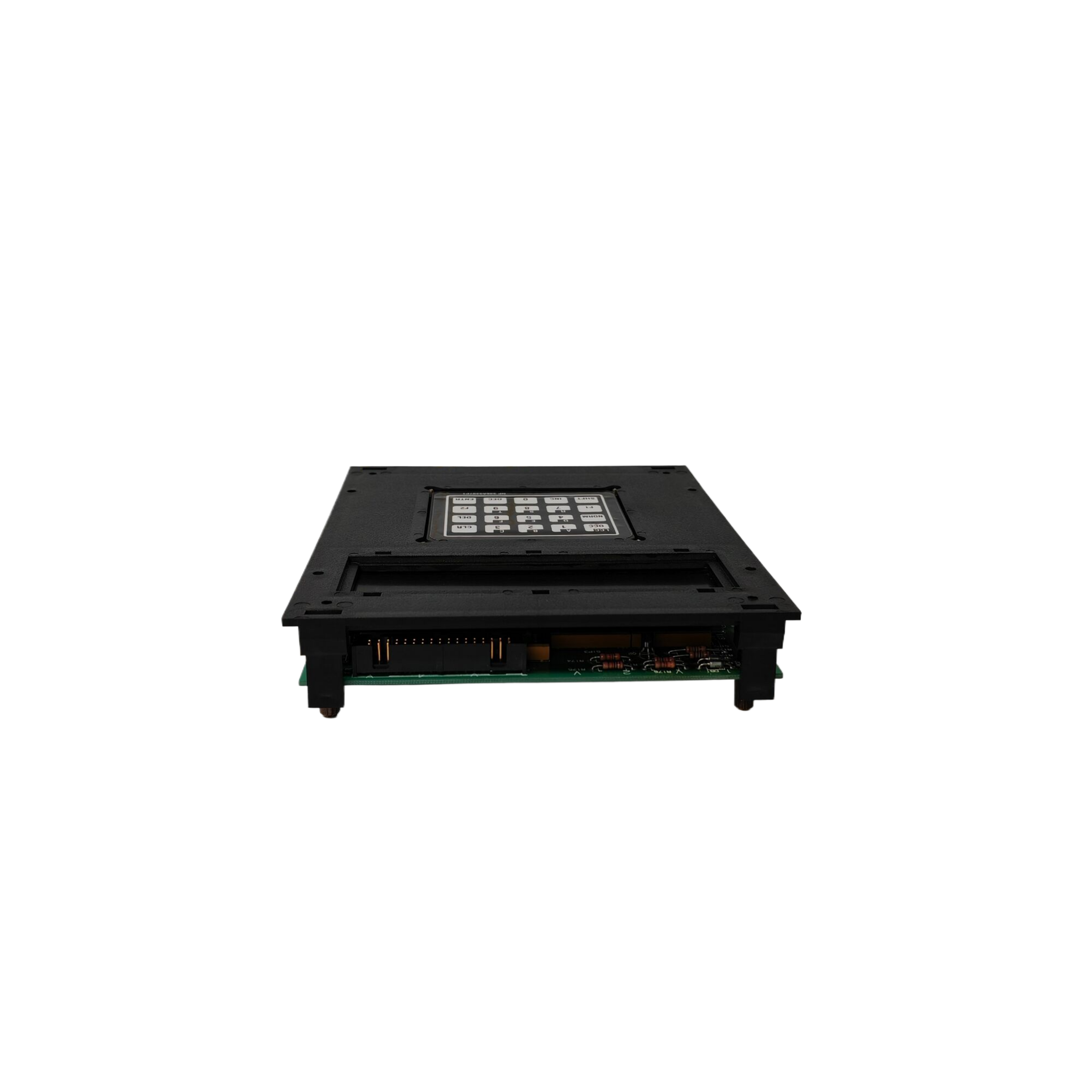

GE DS3820RDMA1 Industrial Control Circuit Board for Advanced Automation Solutions
Model:DS3820RDMA1 Category:Industrial Control Circuit Board Manufacturer:General Electric (GE) Type:Advanced Circuit Board Series:Mark IV DS3800 Dimensions:W x H x D 4.4 cm x 29.2 cm x 22.2 cm Weight:0.5 kg Operating Temperature Range:-20"C to +60"C Input Voltage:DC 5 V to 24 V Output Current:Max. 1 A Communication Interface:RS-485 Reliability Rating:Class A Certifications:CE, UL The GE DS3820RDMA1 Circuit Board is specifically engineered to deliver unparalleled performance in turbine control applications. This board is part of the renowned Mark IV DS3800 series, known for its reliability and efficiency in harsh industrial settings.
Featuring a robust design, it withstands the extreme conditions often encountered in power generation facilities, ensuring continuous operation without compromise. With its versatile communication interfaces, including RS-485 and CANopen, this circuit board facilitates seamless integration with a wide range of industrial equipment and control systems, enhancing overall system performance. Crafted from high-quality materials, the DS3820RDMA1 is built to last, offering long service life and minimal maintenance requirements. Its modular design allows for easy installation and replacement, streamlining maintenance processes.
Designed with user-friendliness in mind, the board includes comprehensive documentation and support resources, making it accessible to both novice and experienced engineers alike. It supports a broad spectrum of applications, from traditional steam turbines to modern gas turbines and beyond. The GE DS3820RDMA1 Circuit Board is a critical component for industrial automation systems, designed to enhance efficiency and precision in manufacturing processes.
Compatibility
ƒ Compatible with any Series 90-30 CPU except IC693CPU321 and IC693CPU340. Configuration size is limited for CPU311/313/331, as described on the next page.
ƒ Requires release 8.0 CPU firmware. The latest Release 10 is recommended, if available for the particular CPU.
ƒ Requires CIMPLICITY Machine Edition Logic Developer PLC version 3.0 plus the appropriate service pack or special (or a version later than 3.0).
ƒ Not compatible with the VersaPro™, Control, or Logicmaster™ programming software.
ƒ The Series 90-30 Hand-Held Programmer (IC693PRG300) cannot be used to configure this module. New Features The Series 90-30 DeviceNet Master Module allows a Series 90-30 PLC to send and receive I/O data from a DeviceNet network.
Module features include:
ƒ Support for all standard data rates (125K, 250K, 500K)
ƒ Support for 255 bytes input data transfer and 255 bytes output data transfer per slave
ƒ Support for 3972 bytes of input data transfer and 3972 bytes of output data transfer per master
ƒ Support for two I/O connections per Slave - Typically one connection is used for Polled and the other is used for Strobe, Cyclic, or COS
ƒ Support for Poll, Strobe, Cyclic and COS I/O Connections, Fragmented I/O and Explicit Messaging
ƒ Support for Unconnected Message Manager (UCMM) with 1 proxy connection per slave device
ƒ Support for configuration of the global scan rate
ƒ Support for configuration of update rates for Poll and COS/Cyclic on a connection basis
ƒ Support for PLC-application initiated explicit messaging via a COMMREQ
ƒ Master can be configured to operate as a slave simultaneously with master operation
ƒ Configurable fault behavior on loss of communication
ƒ Reports loss or reestablishment of communication with slaves in PLC fault table (configurable)
ƒ Support for 64 network device status bits (note: the bit for the master itself is always zero)
ƒ Firmware update via service port on module
