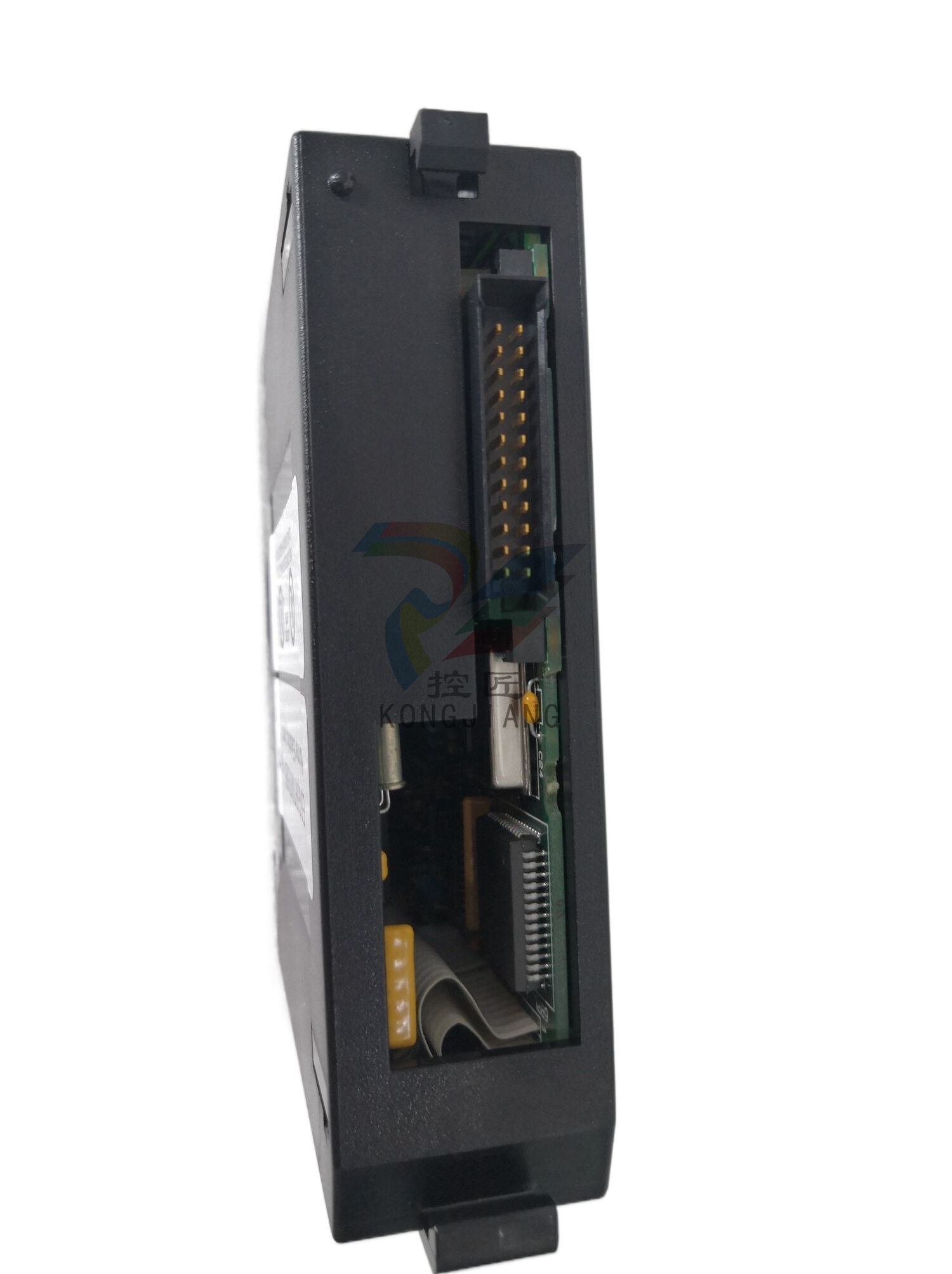

GE IS420YAICS1B High-Performance Analog I/O Module
Model:IS420YAICS1B Manufacturer:General Electric Type:Analog I/O Module Operating Temperature:-40"C to +70"C Power Consumption:10W max. Input/Output Channels:16 Input, 16 Output Communication Interface:Modbus RTU Relay Outputs:8 Switching Voltage Range:DC 12V to 28V Accuracy:+/- 0.5% of full scale Enclosure Type:IP20 Dimensions (mm):160 x 100 x 70 Weight (kg):0.6 Operating Conditions:Relative Humidity 5% to 95% non-condensing
The GE IS420YAICS1B Analog I/O Module is an essential component for modern industrial automation systems, ensuring precise data collection and efficient control over machinery and processes. Crafted from high-quality materials, this module is built to withstand harsh industrial environments, providing long-lasting performance and reliability. Equipped with advanced communication interfaces, the IS420YAICS1B seamlessly integrates with various control systems, enhancing system efficiency and productivity. With its wide operating voltage range and temperature tolerance, this module can be deployed in a variety of industrial settings, from manufacturing plants to power stations.
Featuring 16 channels for both analog input and output, it supports a broad spectrum of applications, from monitoring sensor data to controlling actuators. The IS420YAICS1B fast response time ensures minimal delays in data processing, enabling quick adjustments and optimization of operations. The GE IS420YAICS1B Analog I/O Module facilitates precise control and monitoring in industrial automation systems, ensuring reliable data exchange between sensors and actuators.
Features
Single-Slot Module
SNP/SNP-X Protocol (master, slave)
CCM Protocol (master, slave, peer)
RTU Modbus Protocol (slave only)
Supports connection to MS-DOS
or Windows
programming and configuration software package (monitor only)
12 Mhz, 80C186 Microprocessor
Two RS-422/RS-485 or RS-232 Serial Ports
CCM, RTU and SNP/SNP-X Available on Either or Both Ports
Simultaneous Communications on Both Ports (up to 9.6 Kbps, or 19.2 Kbps individually)
High Performance Access to PLC Memory
Three Status LEDs
Reset pushbutton
Soft Switch Configuration (no switches or jumpers)
No Battery Required
APPLICATIONS
• Simulation
• Instrumentation
• Industrial control
• Process control and monitoring
• Factory automation
• Intelligent networked PLC controllers
• Automated test
• Data acquisition
